IEM 11
The IEM 11 from Inovenso has the following features:
- Magnification up to 150,000x
- Combined SE and BSE images
- Low energy consumption
- Intuitive user interface
- High quality images (5 nm resolution)
- Easy navigation with the “navigation mode”
- Precise control with a joystick and the “driving mode”
Specifications
- Detector: SE Detector
- Stage: Auto Stage (X: 35 mmY: 35 mm,T: 0 to 45o) Manual Stage (Z: 5 to 50 mm)
- Image Shift: X, Y, R(Rotation)
- Operating System: Microsoft Windows 7
- Dimensions (mm): 400(W) x 600(L) x 550(H)
- Dimensions (inch): 15,74(W) x 23,62(L) x 21,65(H)
- Weight: 85(kgs) - 187(lbs)
- Magnification: x20 ~ x100,000 (Efficient: ~x50,000)
- Acc Voltage: 1 ~ 30 kV (1kV increments)
- Electron Gun: Tungsten Filament (W)
Removable BSE Detector
By applying 4-channel BSE detector, topography and composition functions are available. These functions are optional and can be opted out.
![SE: Composition Material: Alloy Metal](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-1.jpg)
SE: Composition
Material: Alloy Metal
![BSE: Topography Material: Alloy Metal](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-2.jpg)
BSE: Topography
Material: Alloy Metal
![Removable BSE Detector](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-3.jpg)
Low Voltage Analysis
Information on the morphology of a sample can be attained with voltage ranging from 1 to 30 kV.
![ACC.Voltage: 20 kV / SE Image / Mag: x50,000](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/Pp2-4.jpg)
ACC.Voltage: 20 kV / SE Image / Mag: x50,000
![ACC.Voltage : 5 kV / SE Image / Mag: x50,000](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-5.jpg)
ACC.Voltage : 5 kV / SE Image / Mag: x50,000

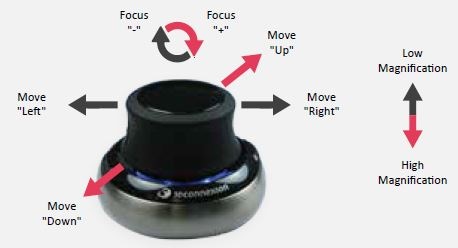

Driving Mode
2-axes stage motion, focus and magnification can be effortlessly motorized and controlled with the help of a joystick.
![Driving Mode](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-6.JPG)
Combined Signaling
BSE and SE can be detected together and separately.
![Combined Signaling](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-7.JPG)
Highest Resolution
Provides superior quality images (5 nm resolution, Max accelerating voltage: 30 kV).
![](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-8.jpg)
ACC. Voltage : 30 kV / SE Image / Mag : x100,000

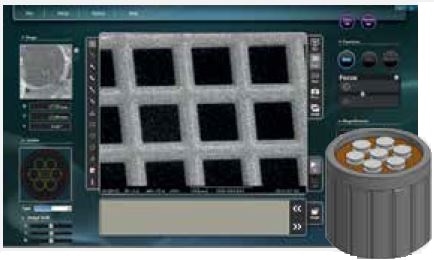

Driving Mode
By loading seven samples simultaneously into a multi holder, samples can be effortlessly located with a mini map, live display and a sample area.
![Driving Mode](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/Pp2-9.JPG)

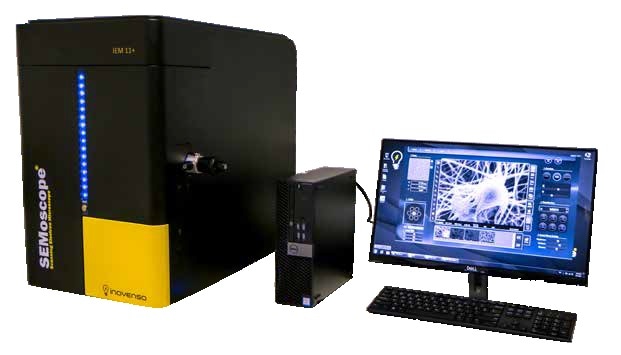

IEM 11+
The IEM 11+ from Inovenso has the following features:
- High quality images (5 nm resolution)
- Low energy consumption
- Intuitive user interface
- Magnification up to 150,000x
- Combined SE and BSE images
- Easy navigation with the “navigation mode”
- Precise control with a joystick and the “driving mode”
- Oxford: 130 eV at Mnk, C(6) ~ U(92) / EDAX:133 eV at Mnk, Be(4) ~ U(92)
![IEM 11+](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/Untitled1.jpg)
Specifications
- Detector: SE and BSE Detectors
- EDS: Oxford: 130 eV at Mnk, C(6) ~ U(92) EDAX: 133 eV at Mnk, Be(4) ~ U(92)
- Magnification: x20 ~ x150,000 (Efficient: ~x80,000)
- Acc Voltage: 1 ~ 30 kV (1 kV increments)
- Electron Gun: Tungsten Filament (W)
- Image Shift: Auto Stage (X: 35 mm, Y: 35 mm, T: 0 to 45o) Manual Stage (Z: 5 to 50 mm)
- Operating System: Microsoft Windows 7
- Weight: 95(kgs)- 210(lbs)
- Dimensions (mm): 400(W) x 600(L) x 550(H)
- Dimensions (inch): 15,74(W) x 23,62(L) x 21,65(H)
Brand: Oxford
- Multilingual operation
- Fast and easy analysis with flow chart style menu
- Tru-Q Analysis Engine: accurate result by multi algorithm
- Quantitative Mapping (QuantMap, QuantLineScan)
- Diverse element analysis functions: point and ID, line scan, mapping, line overlap and background correction
Brand: EDAX
- Highest performance SDD
- Sensor size: 30 mm2
- High quality light element analysis: Be(4) ~ Am(95)
- Diverse Element Analysis Functions: Point and ID, Mapping, Line Scan
Oxford

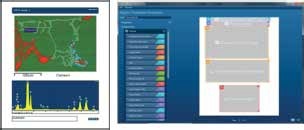

Report and Data Save
Different report templates are provided. Users can produce a report with the Report Generate function. Data can be saved, printed, copied and e-mailed directly.
![Report and Data Save](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/Pp2-10.jpg)
Available in Various Languages
The program is offered in different languages including English, Chinese simplified, Russian, French, Korean, Japanese and Portuguese.
![Available in Various Languages](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-11.jpg)
![Available in Various Languages](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-12.jpg)
LineScan
Linescan defines elemental concentration differences along a line defined by the users. Linescans are corrected for any false variations due to X-ray background and peak overlaps.
![LineScan](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-13.jpg)
Point and ID
Spectrum that displays elemental composition can be attained from multiple points and areas.
![Point and ID](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-14.jpg)
![Point and ID](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-15.jpg)
EDAX
Outstanding Light Element Performance
Silicon nitride window enhances performance for light elements at low energies.
![Outstanding Light Element Performance](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-16.jpg)
![Outstanding Light Element Performance](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-17.jpg)
EDS Reporting
The TEAMTM EDS Smart Data Management system for SEM attains new levels of flexibility and ease with simplified file management and dynamic reporting.
![EDS Reporting](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-18.jpg)
![EDS Reporting](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-19.jpg)
Fast, Efficient Results for Industrial Needs
All results can be reviewed anytime. Spectrum, quantitative mapping and microelement detection are construed accurately.
![Fast, Efficient Results for Industrial Needs](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-20.jpg)
![Fast, Efficient Results for Industrial Needs](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/PP2-21.jpg)
