Spotting Concrete Slurry Buildup using 3D Level Measurement

This article discusses the applications and challenges related to talc production and shows how 3D level measurement can be effectively used to detect concrete slurry buildup before it becomes problematic.

Image Credits: Awasada Kalayanamit/shutterstock.com

Milled Ore Silo

As an intermediate product, concentrate slurry is initially dried under pressure and stored prior to being processed into powder.

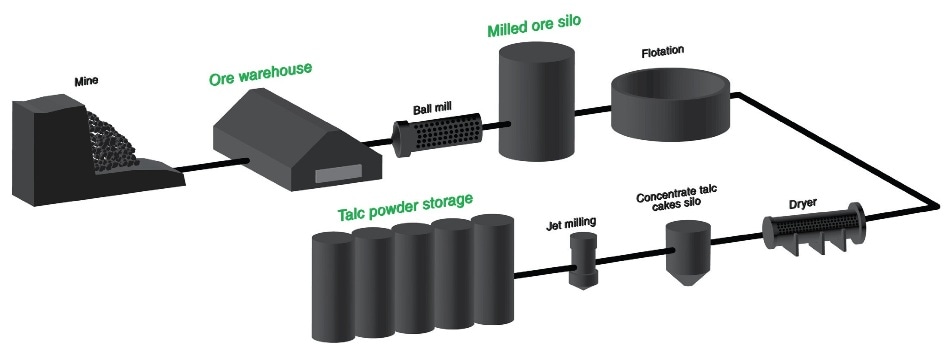

Figure 1. Talc production

Challenges

Concentrate slurry is kept in silos where it tends to stick to the silo walls, leading to material buildup and rat holes. This affects the end users’ inventory management and control capabilities to ensure an ongoing production process.

The 3DLevelScanner from BinMaster provides accurate, reliable, and real-time volume measurement of the concentrate slurry stored in silos. It also provides a 3D visualization of the distribution of material within the silo, enabling early detection of material buildup and allowing end users to schedule cleaning and maintenance activities in a timely manner.

This prevents unanticipated and unnecessary interruptions of the production upstream and the related losses in terms of time and money.

Figure 2. BinMaster 3DLevelScanner

Talc Powder Storage

The fine talc powder is the finished product and is kept in silos before being packed or delivered in bulk.

Challenges

During the filling and emptying processes talc powder creates excessive amounts of dust, promoting extreme dusty conditions within the silo. To meet delivery schedules as well as the plant’s inventory reporting needs that are fed into its ERP system, the end user has to accurately determine the amount of talc powder being stored.

The advanced dust-penetrating technology integrated in the 3DLevelScanner provides reliable, accurate, and real-time volume measurements of the talc powder even under adverse environments, and improves the end users’ inventory management and control capabilities.

Download the Brochure for More Information

This information has been sourced, reviewed and adapted from materials provided by BinMaster.

For more information on this source, please visit BinMaster.
