Optimize Component Life and Performance A natural choice for both electrical insulation and heat diffusion, CoorsTek ThermTile™ ceramic tiles and films serve the power generation industry and are used to lower the power chip’s operating temperature by dissipating heat build-up. These sinks and insulators extend component life and enhance performance.

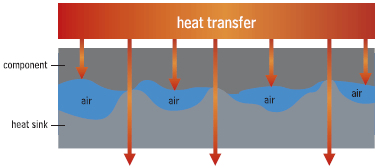

Figure 1. Heat transfer through component and air to heat sink
Figure 2. Heat transfer through component, phase-change material to ceramic heat sink Phase Change Thermal Management Material Because of CoorsTek innovative application techniques, this specialized phase-change material easily and effectively contacts the power chip, ceramic tile, and aluminum heat sink. CoorsTek’s extremely consistent material thickness coverage dramatically reduces seepage and bare contact situations over traditional application methods and optimizes heat dissipation performance while maintaining superior electrical insulation. Avoid Material and Labor Waste • Reduce expensive material waste with cleanly-applied phase-change material • Speed your assembly process dramatically with ready-to-assemble ThermTileTM packages • Phase-change material is solid at room temperature and easily handled in manufacturing and assembly environments • Mess and waste associated with traditional thermal management grease are eliminated Table 1. Alumna based material properties |
