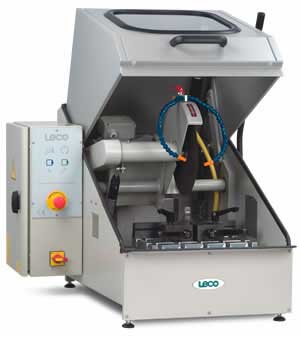

Figure 2. Leco MSX250 - benchtop
sectioning machine
MSX255M - Benchtop Sectioning Machine
MSX255M Models — Ideal for medium-sized sections like
automotive, ceramics, and composites; Automatic pulse feed rate with load
control; 12-inch blade capacity/5 HP motor
Features
·
Advanced spindle design offers long life and precise
sectioning
·
Welded steel construction for the production environment
·
Large T-slotted tables for flexible sample fixturing
·
Channeled coolant drainage provides high flow rates and minimal
debris build-up
·
Optional integrated Y-table for convenient parallel sectioning
·
Optional magnetic filter for ferrous environments
·
Isolated table design (X-axis) prevents contamination of linear
slides and spindle

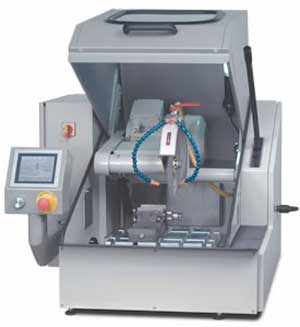

Figure 3. Leco MSX255M - Benchtop
sectioning machine
MSX300 - Sectioning Machine
Ideal for large sections, like induction parts,
throw-hardened, tool steels, and carborized pieces; The MSX300A Series
features automatic pulse feed rate with load control; while the MSX300R Series
provides you with a handwheel-driven table for longitudinal section and sample
position. Both offer 14-inch blade capacity and a 10 HP motor.
Features
·
Advanced spindle design offers long life and precise
sectioning
·
Welded steel construction for the production environment
·
Large T-slotted tables for flexible sample fixturing
·
Channeled coolant drainage provides high flow rates and minimal
debris build-up
·
Optional integrated Y-table for convenient parallel sectioning
·
Optional magnetic filter for ferrous environments
·
Isolated table design (X-axis) prevents contamination of linear
slides and spindle

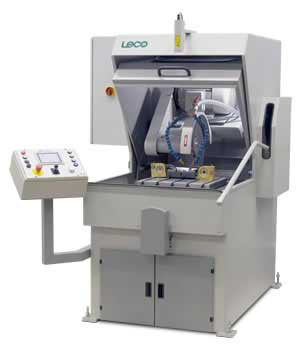

Figure 4. Leco MSX300 - sectioning
machine
MSX400 - Sectioning Machine
The MSX400 is ideal for sectioning extra large sections like
automotive, off-road construction pieces, axels, crankshafts, and calibers;
high-alloy and hardened materials; Adjustable depth-of-cut limit with auto
return; 17-inch blade capacity/20 HP motor.
Features
·
Advanced spindle design offers long life and precise
sectioning
·
Welded steel construction for the production environment
·
Large T-slotted tables for flexible sample fixturing
·
Channeled coolant drainage provides high flow rates and minimal
debris build-up
·
Optional integrated Y-table for convenient parallel sectioning
·
Optional magnetic filter for ferrous environments
·
Isolated table design (X-axis) prevents contamination of linear
slides and spindle

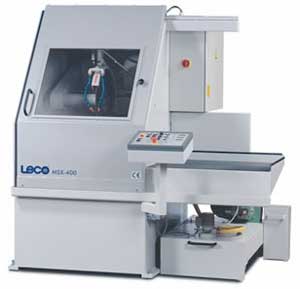

Figure 5. Leco MSX400 - Sectioning
machine
MSX432 - Sectioning Machine
The MSX432 is designed for sectioning large samples of high-alloy
and hardened materials. Short contact times per stroke, coupled with intense
cooling provide the cold-cutting effect required for structural examination.
Features
·
Advanced spindle design offers long life and precise
sectioning
·
Welded steel construction for the production environment
·
Large T-slotted tables for flexible sample fixturing
·
Channeled coolant drainage provides high flow rates and minimal
debris build-up
·
Optional integrated Y-table for convenient parallel sectioning
·
Optional magnetic filter for ferrous environments
·
Isolated table design (X-axis) prevents contamination of linear
slides and spindle

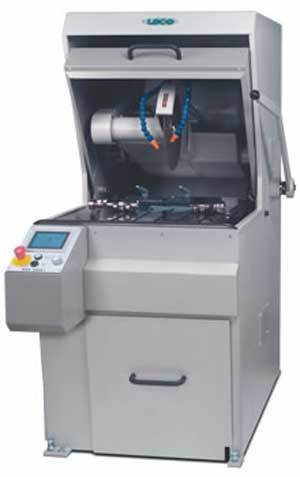

Figure 6. Leco MSX432 - Sectioning
machine
|
