Topics Covered
Epoxy Adhesives for Cryogenic Applications
Important Cryogenic Performance Requirements
High
Performance Epoxy Adhesives, Sealants and Coatings for Cryogenic
Applications
Most Popular Cryogenic Epoxy
Systems
Customized Packaging to Customer
Specifications
About Master Bond
Epoxy Adhesives for Cryogenic Applications
Select Master Bond for all your cryogenic
adhesive, sealant and coating applications. Master Bond
offer a wide variety of one and two component
epoxy systems and the technical expertise you need. Master Bond's
products are noted for being durable and reliable. Master Bond
provides personalized one to one support and our technical staff can recommend a
compound tailor made for your needs.
.jpg)
| Epoxies are the most widely used
polymeric materials for adhesives, sealants, coatings, pottings and
encapsulations and impregnants. They are available in both one and two
component systems. Two part systems can be cured at either room temperature
or elevated temperature. One part systems must be cured at elevated
temperatures (typically 250 - 300°F). One part systems curable by
UV light are also available.
|
Master Bond’s
range of epoxies require either ambient or elevated temperatures to cure.
They vary in viscosity, cure speed, flexibility, chemical resistance, electrical
properties, color, etc. They offer high physical strength and excellent adhesion
to similar and dissimilar substrates. Special grades are electrically conductive,
thermally conductive/electrically insulative, optically clear, NASA low outgassing
approved and mechanical shock resistant. Additionally, a formulation is available
called EP29LPSP that can withstand severe cryogenic shocks.
.jpg)
Important Cryogenic Performance Requirements
Master
Bond’s range of cryogenic epoxies are designed to meet specific performance
requirements. Among the most important are:
- Chemical Resistance
- Easily Repairable
- Excellent Adhesion
- Dimensional Stability
- High Temperature Resistance
- Impact Resistance
- Flame Resistance
- Low Thermal Expansion Coefficient
- Low Outgassing
- Low Shrinkage
- Low Stress
- Resistance to Water
|
- Peel Strength
- Durability
- Thermal Cycling
- Shock Resistance
- Thermal Conductivity
- Vibration Resistance
- Dielectric Strength
- Volume Resistivity
- Dielectric Constant
- Electrically Insulative
- Hardness
- Tensile Strength
|
High Performance Epoxy Adhesives, Sealants and Coatings for Cryogenic
Applications
Master
Bond’s range of cryogenic adhesives are designed to offer superior quality and
long term durability. They have earned a well deserved reputation for their
performance upon exposure to hostile environmental conditions. Select from a
wide range of systems conveniently packaged for ease of use. These compounds are
available in different viscosities, cure times, chemical resistances, electrical
properties, colors, etc. to best meet specific requirements. They are presently
employed in applications ranging from design and production to repair,
maintenance and field service.
.jpg)
Most Popular Cryogenic Epoxy Systems
Some of Master Bond's most popular cryogenic epoxy
grades include:
| Product |
Details |
| EP29LPSP |
Very low viscosity, two part, optically clear epoxy system.
Withstands exposure to cryogenic shock. High bond strength. NASA approved for
low outgassing. Requires minimum 135-150°F for curing. |
| EP21TCHT-1 |
Two part, room temperature curable epoxy system with a paste
consistency. Possesses excellent thermal conductivity and meets NASA low
outgassing specifications. Has a very low thermal coefficient of
expansion. |
| EP21TDCSLO |
Tough, silver filled, electrically conductive epoxy system. Has
very low volume resistivity. Cures at room temperature. Offers high peel and
shear strength. Passes ASTM 595 for NASA low outgassing. |
| SUPREME 10HTF |
Rapid curing version of our popular Supreme 10HT one part epoxy
system. Requires oven curing at 250-300°F. Excellent physical properties. Ideal
for thermal cycling. |

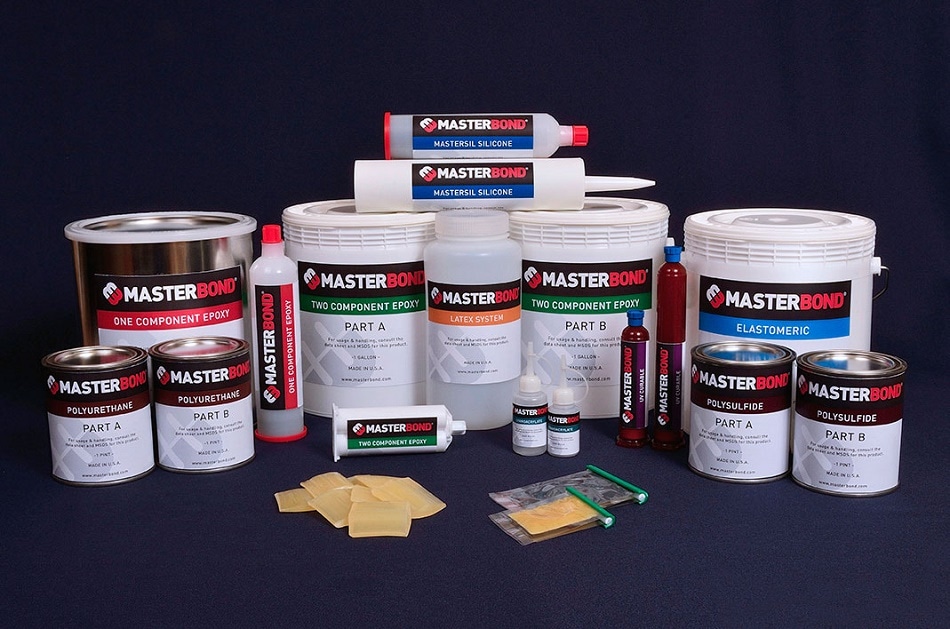

Customized Packaging to Customer Specifications
Master
Bond offer a wide array of packaging options to speed productivity, minimize
waste and save energy including:
- Quantities from grams to gallons
- Cans, bottles and jars
- Cartridges for manual and pneumatic guns
- Premixed and frozen syringes
- Bipaks for field service kit
.jpg)
About Master Bond
Adhesive
manufacturer Master Bond Inc offers over 3,000 different grades of
specially designed formulations. They differ in viscosity, cure speed,
temperature resistance, chemical resistance, strength, electrical properties,
color etc. These products are specifically designed to solve design,
manufacturing and repair/maintenance problems. They will increase productivity,
reduce waste, save energy and improve your products performance. They are the
perfect solution.
Source: Master Bond
For more information on this source please visit Master
Bond
