Introduction

Ceram is a global expert in materials analysis, research and quality testing, providing customised solutions and consultancy that help clients to measurably improve performance and profitability through safer, regulatory-compliant and better-engineered products. Setting new standards in materials testing, Ceram works as an extension of customers' teams, applying its expertise and capabilities to a wide range of sectors

Ceram has been working in partnership with R&D and production personnel in companies around the world for over 25 years. Using our expertise, experience and a comprehensive suite of advanced instrumentation we have been able to solve problems and create competitive advantage for our clients in the medical device industry.

Surface Analysis of Implanted Devices

The first encounter an implanted device has within the body involves its surface. Whatever mechanical or bulk-related attributes an implant has, it is almost certainly its surface properties that trigger the body’s initial, acute response. Utilising a range of techniques such as:

• X-Ray Photoelectron Spectroscopy including spectral, imaging, non-destructive and destructive profiling (XPS)

• Time-of-Flight Secondary Ion Mass Spectrometry including spectral and imaging (ToFSIMS)

• Dynamic Secondary Ion Mass Spectrometry including spectral, imaging and profiling (DSIMS)

• Scanning Electron Microscopy/Energy Dispersive X-Ray Analysis (SEM/EDX)

• 3D Non Contact Surface Profiling (3DP)


Surface Characterisation Services Offered by Ceram

Ceram can investigate issues relating to surface analysis such as:

• Stains
• Contamination including fibres and particulates

• Cleanliness Validation
• Packaging problems-delaminations and disbondments

• Migration and Leaching
• Coating Characterisation

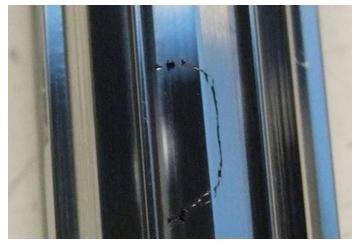

Stains and Contamination on Medical Devices

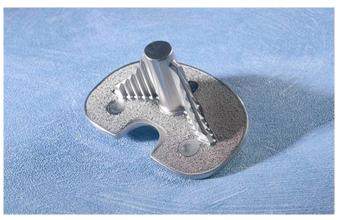

When stains and contaminants are found on medical devices production stops. A recent case involved an orthopaedic implant with a white mark. Using a multi-technique approach it was discovered that the mark was potassium and calcium rich in comparison with unmarked areas. Further physical investigation showed that the mark was due to a polishing failure. Results were reported within 8 hours, corrective action was taken and production re-started.

Implementing Cleanliness Validation

Ceram's ‘Validata’ service monitors cleanliness by setting a baseline with the customer and then analysing products at set intervals and relating them to the baseline. This system highlights problems before they become major production stopping issues. A medical device company who implemented ‘Validata’, analysing one product a month, reported that problems had been cut significantly.

Characterisation of Drug Eluting Stent (DES) Coatings

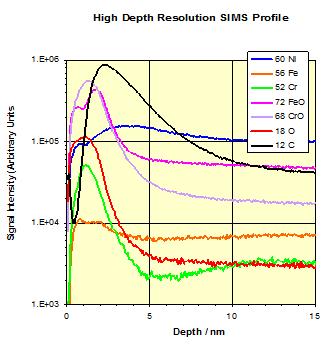

As medical device coatings are becoming increasingly complex the need to characterise the coating is becoming ever more important. One example of this is the drug eluting stent (DES). DES coatings are complex multi-layer systems. The need to understand not only the surface chemistry but also the topography and the layer composition is vitally important in the research and development of next generation products. Utilising high-resolution depth profiling layer systems can be characterised whilst sensitive ToFSIMS analysis provides detailed molecular composition. 3DP can provide topographical information such as surface roughness quantification.

Defect Analysis on Corroded Medical Devices

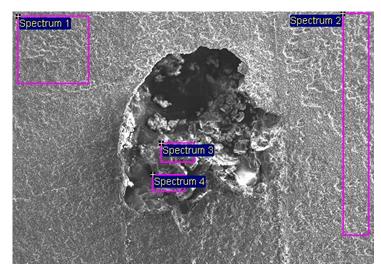

Defects can be a result of poor manufacture or corrosion. In order to eliminate defects it is important to characterise them. The defect pictured was recently analysed by SEM/EDX. From the high resolution image it can be seen that the defect is a corrosion pit. Chemical analysis showed an increase in phosphorous in the defect area. It was concluded that the phosphorous had not been removed during the cleaning of the device and that the residue had led to corrosion.

Chemical Imaging Techniques for Medical Fabric

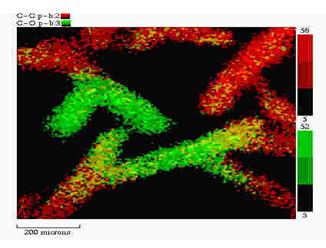

Whilst knowing what chemistry is on a surface is important in certain cases knowing where the chemistry is on the surface is more important. Chemical imaging techniques such as ToFSIMS and XPS can be used to image elements, oxidation states and molecular information. XPS imaging of a medical fabric highlighted where a protein adhesion inhibiting coating was located. As can be seen, the coating (green) is not uniform.
