Introduction

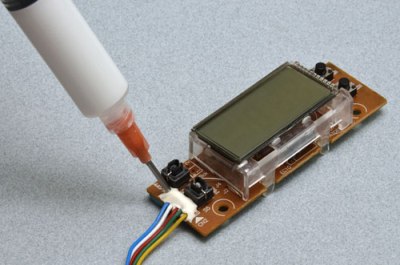

Two component, optically clear Master Bond MasterSil 149 is used for potting/encapsulation of voltage regulators, high voltage transformers and other electro-optic assemblies. Curable at room temperature MasterSil 149 has a low mixed viscosity of 4,000 cps. It protects assemblies from dust, moisture, ozone, thermal shock and mechanical vibration. MasterSil 149 is serviceable from -40°C to 200°C.
MasterSil 149 is a condensation curing silicone system. An “escape” path is required to allow for the release of non-hazardous byproducts formed during the mixing process which promotes completion of the curing cycle. MasterSil 149 has a mix ratio of 100 to 8.5 by weight. Cure speed can be accelerated by using heat.
.jpg)
Master Bond MasterSil 149 has a Shore D hardness of 20 and an elongation of >300%. Its volume resistivity is 2.5 x 1015 ohm/cm. Optically clear, MasterSil 149 has a refractive index of 1.403 and a linear shrinkage of <0.4%.
Master Bond two component silicone compounds are used in the electronic, optical, medical, electrical, oil/chemical processing industries. They are noted for their superior flexibility, thermal stability, and resistance to corrosion, vibration and thermal cycling. Grades include thermal conductive, electrical conductive and electrical insulative systems. Additionally, a USP Class VI biocompatible product is available for medical device assembly.
Applications for Master Bond Two Part Silicone Adhesives
Master Bond two part silicone adhesives provide high performance and cost effective solutions for a wide range of application requirements. Some of the most common include:
- Heat sink attachment
- Board coating
- Potting modules
- Lid and housing seals
- LED assembly
- Bonding and sealing appliances
- Component attachment
Cutting Edge Formulations
The Master Bond product line consists of advanced epoxies, silicones, polyurethanes, polysulfides, UV/LED cures and other specialty systems. Each compound is designed to meet specific application requirements. Master bond’s environmentally friendly systems are available in convenient packaging from small to large sizes.
Outstanding Technical Support
With years of experience in technical support, the Master Bond team will be able to assess your application and recommend the most suitable polymer system to meet your specifications. Master bond will continue to guide you throughout the design, prototype and manufacturing process. Master Bond offers replacements for discontinued products.
Latest Technological Advancements
As a worldwide manufacturer of polymer compounds, Master Bond is continuously working with universities and R&D labs to improve product performance. Master Bond products are designed to maximize productivity, reduce waste, save energy and for dependable, long term durability.
About Master Bond
Master Bond is a leading adhesive manufacturer offering high quality adhesives, sealants, coatings, and potting compounds. Master Bond’s product line consists of epoxy adhesives, polyurethane, silicone, cyanoacrylate and latex adhesives. Master Bond’s structural adhesives offer design flexibility and provide excellent bonding performance with a vast array of 3,000 custom designed adhesive formulations.
Adhesive properties differ in viscosity, cure speed, chemical and temperature resistance, strength, electrical and thermal conductivity. Specific adhesive systems can be designed to meet USP Class VI certification for medical use or NASA requirements for low outgassing. Master Bond products are successfully implemented in medical, optical, aerospace, electronic, and other hi-tech industries.
.png)
