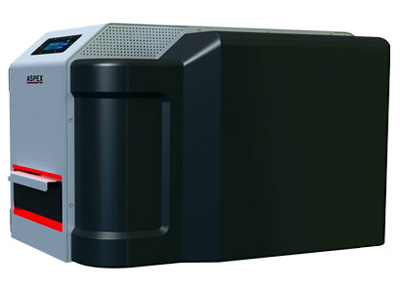

The PSEM
eXpress from Aspex
Corp is a benchtop personal scanning electron microscope (PSEM) equipped
with a Backscatter Electron Detector (BSED) and an optional Energy Dispersive
Spectrometer (EDS). The eXpress is smaller and more cost-effective than traditional
scanning electron microscopes. In addition it has a greater depth of field and
greater resolution than a traditional optical microscope.
The PSEM
eXpress quickly accommodates real-world specimens in a large sample chamber
with 80 mm x 100 mm stage travel, SDD-EDS capability, Variable Pressure option
(low vacuum analysis for minimal preparation) and a simple user interface. Comparable
in size to a laser printer, it detects particles from 100 nm to 5 mm with 25
nm resolution. The instrument is cGMP compliant and can be used to address quality
control issues in a variety of industries, including forensics, health sciences,
industrial automation, and metals.
The ASPEX
PSEM Express provides superior particle analysis capabilities at a price
you can't beat. It's clearly designed for "out of the lab" applications,
emphasizing speed, reliability and low cost of ownership while requiring no
liquid nitrogen. Employing a "design for use" philosophy, ASPEX
has created a tool with plenty of power to do your routine automated particle
analysis with unmatched ease, speed, and reliability.
Each PSEM
eXpress comes equipped with the Perception software suite, which provides
a powerful set of tools for microanalysis. Although it is very economically
priced, it still comes standard with an LN-free EDX spectrometer and is capable
of unattended automated particle analysis. When coupled with optional ASPEX
software such as AFA, or CFA it becomes a fully automated particle analysis
system - faster, and with greater accuracy and at a lower cost, than can be
achieved by other means.
Analyze the Unknown and Unseen with the PSEM
eXpress, it works in a broad spectrum of production-environment and laboratory
applications.
