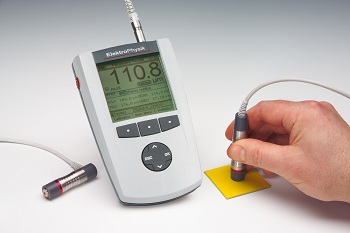

MiniTest 7400 Precision Coating Thickness Measurement Instrument from ElektroPhysik

Visit Website

Application

High-precision coating thickness gauge for

· Non-magnetic coatings, e.g. paint, enamel, chrome on steel

· Insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals

Depending on the coating to be measured, the substrate material and geometry, a wide range of interchangeable sensors with a measuring range of up to 35 mm is available in order to meet a maximum of measuring requirements. The sensors can easily be changed via a push-pull connection system. Furthermore, all sensors can optionally be ordered with a right-angle cable outlet allowing measurements of samples which are difficult to access such as tubes or hollow parts. For the use in rough and/or dirty environments, ElektroPhysik offers a special range of HD “heavy duty” sensors.

Up to 500 different measuring groups can be created by using the software Msoft 7 Professional or the configuration assistant of the gauge. The measuring groups are memorized in a freely selectable configuration of directories and subdirectories which can additionally be named alphanumerically.

Performance features

· High precision coating thickness measurement up to 35 mm / 1380 mils

· Measuring range: 0...35 mm on steel (F-sensors),

0...7 mm on non-ferrous metals (N-sensors)

· Increased accuracy and reproducibility achieved by sensor integrated digital signal processing (SIDSP)

· Universal sensor with automatic substrate detection allows fast measurement on steel and non ferrous metals

· Wear resistant sensors of practically unlimited lifetime

· Optimized temperature compensation

· High precision characteristic curves with up to 50 data points

· Storage for up to 250000 values in 500 data memories

· Infrared data transmission (IrDA) to PC and printer
