Introduction

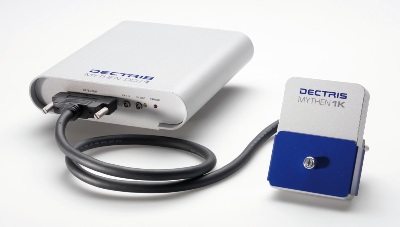

The Mythen 1K from DECTRIS offers high speed and superior data quality for a
variety of challenging X-ray diffraction applications. It is a one-dimensional silicon strip detector that works using single-photon counting mode.
Salient Features
Exclusive features of Mythen 1K are:
- Is compact
- Has a high frame rate
- Has a high capture angle
- Is a ready-to-use system
- Air-cooled system
- Simple operation and handling
- Comprehensive system with its own detector and detector control system – Currently three different detector control systems are provided by DECTRIS
- Large multi-detector system can be formed by combining 24 detectors, so as to facilitate coverage of large angles
- Exceptional capabilities across all DECTRIS detector systems
Technical Specifications
The technical specifications of Mythen 1K are:
| Sensor |
Reverse-biased silicon diode array |
| Sensor thickness |
320 mm |
| Strip size |
50 mm |
| Format |
1280 strips |
| Active area |
8 x 64 mm2 |
| Dynamic range |
24 bits (1:16,777,216) |
| Counting rate per pixel |
> 2 x 105 per strip ( for 8 keV; standard gain settings) |
| Energy range |
5 - 30 keV |
| Quantum efficiency (calculated) |
5 keV: ~ 90%
8 keV: ~ 96%
15 keV: ~ 49%
30 keV: ~ 8% |
| Adjustable threshold range |
5 – 20 keV |
| Readout time |
0.3 ms |
| Framing rate |
25 Hz (24 bit)
300 Hz (16/8 bit)
600 Hz (4 bit) |
| Cooling |
Air cooled |
Power consumption |
5 W |
| Dimensions Detector (WHD) |
~ 72 x 100 x 25 mm |
| Dimensions DCS1 (WHD) |
~ 200 x 180 x 50 mm |
| Weight |
~ 400 g |
Applications
The applications of Mythen-1K are:
- X-ray diffraction
- Phase analysis
- Time-resolved experiments
- Non-destructive testing
- Powder diffraction
- Texture and thin film analysis
