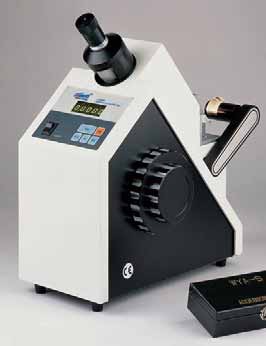

Features of Digital ABBE Refractometer “WYA-2S”
The key features of the digital ABBE Refractometer are:
- Has an optical system made of a telescope with dispersion correction, which is used for defining the dividing line between dark and bright areas
- Has accurate optics with automatic temperature compensation displayed as °Brix and sample temperature
- Has stabilized temperature connection for a water bath
- Has RS-232 output with included software
Measuring Range
- Refraction index hD: 1.3000 - 1.7000
- Brix Bx - TC: 0 - 95%
- Brix Bx: 0 - 95%
Applications
The Digital ABBE Refractometer “WYA-2S” is ideal for measuring the refractive index of liquids, solids and sugar concentrations (° Brix). It can be used in various industries such as food, chemical, petroleum, pharmaceutical, universities and research.
Model
| Part No. |
Height |
Width |
Depth |
Power |
Weight |
|
(exterior) cm |
supply |
Kg |
| 5901007 |
38 |
18 |
33 |
220V ±20V 50Hz |
10 |
Measurement Scale Definition
- Refraction index hD: ± 0.0002
- Brix Bx - TC: ± 0.1%
- Brix Bx: ± 0.1%
Temperature
- Working range: 0 - 50 °C
- Correction range of Bx, in respect to temperature: 15 - 45 °C
Additional Components
The additional components are:
- Dust cover
- Maintenance box comprising
- 1 bottle of Naphthalene Bromide
- 1 calibration standard
- 1 Hex key
- 3 lamps 6.3V, 0.25 A.
- 3 fuses 1 A.
