Introduction
Scientists and engineers globally use ADwin systems for Real-Time applications
where deterministic timing is required. ADwin programmable data acquisition and
control systems allow many different types of applications to run with accurate Real-Time performance. This makes ADwin a universal platform, which is suitable for a number of different types of
functions, applications and industries.

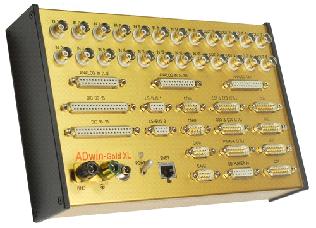

Product Overview
The salient features of the system are:
- 16 Analog Inputs, 18-Bit, 2 ms ADC
- 2 Analog Outputs, 16-Bit (optional expansion to 8 outputs)
- 32 Digital I/O's, TTL/CMOS Compatible
- 1 Trigger Input - TTL/CMOS Compatible
- Integrated Ethernet Communication Interface
- ADSP21062 DSP CPU - 32-Bit, 300 MHz, 768 kB CPU RAM
- Optional TICO co-processor
- Robust and Compact Metal Enclosure
- BNC and Dsub I/O connections
- Optional counters, CAN, Serial Interface, Web Server
The Real-Time Functions of the system are:
- Intelligent data acquisition
- Complex trigger applications
- Online analysis of measurement data
- Open-loop control functions
- Closed-loop control functions
- Signal/Waveform generation
The fields of application are:
- Production and R&D test stands
- Production line automation systems
- Laboratory and mobile systems
- Fast machine control applications
- Material endurance tests
- Quality assurance tests
The Typical applications in industry include:
- Automotive and Aerospace
- Semiconductor and component testing
- Machine builders
- Scientific and Industrial Research
- Nano-Science
- Laser and Electron Beam Industries
ADwin has a large amount of experience in automation and deterministic Real-Time
applications. With software solutions from the year 1987, and with ADwin hardware
sytems since 1992, a large number of users and applications worldwide, rely on
these precise and robust systems. ADwin offers standard hardware and software,
developed by experienced engineers, produced in our high-tech production
lines. For very specialized applications, customized hardware or software turnkey solutions are also available.
