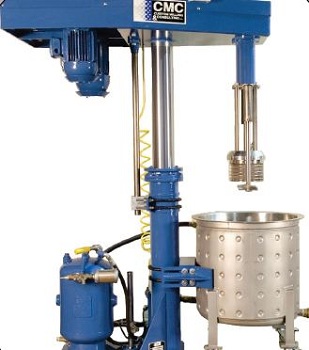

The BATCH MILL is used where rapid changeover between
colors, formulas
and product types are standard operating procedure for your business.
This media batch mill is uncomplicated and designed with the
operator
in mind. The operation is very similar to traditional high speed mixers
and is perfect for continuous 24/7 operation. Custom Milling &
Consulting, Inc., Fleetwood, PA, is proud to offer a machine that is
easy to clean with low operational and maintenance costs.
- Heavy-duty lift and bridge with chemical resistant epoxy coating
- Large sealed-for-life bearings for maintenance free operation
- All stainless steel wetted construction (ceramic, urethane and
plastic available)
- Proven inverted CMX wedge wire basket in a variety of slot
openings
- Air-over-oil lift system provides easy transition between batches
- Water manifold to control cooling water flow to jacketed mix tanks
- PLC controlled operator interface with remote monitoring
capability
Technical Specifications
Model
|
Batch
|
Motor (HP)
|
Machine Basic Dimensions (inches)
Excluding Tank
|
(Gallons)
|
Milling
|
Mixing
|
Width
|
Length
|
Heigh Lowered
|
Height Raised
|
100
|
2
|
2
|
1
|
25.5
|
25.25
|
60.75
|
N/A
|
184
184 Plus
|
15
30
|
5
|
2
|
28.75
|
55.25
|
51.25
|
79.25
|
216
216 Plus
|
30
50
|
10
|
5
|
29.25
|
63.25
|
58.25
|
93.25
|
256
256 Plus
|
50
165
|
20
|
10
|
31.75
|
71
|
68.25
|
113.25
|
370
370 Plus
|
165
250
|
30
|
20
|
39.25
|
93
|
78.75
|
132.75
|
438
438 Plus
|
250
450
|
50
|
30
|
45.25
|
107
|
102.25
|
164.25
|
604
604 Plus
|
700
1100
|
75
|
50
|
58.25
|
132
|
114
|
188
|
