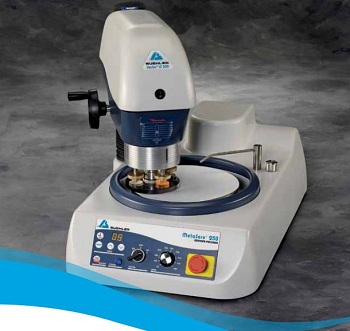

Metaserv 250 Grinder-Polisher from Buehler
The MetaServ® 250 single and twin grinder-polishers
offer a combination of performance, economy and reliability for most
microstructural analysis applications. Designed for manual or
semi-automatic grinding and polishing, the base can be combined with
one of two power heads. The molded protective housing provides long
lasting corrosion and impact resistance. Each bowl includes a removable
splash guard reduces overspray and allows easy access to the platen. A
built-in drain and bowl wash flush out particles and minimize build-up
of grinding-polishing debris. The adjustable water flow nozzle can be
positioned anywhere over the platen, providing cooling precisely where
needed.
All base models include an easy-to-use control panel with quick
access to power on/off, platen run/pause, digital up/down timer and
reset, water on/off/run-active control, variable platen speed control
from 50 – 500 rpm, and an emergency stop. In addition to the emergency
stop button, other safety features include built-in circuit protection
and low voltage controls.
Transform the MetaServ® 250 Single or Twin Grinder-Polishers to a
semi-automatic operation with the addition of a Vector® LC 250 Power
Head. An easy to operate, economical power head with basic single
sample operation, improves specimen consistency for low volume
applications. Pressure can be set individually for each of the
1-4 sample via mechanical loading. An analog pressure display and
power switch are easily accessed on the front of the power head.
MetaServ® 250 Single Grinder-Polisher
The MetaServ® 250 Single Grinder-Polisher and Vector
Power Head is a semi-automatic system providing both single and central
force modes. While the single force mode provides preparation
flexibility, central force provides superior specimen flatness. The
control panel located on the front of the power head includes a digital
timer, digital force control, complimentary or contra rotation
selection, water control, and on/off control of the PriMet dispenser.
This option must be purchased as a system.
Burst® Dispensing System
The optional Burst® Dispensing System can be connected to the
MetaServ® Grinder-Polishers for semi-automatic dispensing during
preparation. Using a peristaltic, non-misting pump, the
Burst® dispenser applies lubricant, diamond or final polishing
suspensions to the platen, offering repeatable results regardless of
the operator
