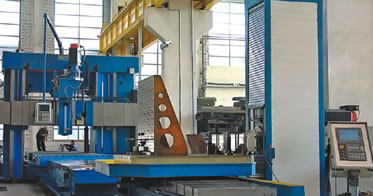

The TTHBM CNC Series table type horizontal boring and milling machines are designed to process middle size prismatic work pieces made of cast iron, steel, aluminum or other materials. The work pieces can be machined by the same clamping on four or five surfaces by the following rough or finish operations: boring, milling, threading, drilling, counter boring.
Standard Features
-
3D design for custom made machine
- Quality cast iron parts to avoid vibration
- Hardened and ground ways, box or steel inserts
- Counter ways with anti friction material
- Ballscrew all linear axis
- SKF, FAG high precision bearings
- Choice of Fanuc, Siemens, Heidenhain control
- Heidenhain linear and rotary scales
- Automatic tool clamping
- Automatic lubrication system
- Coolant trough spindle
- Choice of hydraulic elements
- Fanuc, Siemens AC servomotors
- Fanuc, Siemens, Heidenhain PLC and electric
- Motorized spindle with ZF gearbox and AC motors
- Telescopic cover for X, W -axis
Optional features
-
Automatic tool changer 40/60 position
- Facing head
- Vertical milling head
- Universal head
- Stiffening device
- Angle fixture
- Spindle bearing support
- Chip conveyor
- 2-axis CNC head
- CNC facing head
