Catalyst characterisation, kinetic and thermodynamic measurements

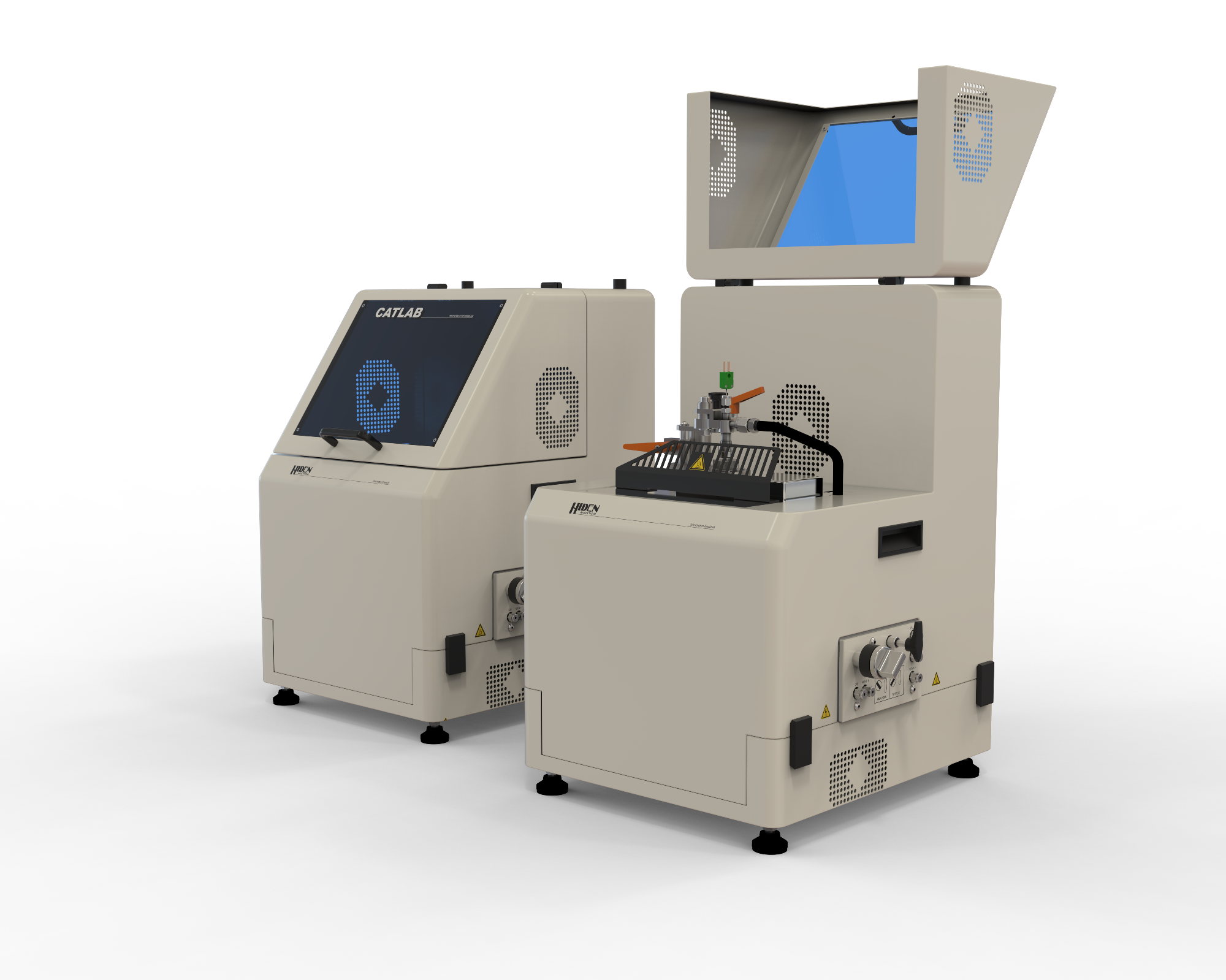

The Hiden CATLAB is a bench-top microreactor and combined mass spectrometer system for rapid and reproducible catalyst characterisation and reaction studies. The microreactor and mass spectrometer are delivered as a complete system from a single manufacturer, unique to the industry, ensuring optimum analysis via seamless hardware and software integration.
The modular design further allows both instruments to operate as stand-alone components so they may be interfaced with existing laboratory equipment such as TGAs or TCDs.
The Hiden CATLAB delivers a range of completely automated, dynamic, temperature programmed, pulse chemisorption and isothermal techniques. Recipe driven CATLAB software provides automatic control of gas composition and delivery, temperature ramp and set-point as well as full mass spectrometer parameter controls - a true first for the catalyst researcher. The standard system has 0-200 amu capability with options extending this to 1000 amu.
The Hiden CATLAB is a catalyst characterisation system designed to make the analysis of catalysts rapid and simple.
Features of the Hiden CATLAB include:
-
Pulse Chemisorption
-
TPD, TPO, TPR, TP-Reaction
-
Catalyst Screening
-
On-Line continuous product analysis
-
Metal Surface Area
-
Active Surface Area
-
Reaction Kinetics
-
Mechanisms of Surface Reactions
-
Heats of Adsorption

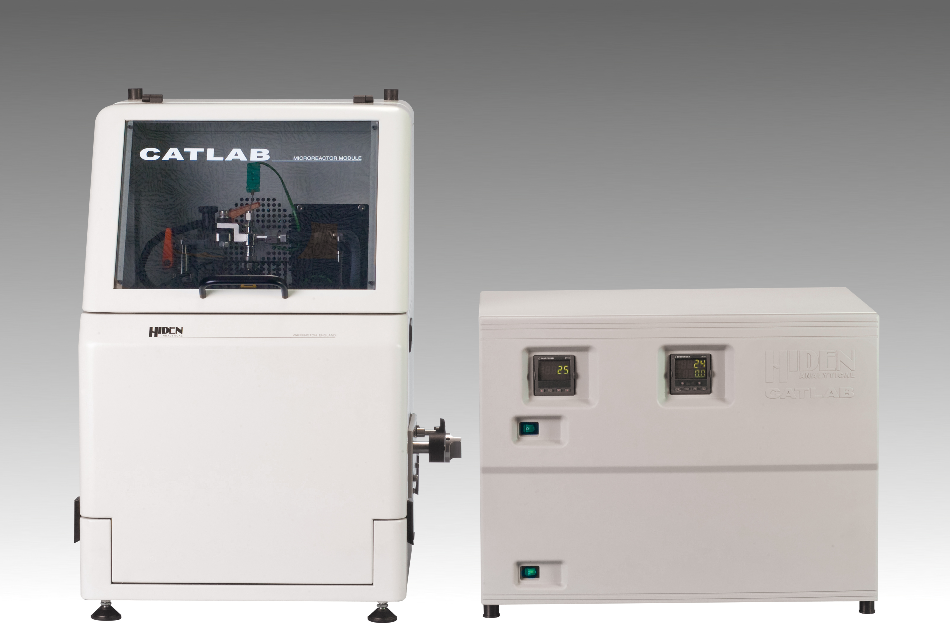

The CATLAB-PCS microreactor module for the combined roles of catalyst characterisation and rapid, reproducible screening of catalyst activity, featuring:
-
Fast response, low thermal mass furnace with integrated air-cooling.
-
1-20 �C / min heating rates up to 1000 �C.
-
Hiden�s unique interchangeable Catalyst Cartridge System.
-
Close-coupled hotzone evolved species probe & direct QIC inlet for <500ms response.
-
�In-Bed� thermocouple for direct catalyst temperature measurement.
-
Automatic 2-8 gas stream manifold or combined gas / vapour manifold.
-
Independent Mass Flow control of each channel at 3-100 ml / min.
-
Corrosion resistant manifold configurations also available.
-
Seamless on-line, real-time studies with data acquisition and PC analysis.
-
Air thermostat and trace heating to minimise condensation of liquid feeds / products.
-
Shut-off / bypass flow configuration to seal reactor and gas sampling port.
