Hiden Compact Gas Analyser for Less Demanding Applications

Hiden Compact Gas Analyser for Less Demanding Applications

The Hiden Compact Gas Analyser has been designed for less demanding applications, and is offered with globally designated product names. The names of the product have been chosen locally, and reflect the choice of Hiden’s local offices worldwide.

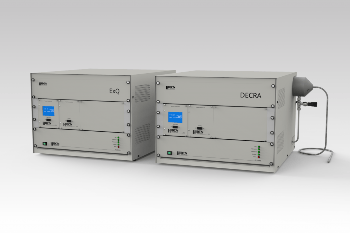

  • ExQ for USA, Europe and Global Export
  • DECRA for China

The Compact Gas Analyser is similar to the Hiden QGA system. The compact system includes an integral membrane pump backing/by-pass pump instead of the external scroll pump.

The Hiden gas analysis systems are provided with a sample inlet system, vacuum pumping system and a quadrupole mass spectrometer. These are carefully selected for optimum performance for specific applications.

The membrane pump combination used in the compact gas analysis systems is recommended for less demanding applications where fastest speed of response, light gases and analysis of corrosive gas mixtures are not included in the scope of the analysis prerequisite.

Applications

The main applications of the Hiden Compact Gas Analyser are as follows:

  • Fuel cells
  • Mud logging
  • Fermentation
  • High purity gas analysis
  • Gas separation studies
  • Gas production and storage
  • Environmental monitoring

Features

The key features of the Hiden Compact Gas Analyser are as follows:

  • An integral membrane pump backing/by-pass pump is provided instead of the external scroll pump
  • The membrane pump combination used in the compact gas analysis systems is proposed for less demanding applications where fastest speed of response, light gases, and analysis of corrosive gas mixtures are not included in the scope of the analysis prerequisite
  • The vacuum pumping system, sample inlet system and quadrupole mass spectrometer included in the analysis systems are carefully chosen for optimum performance for specific applications

Software

The Hiden Compact Gas Analyser is supplied with QGA Professional and MASsoft Professional software. This software is compatible with Windows 8 and Windows 10 and allows control of the instrument via RS232, USB 2.0, or Ethernet. It offers full I/O for data output and for reading data from external devices for integration and display with mass spectrometer data.
