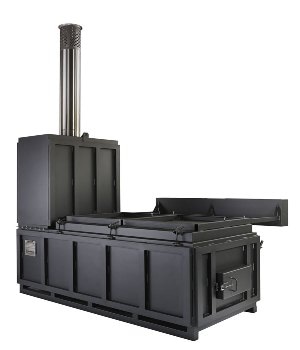

The I8-250 model from INCINER8 is a large scale incinerator. This controlled air incinerator provides optimal combustion conditions for varied waste types.
The model’s top loading design provides liquid retention that makes this incinerator suitable for incineration of a wide range of waste types. The I8-250 model obtains benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time
Emission Data
Average emissions/EU standards On basic incinerators (with secondary chamber)
| Parameter |
Limits (1/2 hr av) |
Measured |
| Total dust |
30 mg/m3 |
12 mg/m3 |
| Sulphur dioxide |
200 mg/m3 |
2,4 mg/m3 |
| Nitrogen dioxide* |
400 mg/m3 |
60 mg/m3 |
| Carbon monoxide |
100 mg/m3 |
78,3 mg/m3 |
Typical General Waste Applications
- < 1500 People communities
- Industrial waste < 2000 kg day
- Universities
- Remote housing
- Bigger camps
Additional Information
Options
Extras
- Pollution control systems
Technical Specifications
| Operational Specifications |
| Combustion Chamber Volume (m3) |
2.40 m3 |
| Burn Rate* |
up to 6220 kg per hour |
| Average Fuel Consumption |
25 - 30 ltrs p/h |
| Operational Temperature |
> 850 °C |
| Gas Retention in Secondary Chamber |
2 secs |
| Temperature Monitoring |
Yes |
| Average ash residue (%) |
3% |
| Thermostatic Device |
Yes |
| Physical Specifications |
| External Length (mm) |
3590 mm |
| External Width (mm) |
1390 mm |
| External Height (mm) |
4640 mm |
| Door Size (mm) |
2530 x 1660 |
| Shipping Weight |
8000 kg |
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
