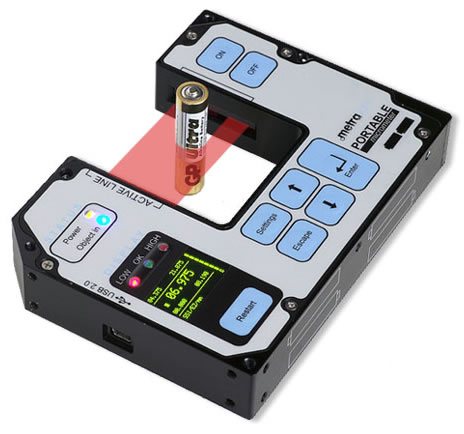

Standard Measurements of EDGE, GAP, DIAMETER, POSITION, THICKNESS, HEIGHT, PROFILE and VIBRATION. World's smallest laser micrometer.
- Handheld inovation in non-contact measurement
- Battery powered (runs from 4 AAA batteries – up to 3.5 hours, or USB powered)
- Measures Objects up to 28 mm
- Ultra Portable (130.8 x 96.5 x 21.6 mm)
- Fast measurement and High Accuracy (>2500 meas./s, Resolution: 0.4375 µm, Repeatability <3 µm, Non-Linearity <5 µm (Edge)
- Intuitive User Interface, (OLED Display, Membrane Keyboard, Low, OK, High, Power, Object In LEDs, USB 2.0)
- Real Time Clock and Data Logging (RTC module for specific measuring tasks, 64 MBit for Data Logging)
- Laser device (Laser Diode 670 nm Class II)
- Custom Modes are available Centering, Minimum measurement, Maximum measurement, Thickness, Range of Tolerances
- Easy Installation (sample Application with source code for PC, macro for Excel)
- Custom Interface available (Analog, Parallel, RS232, SPI, ETHERNET)
