Compact bench top analysis system for evolved gas analysis
-
Coupling to TGA
-
Wide range of TGA interfaces
-
In-Situ analysis
-
EGAsoft - TA-MS software
-
Environmental Gas Analysis
-
Thermal Analysis Mass Spectrometry
-
Catalysis Studies / Reaction Kinetics

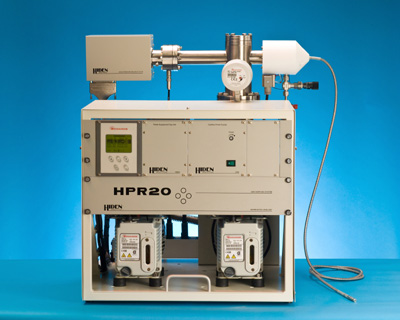

The HPR-20 QIC EGA gas analysis system is a compact bench-top gas analysis system for evolved gas analysis:
-
Robust, flexible, heated (up to 200°C) Quartz Inert Capillary (QIC).
-
QIC direct inlet for <500ms response to gases / vapours.
-
Continuous sampling of 1-20 cm3 / min from 10 mbar to 2 bar.
-
Wide range of TGA adapters available.
-
High pressure sampling interface to 30 Bar available.
-
Automated Flow Control Interface for constant ion source pressure.
-
Liquid Nitrogen cryopanel for enhanced pumping of condensables.
-
High Sensitivity (to 5 ppb), mass range to 510 amu.
-
Soft Ionisation for the analysis of complex organics.
-
Stability (less than ±0.5% height variation over 24 h).
-
MASsoft control via USB 2.0, RS232 or Ethernet LAN.
-
Quantitative analysis methods.
-
EGAsoft PC software with real time 3D data plotting, and data analysis.
