High-Voltage Feedthroughs in UHVs

High-voltage electrical feed-throughs are used extensively in high vacuum and UHV settings, allowing the transmission of high voltages both into and out of hermetically sealed chambers without reaching a point of possible pressure loss caused by the entry of atmospheric gases.

This article discusses Allectra’s high-voltage feed-throughs, together with their significance and uses.

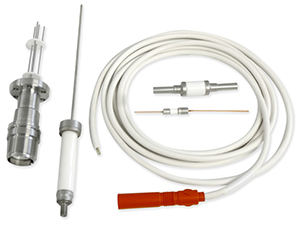

HIgh voltage feed-through equipment

Significance of High-Voltage Feedthroughs

High-vacuum settings range from about 10−5 to 10−9 mbar. To realize this pressure system, it is essential to empty the chamber of all but residual gaseous molecules. A range of pumps is needed to efficiently empty the chamber since collisions between these molecules and the walls of the vacuum chamber control the pressure system.

A standard vacuum pump is used to exhaust the bulk of the gases. When the high vacuum process starts, however, a second pump is needed to remove residual molecules once they enter the pump aperture.

The conditions of an ultra-high vacuum (UHV) are much more drastic compared to the above and extend in almost completely dry conditions above a pressure of 10−9 mbar. This pressure range is on an order of trillionths of the atmosphere. Hydrogen (H2) mainly remains in UHV conditions while water molecules remain in high-vacuum processes. This is due to the lightness of the gas and high mobility.

To realize high purity vacuum conditions of more than 10−9 mbar, specialized UHV pumps and bakeout are necessary.

The backing of several pumps and hermetically sealed processing chambers is needed to realize the high-vacuum and UHV conditions since it is an energy-intensive process. Voltage feed-throughs are essential to modify process conditions in real-time without sacrificing the integrity of the vacuum.

Based on the chamber architecture and application requirements, the designs of high-voltage feed-throughs can differ considerably.

Allectra’s Range of Voltage Feedthroughs

Allectra can offer a wide range of voltage feed-throughs for high-vacuum and UHV processing, such as:

  • Coaxial, Safe High Voltage (SHV) Feedthroughs offer the choice of either exposed or recessed ceramic on the vacuum side and an option of 5 or 6 kV signals. The SHV20 is rated for 20 kV and the SVH10 is rated for 10 kV.
  • MIL-C-5015-compliant MS Circular Socket high-voltage feed-throughs including multiway pins, provided with 7.5, 10, 23, or 40 A per pin.
  • Power Glove high-voltage feed-throughs, which have air-side cables and sockets. There are many design options available for Allectra’s Power Glove feed-throughs, with voltage ranges of 5, 10, 20, and 40 kV. Options for several pins and different flange types are available, which improve the product’s applicability.
