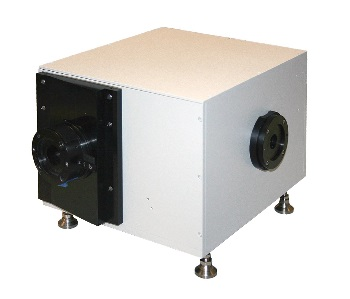

TRIAX 180 Compact Imaging Spectrometer from HORIBA

The TRIAX 180 imaging spectrometer available from HORIBA Scientific is a compact instrument that delivers complete automation and high throughput solutions. The system features an interchangeable triple grating turret that can be modified to suit present experiments, and simultaneously allows users to eliminate expensive installation charges when upgrading with supplementary triple grating turrets for future experiments. This cost effective instrument, combined with unprecedented performance, flexibility and automation, has been used in a wide range of applications.

Key Features

Product features of the TRIAX 180 Compact Imaging Spectrometer are:

  • Superior image quality
  • Fully automated
  • Economical and compact
  • High throughput
  • 30 x 12 mm flat image field
  • Patented triple grating turret
  • High precision automated slits
  • Rediffracted light eliminated
  • On-axis grating rotation
  • Built-in RS232 and IEEE interfaces
  • Built-in control of optional filter wheel
  • Optional handheld controller
  • 32 bit LabVIEW drivers available

Specifications

Specifications of the TRIAX 180 Compact Imaging Spectrometer are provided in the table below:

Wavelength Range 185 nm to Far Infrared
Resolution 0.3 nm
Detector(s) CCD, PMT, Solid-State
Dynamic Range Inquire
Accuracy +/- 0.3 nm
Signal-to-Noise Ratio Inquire.
Focal Length 0.19 m
Pixels Inquire
