Ultrasonic Flaw Detector – OmniScan MX2 from Olympus

The OmniScan MX developed by Olympus is regarded as the most successful portable and modular phased array test instrument. The OmniScan MX2 family having touch screen interface has powerful new on-board and PC-based software features, and high testing efficiencies, thus achieving superior manual and advanced AUT application performance with fast setups, reporting, and test cycles.

The company also provides a new UT module, a new PA module with TOFD, and new software programs which include NDT SetupBuilder and new OmniPC version for improving efficiency of nondestructive testing inspections and also for expanding the OmniScan MX2 platform capabilities. The PA module has high signal-to-noise ratio, 64 pure gray tone, and more powerful pulsers.

The OmniScan MX2 can be combined to other critical components to form a complete inspection system. It has intuitive weld overlay software feature which helps in simplifying and speeding up the setup process. It has powerful inspection capabilities for automated and manual applications. A new line of modules which are compatible with MX2 instrument are released by Olympus.

Applications

The applications of the OmniScan MX2 are:

  • Pressure vessel weld inspection
  • Corrosion mapping inspection
  • Composite inspection
  • Weld inspection of small-diameter pipes

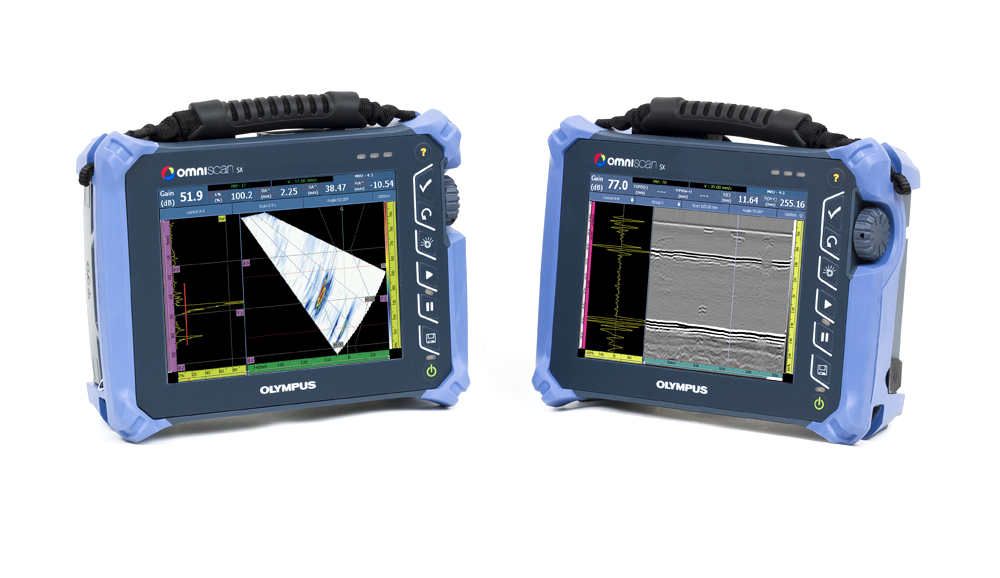

Ultrasonic Flaw Detector OmniScan MX2 from Olympus NDT

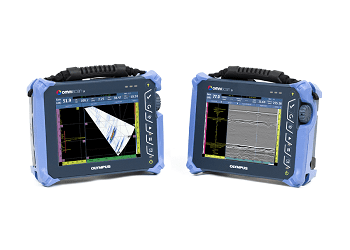

Ultrasonic Flaw Detector OmniScan MX2 from Olympus NDT

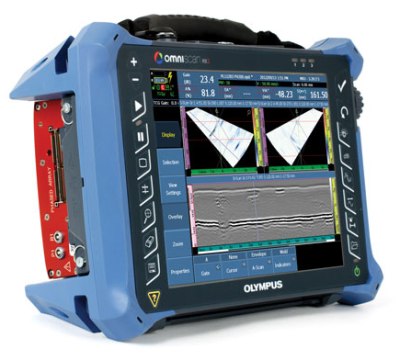

Ultrasonic Flaw Detector OmniScan MX2 from Olympus NDT
