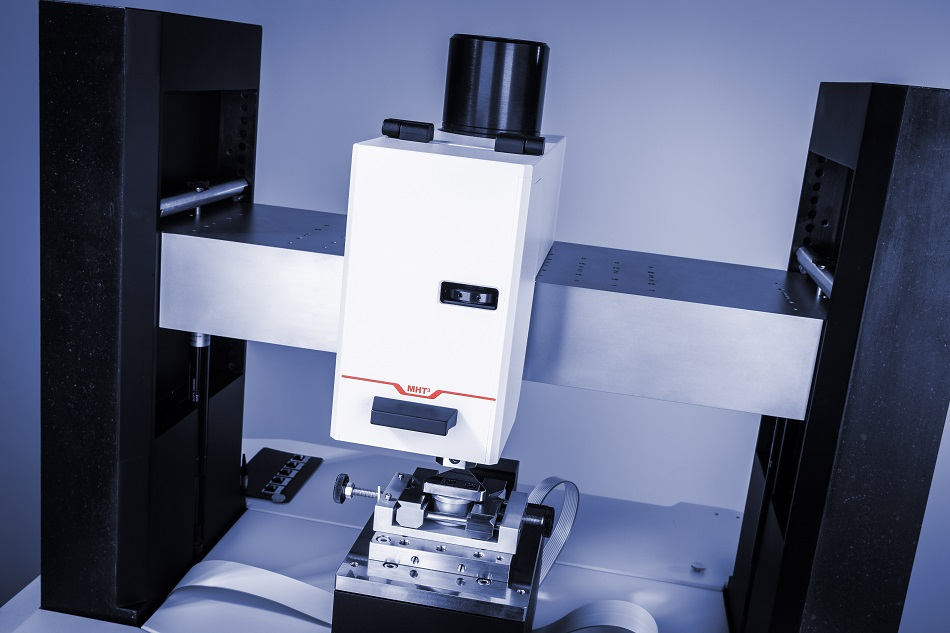

Micro Indentation Tester MHT³ for the Higher Force Range

The Microindentation Tester MHT³ is ideally suited to the measurement of mechanical properties such as hardness and elastic modulus based on instrumented indentation testing (IIT). It is applicable to bulk samples and films, from soft to hard materials (metals, ceramics, polymers) with a high depth of measurements (up to 1 mm).

Optical Vickers hardness (HV) is possible to a maximum of 30 N and instrumented indentation testing (IIT) to a maximum of 10 N. Visual matrices of indentations and continuous multi cycles (CMC) allow you to measure the mechanical properties as a function of position on the surface and depth in the sample.
