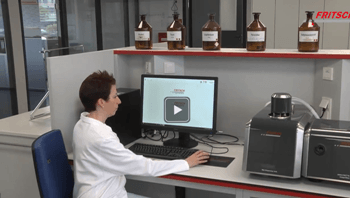

The FRITSCH ANALYSETTE 28 ImageSizer for wet and dry measurement is the ideal Particle Sizer for all applications that demand accurate and reproducible measuring results for both particle size and shape. The optical process of Dynamic Image Analysis offers results for a broad measuring range, delivers numerous shape parameters and assessment possibilities for particle size. The measuring time based on the sample quantity, is below five minutes and the result is available instantly.
Key Advantages
Great flexibility for various measurement tasks for particle sizes of 5 µm – 20 mm in quality control, laboratory and research – and is a very easy and economical substitute to sieving.
New: Easy Wet Measurement of Suspensions and Emulsions with New Practically Maintenance-Free Wet Dispersion Unit
Particle Sizer ANALYSETTE 28 ImageSizer for wet measurement of suspensions and emulsions
The ANALYSETTE 28 ImageSizer is in combination with the corresponding wet dispersion unit ideal for measurement of particle shape and size of suspensions and emulsions.
Particle Sizer ANALYSETTE 28 ImageSizer for wet measurement of suspensions and emulsions.
Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids.
Key Advantages
- Extra wide measuring range of 5 µm – 3 mm
- 3 telecentric lenses available
- Powerful, practically maintenance-free, and modular wet dispersion system
- Variable suspension volume between 150 ml and 500 ml
- Many organic solvents can also be used as a standard
- Efficient, valveless, and automatic rinsing
- No dead space in measuring and rinsing circulation system
- Separate ultrasonic box with up to 50 Watt output for deagglomeration
- Fast and consistent cleaning
Efficient Dry Measurement of Powders and Bulk Solids
Particle Sizer ANALYSETTE 28 ImageSizer for dry measurement of powders and bulk solids
The ANALYSETTE 28 ImageSizer is in combination with the corresponding wet dispersion unit ideal for measurement of particle shape and size of suspensions and emulsions. Particle Sizer ANALYSETTE 28 ImageSizer for wet measurement of suspensions and emulsions Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids.
Key Advantages
- Extra wide measuring range of 5 µm – 3 mm,
- 3 telecentric lenses are available
- Powerful, practically maintenance-free, and modular wet dispersion system
- Variable suspension volume between 150 ml and 500 ml
- Many organic solvents can also be used as a standard
- Efficient, valveless and automatic rinsing
- No dead space in measuring and rinsing circulation system
- Separate ultrasonic box with up to 50 Watt output for deagglomeration
- Fast and consistent cleaning
State-of-the-art, Simple and Fast Evaluation via FRITSCH Cloud and Gallery
The assessment of the measuring results is exceptionally simple with the ANALYSETTE 28 ImageSizer. The assessment software ISS displays each recorded particle visibly as a data point in the directly available FRITSCH Cloud as well as in the FRITSCH Gallery. Users can freely choose which statement is of interest: for instance the Sphericity in relation to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section. Or display the particle size distribution as a cumulative curve, in a table form, or as a bar chart.
The FRITSCH Cloud: Each Particle can be Clicked Individually
State-of-the-art uncomplicated evaluation: For rapid single image viewing, each individual particle can be opened instantly with a mouse click from the plainly arranged FRITSCH Cloud. The really crucial information regarding the morphology will be displayed by the position of the data point in the Cloud. Without wasting time searching, users can directly analyze, assess and delete individual selected particles. All available shape and size parameters are automatically shown.
The FRITSCH Gallery: Everything at a Glance
To obtain a fast overview of the typical particle shape of the analyzed sample, view and evaluate all the images in a gallery which is integrated directly into the software for easy use. Individual particle images can be straightaway selected for single image analysis.
Evaluation of a particle size distribution
Uncomplicated single image analysis via the FRITSCH Cloud and Gallery
