X-Ray System –Versatile with a large scanning envelope for inspecting small components to large parts

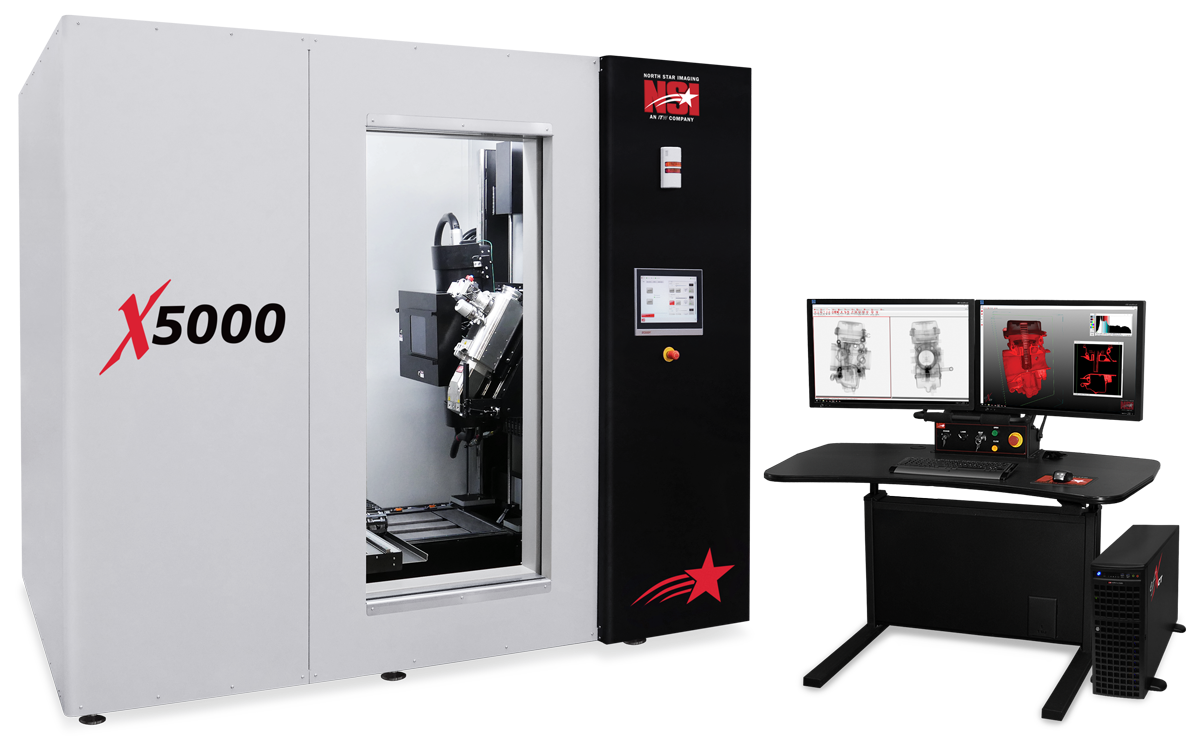

North Star Imaging’s X5000 is a highly versatile system.

The system has a large scanning envelope and superior ergonomics for loading sizable objects and being able to maintain the sensitivity to inspect even the smallest of items.

Download the Brochure for More Information

Key Features

System Capabilities

  • X-ray energies from 10 kV - 450 kV
  • Geometric magnification: >2000x
  • Total maximum system resolution: better than 500 nm
  • Complies with ASTM E2597 standard
  • 32” (81 cm) diameter x 48” (121 cm) tall nominal part envelope

CT Software

  • Complete acquisition, processing, and archival program with easy to use interface
  • Non-proprietary multiple image format input/output. DICONDE compliant
  • High performance image processing and measurement operations
  • Multiple window interface for display of raw image, density data, processed image, etc.
  • Automated program functions for rapid analysis
  • Computed tomography acquisition module
  • Available with vorteX, mosaiX and subpiX
  • Optional 4D computed tomography
  • Optional 3D computed tomography calibration, reconstruction and visualization

X-Ray Source

  • Minimum focal spot size: < 500 nm
  • Voltage range: 10 kV- 450 kV
  • X-ray tube types: micro-focus, mini-focus, nano-focus, open or sealed, transmission or directional or dual head
  • Optional dual tube configuration

X-Ray Detector

  • Digital X-ray detector types: flat panel (DDA), image intensifier, linear diode array (LDA)
  • Detector size: Up to 16 x 16” (40 x 40 cm)
  • Grade options: Standard or CT Premium, 14 or 16 bit


  • Maximum sample weight: 250 lbs (113 kg) (400 lbs (181 kg) optional)
  • Motorized detector travel for variable focal distance modification
  • Scan travel with customization available): vertical = 48” (121 cm), horizontal = 33” (83 cm), Z-axis (source to detector) = 48” (121 cm), rotation (optional +/-30°) = 360° continuous, tilt = +20°/-15°
  • NSI CNC motion control software for automated scanning with automatic image processing and archiving capabilities
  • Part manipulation control:
    • Each axis is separately controlled
    • All drives variable speed joystick controlled
  • Option: Rotational stage indexes outside of the cabinet for ergonomic part loading/unloading


  • Meets or exceeds 21 CFR 1020.40 and EN 61010-2-091 2012 standards
  • External dimensions:
    • 240 kV model: 107” wide x 80” deep x 92” tall (271 cm wide, 203 cm deep, 233 cm tall)
    • 450 kV model: 126”wide x 91” deep x 102” tall (320 cm wide, 231 cm deep, 259 cm tall)
  • Touch screen operation
  • Cable access port with cover, powered sliding access door(s), leaded glass viewing window (240 kV model only), interior lighting, safety light curtains, internal camera monitoring system, and steel/lead/steel construction
  • Includes one ergonomic desk and chair
