Wireless Handheld Interface with Bluetooth Connection – HMC from Tinius Olsen

The Wireless handheld interface from Tinius Olsen can be connected to the machine by a Bluetooth link. This interface can be used on both the SL and ST series of testers. It features an Android-based operating system and can be used to regulate the machine by itself or along with Tinius Olsen’s Horizon software.

Features and Benefits

  • Bluetooth-enabled handheld interface allows highest flexibility when paired with a testing machine
  • Selectable multi-unit display of channel values
  • Three-channel display of test machine channels
  • Safe operating radius of a maximum 10 m. In case range is exceeded for testing, the machine will work in ‘safe’ mode.
  • Battery-operated with hot-swappable batteries. Typical battery life is approximately 10 hours of continuous use.
  • Instantaneous display of machine status and channel values
  • Controls machine movement during test set-up and starts a test directly from the built-in control pad
  • Test procedure including up to five steps can be organized and run directly on the HMC interface. These steps include move, hold, and cycle routines.
  • Interface is WiFi enabled and can be part of a local network
  • Interface has a military vibration rating and will resist shock if dropped
  • 8 MP camera is built into the interface and can be used to capture pictures of specimens, tests, and configurations as witness to each test
  • Test results can be printed on a Bluetooth-paired printer, to a network printer or to a memory device via an included micro USB connection
  • Interface has 1080 p video at 30 fps capability to record test procedure
  • Interface is barcode reader enabled
  • Stylus is added along with the interface

Specifications

MODEL HMC HANDHELD USER INTERFACE
Required or option Option
Compatible with TO ST and SL series frames
Touch screen Multi-touch capacitive, rain-resistant and inductive stylus
Color Yes
Dedicated hard keys Crosshead positioning
Technology platform Android v4.1.1 (Jelly Bean)
Language Supports global language character sets
Display 141 mm diagonal super AMOLED 720 x 1280 pixels
Contrast ratio 402 nominal, 2.307:1 sunlight
IP rating Sealed to IP67 (submersible)
Shock vibration rating MIL-STD 810G Method 516.6 & Method 514.6
Size (LxWxD) mm 232 x 99 x 29
in 9.1 x 3.9 x 1.14
Weight g 442
oz 15.6
Sound Vibration, MP3, WAV files, loudspeaker voice;
70 db/Noise 66 db/Alerts 80 db
Graphics Mall-400 MP
Sensors Accelerometer, gyro, proximity, compass, barometer
WLAN WiFi 802.11 a/b/g/n, dual band,
DLNA, WiFi direct, WiFi hotspot
Bluetooth v4.0 with A2DP, LE, EDR USB microUSB v2.0 (MHL), USB Host
Camera Primary 8 MP, 3264 x 2448 pixels, autofocus,
LED flash, simultaneous video and image recording,
geo-tagging, touch focus, work piece/target detection, image stabilization
Video 1080 p @ 30 fps
GPS A-GPS support + GLONASS
Battery 1 Internal, Li-ion 3100 mAh
Battery 2 Hot-swappable, 2500 mAh Li-ion
Mag Strip reader Three-channel, bi-directional card reader
Security: DES, Triple DES,
AES encryption Management: DUKPT key manager
Cradle mount to frame Mounted on adjustable articulated support arm
compatible with ST product T-slot mounting points
and SL console mounting
Operating temperature 10-40 °C
Operating humidity 10-90% non-condensing
Storage temperature 5-45 °C
Storage humidity 10-70% non-condensing

Wireless Handheld Interface with Bluetooth Connection – HMC from Tinius Olsen

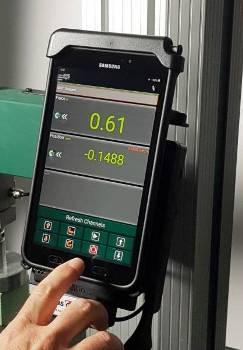

Picture 1

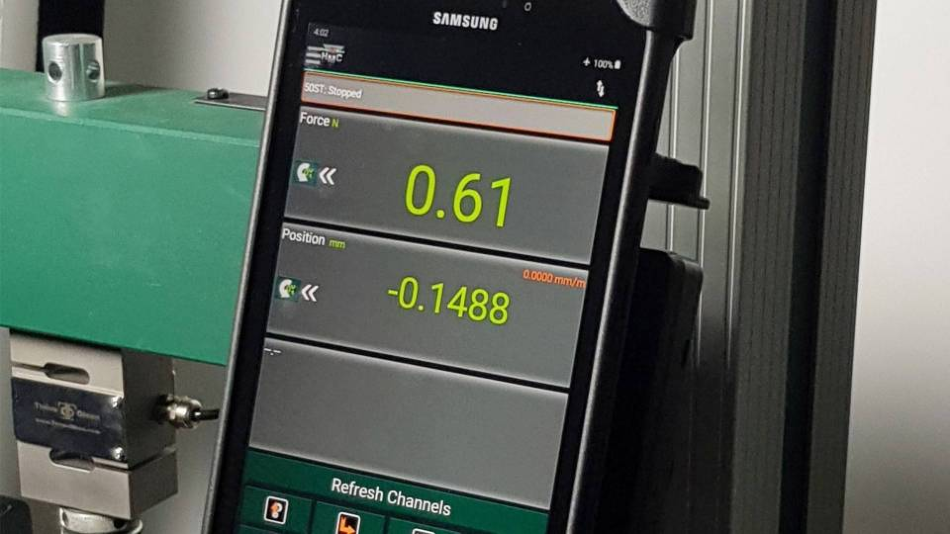

Picture 2

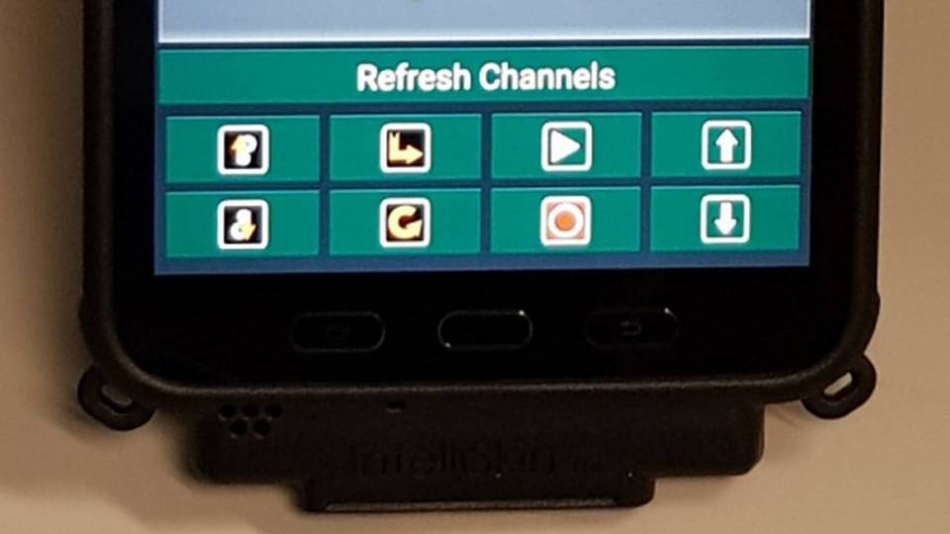

Picture 3
