Chip Calorimetry - Flash DSC 2+

The Flash DSC 2+ can analyze reorganization processes that had been impossible to measure until now, revolutionizing rapid-scanning DSC. It is the ideal complement to conventional DSC, with heating and cooling rates now covering a range of more than 7 decades.

Lauded as the fastest commercially available DSC, the Flash DSC 2+ is ideal for studying rapid crystallization and reorganization processes, and able to operate in temperatures from -95 to 1,000 °C. These ultra-high cooling and heating rates have considerably progressed the study of thermally induced chemical processes and physical transitions, allowing the study of the crystallization and reorganization of a range of materials including metals and polymers like never before.

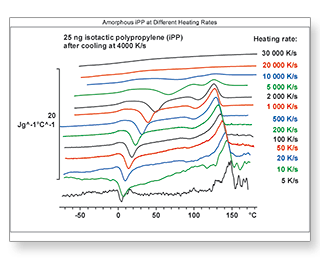

Ultra-High Heating and Cooling Rates

High heating rates are used to enable materials to be quickly analyzed without interference. The high heating rates do not leave time for reorganization processes to occur, so there is no interference from these processes. This makes Flash Differential Scanning Calorimetry the ideal method for studying the kinetics of crystallization.

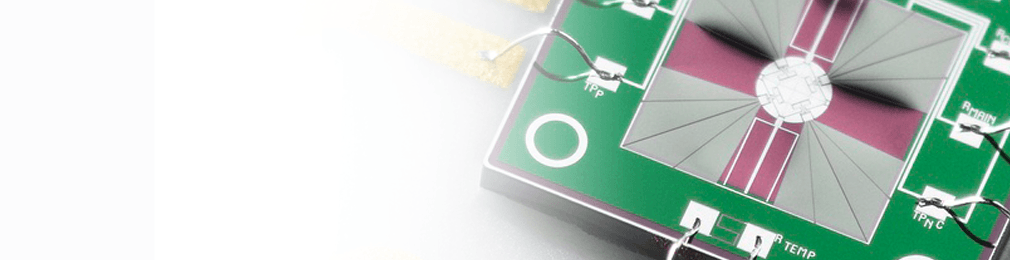

Fast Response Sensor

The Flash DSC 2+ uses a MultiSTAR chip sensor, allowing the sample to be placed directly onto the sensor itself. Measurements can be performed with minimum noise level at high heating and cooling rates, due to the unit’s patented dynamic power compensation control circuit. Two MultiSTAR sensors (UFS 1 or UFH 1) are mounted onto a stable ceramic substrate with electrical connections, allowing the Flash DSC 2+ to offer a range of analysis options.

User-Friendly Ergonomics and Functionality

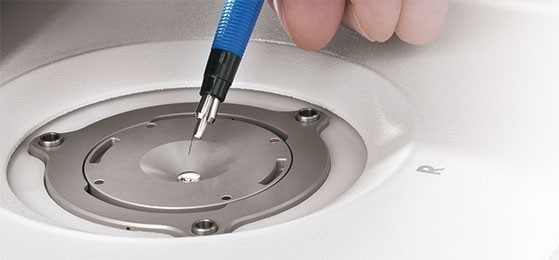

Ease of use is at the core of the Flash DSC 2+, with the unit designed to handle both the preparation and insertion of samples from a comfortable sitting position in front of the instrument. The sample is cut to size first using a small glass microscope slide that is then placed over the sensor. The sample can then be transferred directly onto the sensor itself and accurately positioned using a hair.

Chip Calorimetry - Flash DSC 2+

Ultra-High Heating and Cooling Rates
Fast Response Sensor
User-Friendly Ergonomics and Functionality
