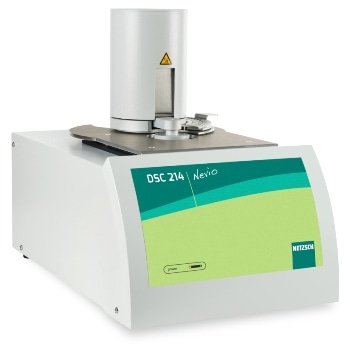

Differential Scanning Calorimeter for Phase Transformations of Pharmaceuticals, Foods and Cosmetics - DSC 214 Nevio

Studying Phase Transformations of Pharmaceuticals, Foods and Cosmetics by means of the DSC 214 Nevio ‒ the fastest heat-flux DSC instrument on the market.

Information obtained by differential scanning calorimetry (DSC):

  • Melting temperatures and enthalpies
  • Polymorphism
  • Crystallization temperatures and enthalpies
  • Glass transitions
  • Solid-solid interactions (e.g., compatibility)
  • Phase diagrams
  • Eutectic purity
  • Solid-fat content
  • Reaction temperatures and enthalpies
  • Cross-linking reactions (curing)
  • Oxidation-induction time and temperature (isothermal and dynamic OIT)

Key Technical Data (Subject to Change)

  • Temperature range (max.): -170 °C to 600 °C
  • Max. cooling rate/max. heating rate: 500 K/min
  • Measuring range/ weighing range (max.): ± 750 mW
  • Enthalpy accuracy: < 1% (for indium)
  • TGA resolution: n/a
  • Indium Response Ratio (*): > 100
  • Exchangeable sensors: n/a
  • Cooling options:
    • Air compressor: RT to 600 °C
    • Compressed air: < 0 °C to 600 °C
    • Intracooler: -70 °C to 600 °C
    • Liquid nitrogen: -170 °C to 700 °C
  • Gas atmospheres: Inert, oxidizing, static and dynamic
  • Mass flow controller for purge/protective gas: 3, integrated (0 to 250 ml/min)
  • Gas flow regulation: Software-controlled
  • Automatic Sample Changer (ASC): Yes (optional)
  • Software: min. Proteus® 8
  • Proteus® software extensions included:
    • SmartMode
    • ExpertMode
    • AutoCalibration
    • (Advanced) BeFlat®
    • AutoEvaluation
    • Identify
  • Proteus® software extensions (optional):
    • Temperature modulation (not available in the USA)
    • Specific heat capacity (cp)
    • Proteus® Protect
    • Purity Determination
  • Advanced Software extensions (optional):
    • Peak Separation
    • Kinetics Neo
    • Thermal Simulations
  • Size (W x H x D) – incl. ASC, without physical connections: 350 mm x 445 mm x 560 mm
