Precise Metal Testing with Optical Emission Spectrometry - ferro.lyte

ferro.lyte is a mobile metal analyzer optimized for use in metal production, metal processing and metal recycling. ferro.lyte uses the principle of optical emission spectrometry (OES) with spark excitation.

Unlike traditional handheld instruments, ferro.lyte makes it possible to precisely analyze with low atomic numbers such as C, P, S, B, Li, Be, Ca, Si, Mg, Al and determine nitrogen in duplex within a few seconds.

Intelligent OES Design for Greatest Flexibility

ferro.lyte convinces with its groundbreaking design, which has been developed for utmost user-friendliness. Even without a trolley, the integrated argon bottle holder and a holder for the hand probe ensure the analyzer is easy to move and safe to operate. Due to the low weight of < 16 kg and the compact design, ferro.lyte provides ideal conditions for positive material identification (PMI) or ad-hoc analysis in hard to reach locations.

As Precise as a Laboratory Instrument

ferro.lyte is lightweight, compact and due to its design, it is flexible and quick to use like a handheld. In relation to its analytical performance, ferro.lyte is as accurate as a laboratory instrument. It is indispensable for quality management and correct measurement results.

Revolutionary Operation

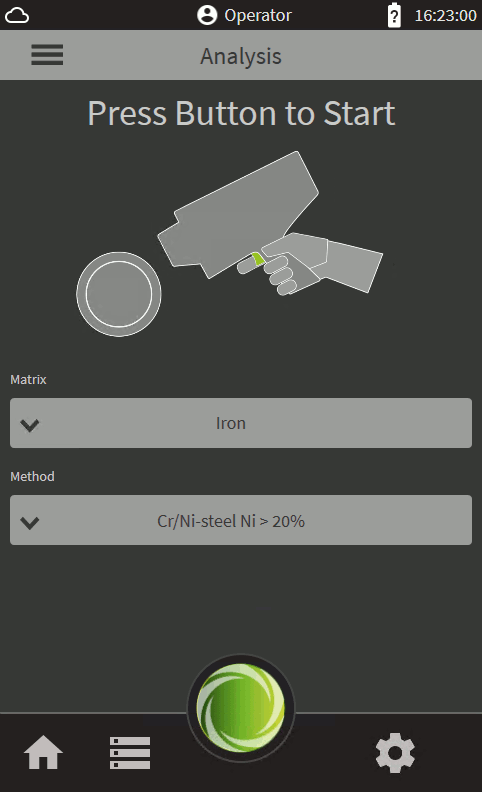

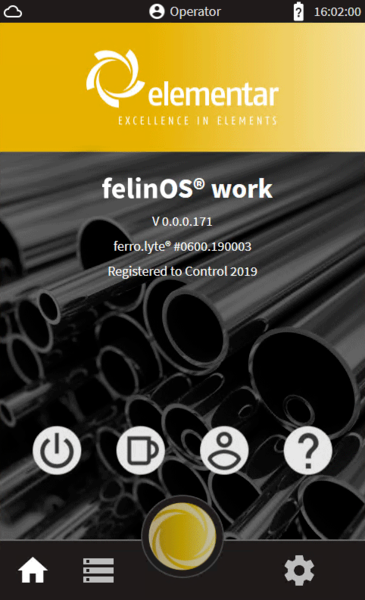

The intuitive user interface permits fast navigation through device settings and workflows. For example, the user can choose which software functions are on display in the main window. The user can select the classic analysis display or the alloy ID with target and actual values. The clear and bright touch screen is easy to read even in the most challenging lighting conditions, due to optical bonding technology.

Precise Metal Testing with Optical Emission Spectrometry

Precise Metal Testing with Optical Emission Spectrometry

Easy Reporting at the Push of a Button

It is possible to export analysis results in a number of ways: via USB or LAN connection from the analyzer, as well as via Bluetooth or WLAN connection. The powerful felinOS® cloud technology optimizes the provision and further processing of measurement results and thus enables cooperation with business partners and colleagues. This always provides unsurpassed data processing (reporting) and traceability for on-site work.

Unmatched OES Nitrogen Analysis in Duplex

Elementar's innovative CONLYTE® technology substantially improves analytical performance for nitrogen in duplex. Additionally, the long-term stability for the measurement of phosphorus, sulfur and boron is increased. Contrary to conventional systems, ferro.lyte utilizes an extended wavelength range to determine nitrogen content that was previously only attainable by laboratory instruments.

The extension of the wavelength range is made possible by the exceptional CONLYTE technology developed by Elementar (patent pending). Due to the CONLYTE technology, the air gap between the light channel and the plasma, which is typical in mobile spectrometers, is entirely sealed from the atmosphere. Therefore, it is not possible for atmospheric changes to impact the measurement signal, which is essential for always achieving dependable analysis results.

Cloud Service

The analyzer automatically stores the analysis results and they can be uploaded to the secure felinOS® cloud simultaneously. This facilitates dynamic new working methods. Analysis data can be rapidly and efficiently shared and processed further. The measured values are available "On Demand" if needed at any time, even when the instrument is not available, for further distribution or processing. This increases security and data availability at any time and anywhere.
