Wide Range Resistor for UHV Use - 343-PT100-C1

The wide range PT 100 resistor available from Allectra is a class A resistor that enables accurate measurement of temperature between −200 °C and +750 °C. The class A resistor provides very low tolerances and higher stability in comparison to thermocouples.

The resistor comes in a standard version, or along with four cables connected. It is also available as a set that includes screw-on clamp and thermal contact foil. Users can obtain alternative cable configurations on demand.

Specifications

343-PT100-C1
Vacuum UHV
Materials Ceramic, Glass, Platinum
Size 1.6x5 mm, 0.65/1.3 mm thick
Connection wires Pt, 0.2 mm ø, 12 mm long
Recommended current 1 mA max.
Temperature range -200 °C ...+750 °C
Response time t0.9: 0.7s (in water)
Tolerance Class A
+/-0.15K @0 °C
+/-(0.15+(0,002*ABS(T)) -100...+300 °C
+/-(0.3+(0,005*ABS(T)) -200...+600 °C
Options Attached cables (3 wire or 4 wire), 311-KAPM-025
test Sets with screw clamp and thermal contact foil

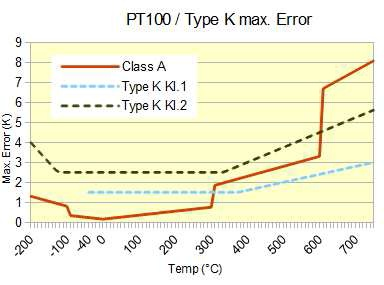

Maximal allowed errors of PT100 class A, compared to Thermocouples Type K.

Maximal allowed errors of PT100 class A, compared to Thermocouples Type K.

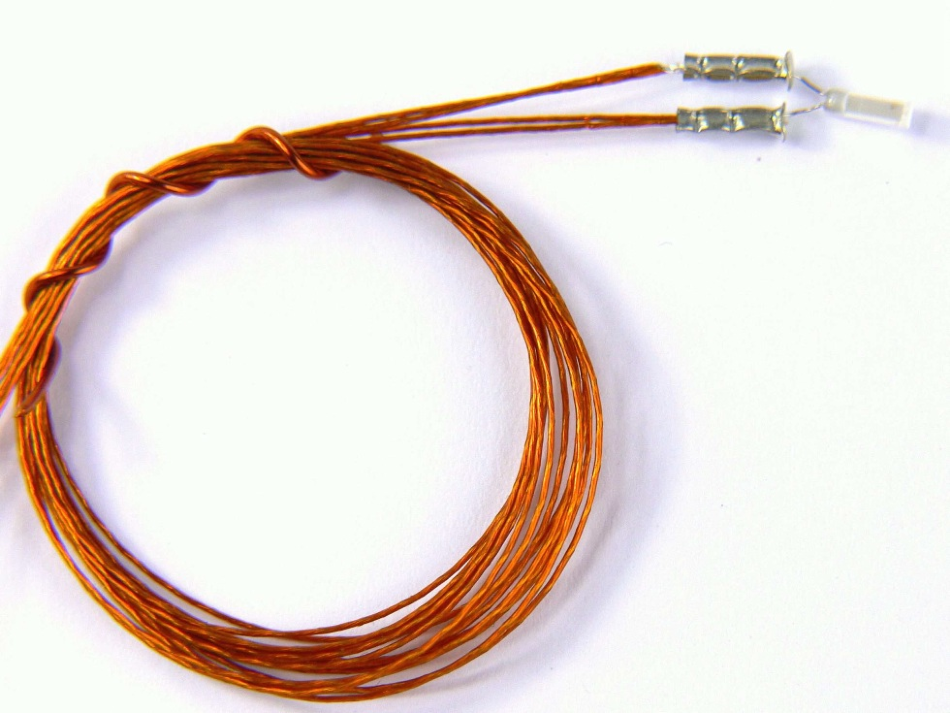

Solder-free crimp connection to Kapton insulated wire

Solder-free crimp connection to Kapton insulated wire.

343-PT100-C1 on mm paper.

343-PT100-C1 on mm paper.

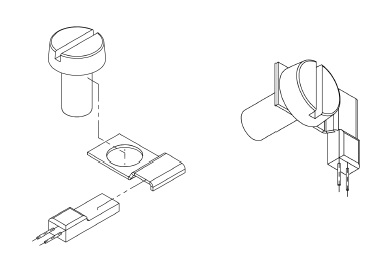

 Sketch of screw clamp mounting option with M2 screw.

Sketch of screw clamp mounting option with M2 screw.

Art. Nr. Description
  PT100 NO CABLES
343-PT100-C1 PT100 resistor, 1.6x5 mm, -200... +750 °C, Class A
343-PT100-C1-SET1 PT100 resistor + Clamp (BeCu) and screw M2x4
343-PT100-C1-SET2 PT100 resistor + Clamp + Contact foil 20x20 mm²
  PT100 WITH ATTACHED CABLES
343-PT100-C1-1M PT100 resistor, as above, with 4x 1m 311-KAPM-025
343-PT100-C1-1M-SET1 PT100 resistor with cable + Clamp (BeCu) and screw M2x4
343-PT100-C1-1M-SET2 PT100 resistor with cable + Clamp + Contact foil 20x20 mm²



It is possible to perform several modifications:

  • Alternative cable length available on request
  • Solder-free crimp connection available on request
  • 3-wire and 2-wire connection available on demand

The following are the recommended alternative cables:

  • 311-KAP-RIB4 (4-way ribbon cable of 0.35 mm)
  • 311-KAPM-035 (diameter of 0.35 mm)
  • 311-KAPM-035-RAD (radiation-resistant wire of 0.35 mm)

The thermal contact foil (317-TCP-20x20) melts at a temperature of 58 °C and offers an optimal contact to the base material at a thermal conductivity of 125 W/mK. It does not contain any filler.

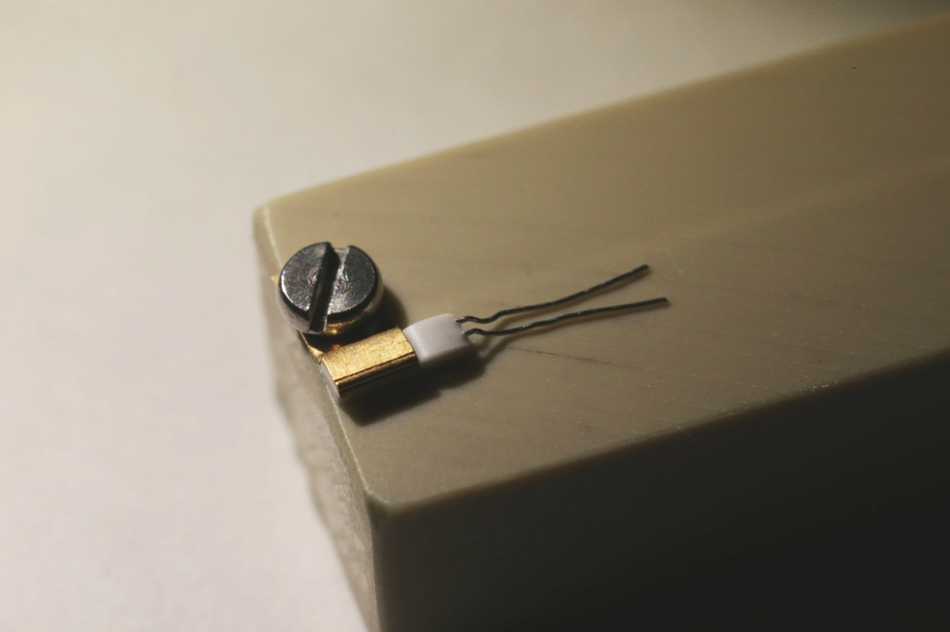

343-PT100-C1-SET1 resistor with mounting clamp.

343-PT100-C1-SET1 resistor with mounting clamp.
