EIGER2 X and XE Detector Series from DECTRIS

Research is often inspired by innovation and passion, but most ambitious projects are accomplished using robust and contemporary tools.

The brightness of synchrotrons keeps increasing constantly. To make the most of the growing photon fluxes at the most powerful beamlines, the EIGER2 X and XE X-ray detector series includes DECTRIS instant retrigger technology — initially launched with PILATUS3 — and supports a fourfold increased photon-counting capacity of up to 107 photons/second/pixel.

The EIGER2 X and XE series integrates several additional innovations. EIGER’s nonstop readout has been enhanced to be fully dead time-free. The detectors currently offer a second modifiable energy discriminating threshold and provide gateable detection for pump-and-probe experiments.

A 75 µm pixel size and direct detection of photons for maximum spatial resolution have been retained from the EIGER detector.

Large-area and extremely fast detectors help users to take their research to new levels. Without dark current or readout noise, users can now measure the best data.

Users can manipulate the capabilities of the beamline with the latest detector technology and complete support from the full DECTRIS team.

Main Advantages

  • Compact housing
  • High spatial resolution with a pixel size of 75 µm
  • Single-pixel point-spread function
  • Count rate capability of up to 107 photons/second/pixel
  • Dual-energy discriminating threshold
  • KiloHertz frame rate with dead time-free readout
  • Room-temperature operation of all parts
  • Gateable detection for pump and probe experiments
  • Large active area for broad angular coverage
  • No dark current or readout noise

EIGER2 XE 16M

DECTRIS flagship: EIGER2 XE 16M features 16 million pixels, a detective area of 311 x 328 mm2, and a frame rate of 550 Hz. It is the largest and fastest high-performance detector available today.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

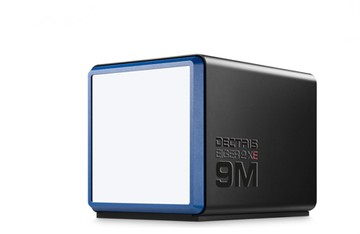

EIGER2 XE 9M

With an area of 233 x 245 mm2 and 9 million pixels, the EIGER2 XE 9M is ideal for macromolecular crystallography — available in XE performance.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

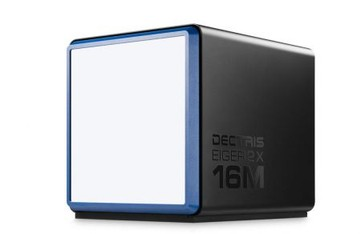

EIGER2 X 16M

The EIGER2 X 16M is the largest macromolecular crystallography detector delivering optimum performance.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

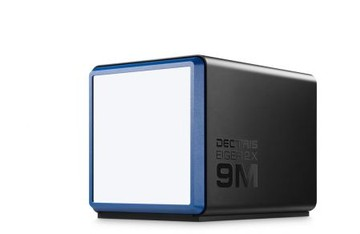

EIGER2 X 9M

This detector features 9 million pixels for macromolecular crystallography and other challenging synchrotron applications.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

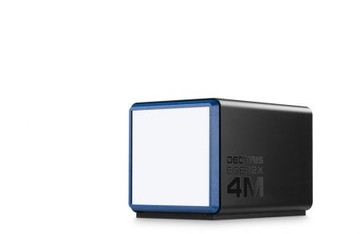

EIGER2 X 4M

The EIGER2 X 4M is the ideal tool for SAXS, ptychography, or serial crystallography that can optionally be operated in a vacuum.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

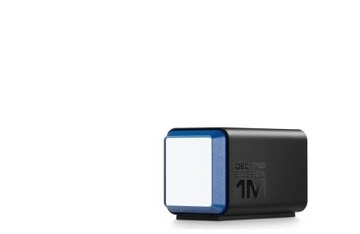

EIGER2 X 1M

The EIGER2 X 1M has frame rates of over 2000 Hz and is the preferred detector for dynamic procedures like time-resolved small-angle X-ray scattering and photon correlation spectroscopy.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

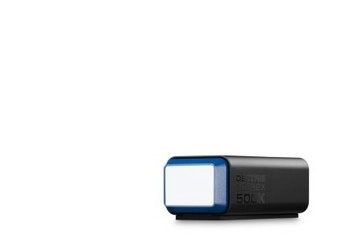

EIGER2 X 500K

The EIGER2 X 500K is a universal, fast, and compact HPC detector.


Image Credit: DECTRIS.
