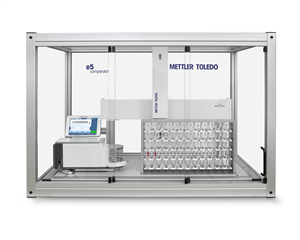

e5 Robotic Mass Comparator from Mettler Toledo

The e5 is a robotic mass comparator with 0.1 µg readability, 60 magazine positions, and calibration range: OIML accuracy class E1; E2; F1; F2 for efficient weight calibration. It delivers top throughput in continuous 24-hour operation.

Increase Throughput

The e5 robotic mass comparator incorporates a completely automated process that enables efficient weight calibration and offers maximum throughput for 24-hour continuous operation.

Reduce Errors

Robotic mass comparators reduce errors like the confusion between weights, incorrect transcription, and inaccurate placement.

Simplify Dissemination

The comparator is provided with automated measurement of weight combinations, thus ensuring smooth traceability to users’ mass standard.

Specifications

Source: Mettler Toledo

. .
Maximum Capacity 6.1 g
Readability 0.1 µg
OIML Class E1; E2; F1; F2
Electrical Weighing Range 0 g – 6.1 g
Dimensions (DxHxL) 700 mm x 760 mm x 1,080 mm
Repeatability ABA at Nominal Load 0.4 µg
Weight Handler 3-axis robot
Material Number(s) 30402190

Save Time and Cut Costs

Automation of the highly repetitive weight calibration process enables the operator to make time to focus on alternative tasks. Highest productivity is ensured by making use of instrumentation that can run 24 hours per day.

Flexible Solutions That Meet Users’ Needs

The robotic mass comparator is perfect as the initial step in the automation of users’ weight calibration workflow, and the ideal solution for high-throughput weight calibrations.
