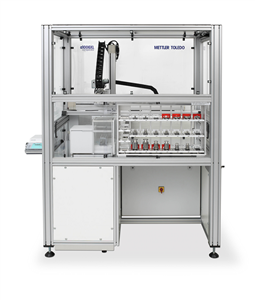

The a1006XL is a robotic mass comparator with 1 µg readability, 21 magazine positions and calibration range: OIML accuracy class E1; E2; F1; F2, for efficient weight calibration. It delivers top throughput in a continuous 24-hour operation.
Increase Throughput
The a1006XL robotic mass comparator offers a completely automated process that enables efficient weight calibration and higher throughput in a continuous 24-hour operation.
Reduce Errors
Robotic mass comparators minimize errors such as incorrect transcription, confusion between weights, and incorrect placement.
Simplify Dissemination
Weight combinations are measured in an automated way, thus ensuring seamless traceability to users’ mass standards.
Specifications
Source: METTLER TOLEDO
| . |
. |
| Maximum Capacity |
1,011 g |
| Readability |
1 µg |
| OIML Class |
E1; E2; F1; F2 |
| Electrical Weighing Range |
0 g – 11 g |
| Dimensions (DxHxL) |
897 mm x 1,870 mm x 1,672 mm |
| Repeatability ABA at Nominal Load |
10 µg |
| Weight |
290 kg |
| Weight Handler |
3-axis robot |
| Material Number(s) |
30404059 |
Save Time and Cut Costs
Automation of the extremely repetitive weight calibration process enables operators to gain time to focus on other tasks. Instrumentation that can operate 24 hours a day ensures maximum productivity.
Flexible Solutions That Meet Users’ Needs
The robotic mass comparator is perfect as the first step in the weight calibration workflow automation. It is also the best-suited solution for high-throughput weight calibrations.
