Range of Standardized 3D/Color Vision Systems

Sightline Process Control offers a variety of standard or customized 3D/color vision systems that can be easily installed and rapidly incorporated into the manufacturing facilities. All Sightline systems automate measurements such as size, volume, color, inclusions and other critical QA parameters.

Integrated with Sightline’s Product Analysis Software, these systems are designed to manage an unlimited number of special products, with every product setup customizable to fulfill your analysis needs.

The standard products can be divided into three major types.

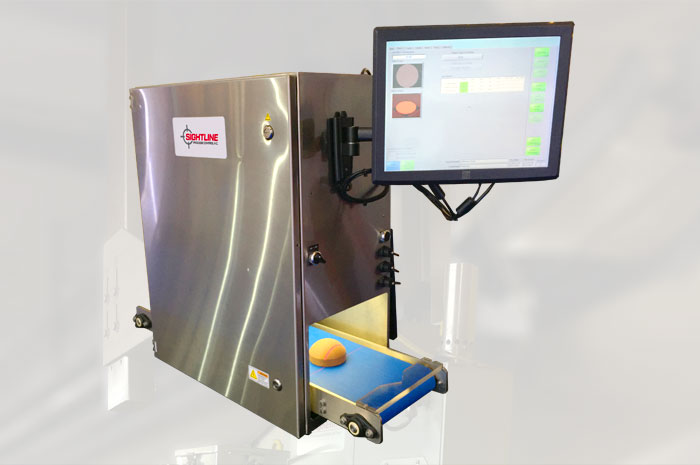

Benchtop Systems

Benchtop systems are compact, “plug-and-play” inspection systems that create more than 100 different measurements for each object positioned on the built-in conveyor belt.

Range of Standardized 3D/Color Vision Systems

Benchtop systems can fully automate manual measurements and quality analysis (QA) procedures to improve accuracy at a rate of up to 10 X faster than manual measurements, and can be set up directly in the laboratory or onto the plant floor.

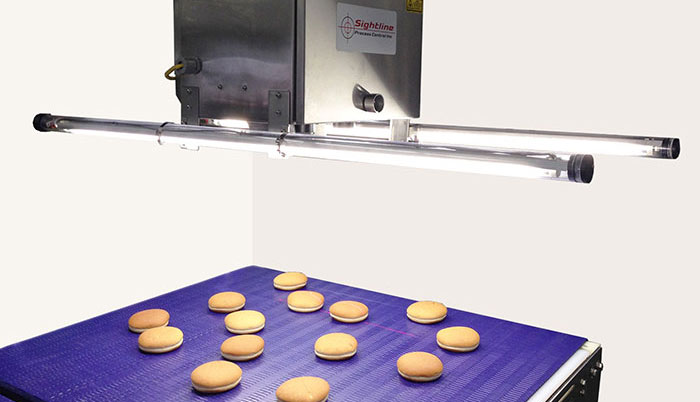

Over-Line Systems

Range of Standardized 3D/Color Vision Systems

Over-Line systems utilize a standard, compact sensor head mounted directly over an existing customer production line. This sensor head scans all the objects that pass underneath the system to generate a continuous stream of critical QA data and production metrics.

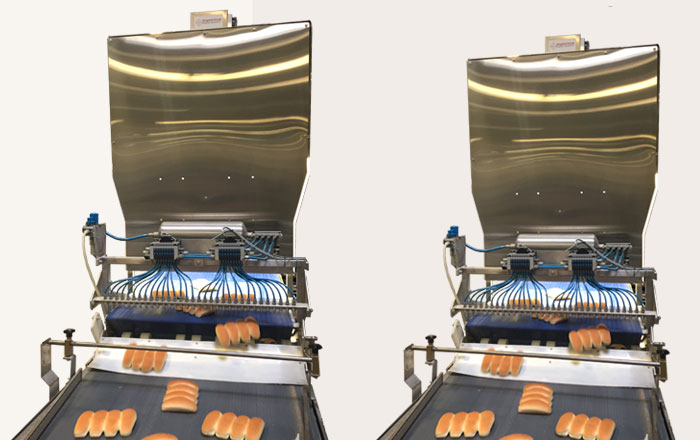

In-Line Systems

In-Line systems are ‘turn-key’ units that are designed to inspect 100% of all production and come complete with an integrated variable-speed conveyor and automatic rejection devices.

Range of Standardized 3D/Color Vision Systems

In-Line systems have the ability to automatically remove individual defective objects from the production line, and can also scan and measure the bottom surface of every object.
