Portable and High-Resolution Video Inspection with the IPLEX GX/GT Videoscope

Olympus has introduced the IPLEX GX/GT videoscope that includes an 8-inch screen, interchangeable insertion tubes and light sources, and sophisticated imaging features to provide an optimal balance of imaging capabilities, versatility, and ease of use for quicker and more elaborate inspections of boiler tubes, pipes, and heat exchangers.

Innovative Imaging

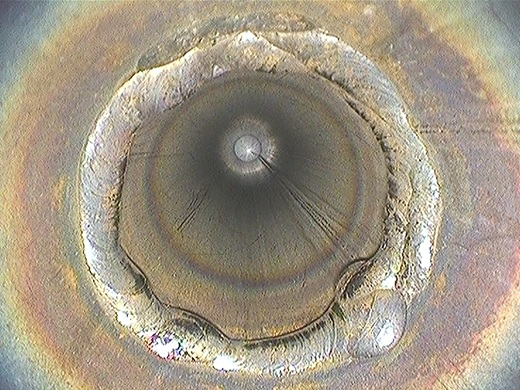

Brighter images can lead to a more productive inspection of pipes and vessels. The LED light source in the IPLEX GX/GT videoscope is 30% brighter when compared to its predecessor (IPLEX RX/RT), thus enhancing users’ probability of detection.

the IPLEX GX/GT Videoscope

Image Credit: Olympus Scientific Solutions Americas - Industrial Microscopy

Specialized Pipe Inspection

Olympus provides tip adaptors that are specifically developed for pipe inspections and help users work more efficiently.

  • Direct/side view adaptor—users can observe pipe walls and forward views at the same time
  • Wide 220-degree adaptor—users can inspect the circumference of the inner wall of a pipe at a glance

the IPLEX GX/GT Videoscope

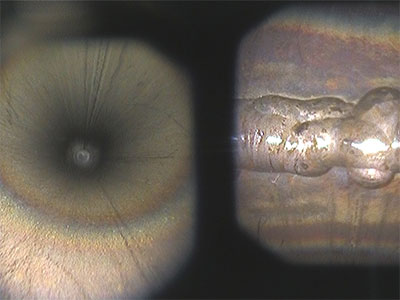

Direct/side view. Image Credit: Olympus Scientific Solutions Americas - Industrial Microscopy

the IPLEX GX/GT Videoscope

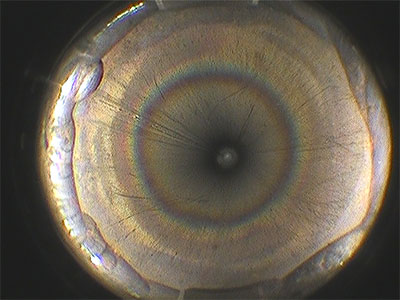

200 Degrees wide. Image Credit: Olympus Scientific Solutions Americas - Industrial Microscopy

One Tool for Many Jobs

A single IPLEX GX videoscope can be fitted with insertion tubes measuring up to 10 m (33 ft) long, thus enabling users to select the best scope for their particular applications.

Scope diameter 4.0 mm: length 2.0/3.5 m

Scope diameter 6.0 mm: length 2.0/3.5/7.5/10 m

*1. IPLEX GT enables scope interchange with only units of the same length and diameter

*2. IPLEX GX enables scope interchange with any same length and diameter

the IPLEX GX/GT Videoscope

Image Credit: Olympus Scientific Solutions Americas - Industrial Microscopy

Constant Video*

With the new videoscope, users would never lose crucial inspection recordings. The videoscope automatically captures the final 30 minutes of users’ inspection even if they do not remember to press the record button.

*Available only on the IPLEX GX and needs an optional microSDHC card.

Tested Tough

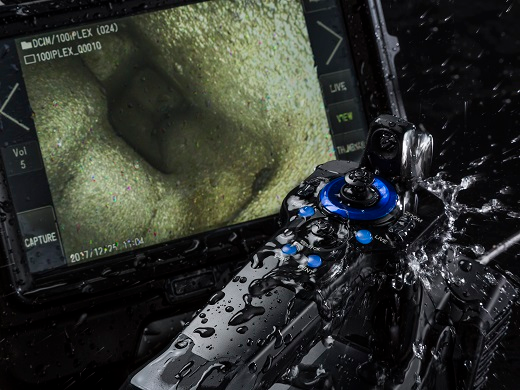

The videoscope has been developed to fulfill the IP65 standards for dust and water resistance, and designed for adverse working environments. It has been subjected to drop tests and has also been tested to the U.S. Department of Defense standards (MIL-STD 810G/461G).

Image Credit: Olympus Scientific Solutions Americas - Industrial Microscopy

IPLEX Videoscopes: Flexible Options for Various Application

The IPLEX series provides videoscope options to suit numerous applications and budgets.

  • High Portability—IPLEX G Lite

Robust, weightless, and sufficiently small to take almost everywhere

  • High-Resolution Images—IPLEX NX

Brilliant, high-resolution imagery in a rugged and strong package

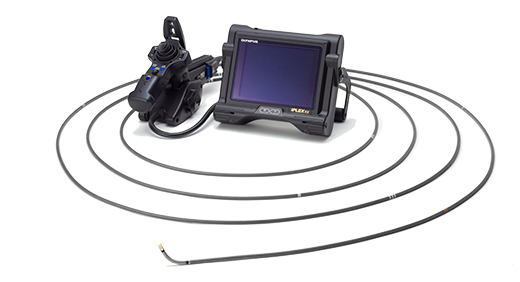

  • Longer Reach—Long Scopes

Higher scopes developed for hard-to-reach places in water feed pipes, boiler tubes, and heat exchangers

the IPLEX GX/GT Videoscope

Image Credit: Olympus Scientific Solutions Americas - Industrial Microscopy
