Trace-Level Analysis with the NexION® 1000 ICP Mass Spectrometer (ICP-MS)

The NexION® 1000 ICP-MS from PerkinElmer is the perfect high-throughput system for performing regular, multi-elemental, trace-level analyses that fulfill regulatory standards — and fits in users’ budget.

It includes a variety of proprietary technologies that collectively offer remarkable speed and possess simplicity, thereby making users’ laboratories more efficient than ever before.

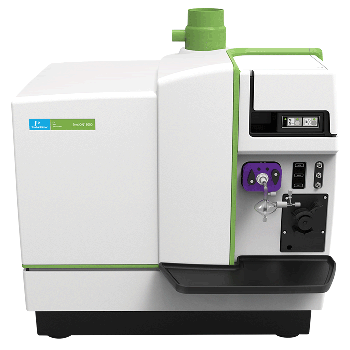

NexION 1000 ICP-MS.

NexION 1000 ICP-MS. Image Credit: PerkinElmer Food Safety and Quality


The NexION® 1000 ICP-MS features ideal aspects for high-throughput testing laboratories that run regular multi-element analysis:

  • The system has three quadrupoles and its special capability of the Universal Cell enables switching between Collision and Reaction modes with the help of a single gas combine to provide efficient interference removal, with minimal switching times (less than 15 seconds), thus increasing the productivity of users.
  •  The system has a 100,000 points/second data acquisition speed to handle any particle size, which is considered to be the fastest in the industry.
  • The system has been loaded with a new solid-state RF generator with revolutionary LumiCoil™ technology, which is the first ICP-MS RF coil capable of operating with no cooling or maintenance.
  • The Extended Dynamic Range ability provides the potential to detect high- and low-level elements in a single sample run.
  • The dedicated SMARTintro™ sample introduction module along with combined All Matrix Solution delivers long-term stability while tackling high dissolved solids.
  • The Syngistix™ software offers an intuitive interface that reflects the workflow of the users with left-to-right, icon-based navigation with guidance capability through the users’ analysis. It also has a cross-platform solution, which streamlines the transition from one technique to another.
  • The system has a Triple Cone Interface with Quadrupole Ion Deflector, offering maintenance-free operation beyond the cones.

The NexION 1000 ICP-MS offers an interference-free throughput.


Source: PerkinElmer Food Safety and Quality

. .
21 CFR Part 11 Compatible Yes
Depth 69.0 cm
Height 75.0 cm
Model Name NexION 1000
Portable No
Product Brand Name NexION
Warranty 1 Year
Weight 150.0 kg
Width 81.0 cm
