Gold Nanorods Kit (Axial Diameter - 25 nm, wavelength 550-700 nm)
The physical and chemical properties of Gold Nanorods are outlined in the following. Gold nanorods are shipped in 18MÙ DI water with < 0.1% ascorbic acid and < 0.1% CTAB surfactant capping agent.

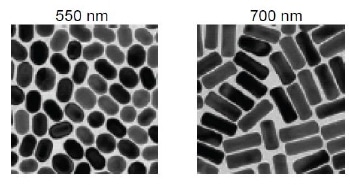

Figure 1. Representative TEMS.
Storage of Gold Nanorods
Store at 4°C. Do not freeze. CTAB, may cause a cloudy appearance at low temperatures. Before use, warm to room temperature to resuspend excess CTAB. Particularly for the larger nanorods, make sure to homogenize bottles after long storage periods to resuspend any sedimentation.
Typical Characteristics (Specifications) of Gold Nanorods
The typical characteristics of gold nanorods are outlined in the following table.
Axial diameter = 25 nm
Axial peak SSRP = 530 nm.
Table 1. Typical characteristics of gold nanorods for Catalog# 96-1530.
|
Part #
|
Longitudinal Size
(nm)
|
Peak LSPR
Wavelength (nm)
|
Wt. Conc (mg/ml)
|
LSPR Molar Ext.
(M-1cm-1)
|
SSPR Molar Ext.
(M-1cm-1)
|
|
79-6000
|
34
|
550
|
170.5
|
9.15E+08
|
5.72E+08
|
|
79-6005
|
47
|
600
|
235.1
|
1.03E+09
|
5.72E+08
|
|
79-6010
|
60
|
650
|
149.8
|
2.29E+09
|
1.14E+09
|
|
79-6015
|
73
|
700
|
91.1
|
4.58E+09
|
2.29E+09
|
SPR = Surface plasmon resonance
LSPR = Longitudinal SPR peak
SSPR = Axial SPR peak
Shape monodispersity (% rods) > 95%
Size variation +/-10% (both dimensions)
Aspect ratio variation = Peak LSPR accuracy/96
All specs typical. May vary batch to batch.
Gold Nanorods Kit
Contains 25ml of each of the following:
- 79-6000 Gold Nanorods (Axial Diameter-25nm) (Wavelength 550nm)
- 79-6005 Gold Nanorods (Axial Diameter-25nm) (Wavelength 600 nm)
- 79-6010 Gold Nanorods (Axial Diameter-25nm) (Wavelength 650 nm)
- 79-6015 Gold Nanorods (Axial Diameter-25nm) (Wavelength 700 nm).

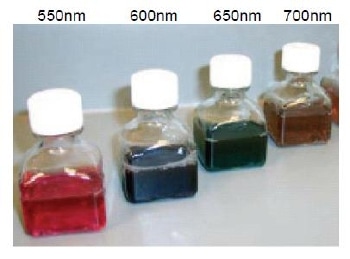

Figure 2. Gold Nanorods kit.
