Introduction
Master Bond UV10Med is a low viscosity, single component UV curable compound that features high physical strength properties. Optically clear, this product readily cures in 20-30 seconds upon exposure to UV light in the 320-365 nm range. Rate of cure depends on the compound’s distance from the light source, the thickness of the section and the intensity of the light source. UV10Med is not oxygen inhibited.

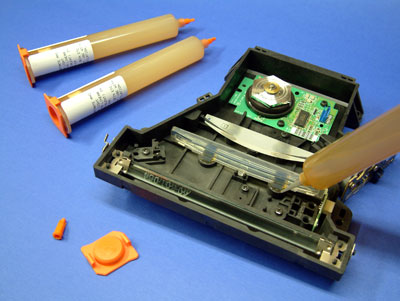

“Recently, I recommended this product for a medical application where an optical grade, low viscosity, USP class VI rated sealant with gamma radiation sterilization resistance was required. In the prototype phase, the customer evaluated a two component, high viscosity system with a long cure time. Since the customer had millions of parts to assemble, UV10MED was a great fit. It eliminated the need for mixing, and its fast cure property was extremely useful in their application.” Venkat Nandivada, Master Bond Technical Advisor.
.jpg)
Meeting USP Class VI requirements
This system fully meets USP Class VI requirements. It has high bond strength to treated metals, glass and most plastics. Adhesion to polycarbonates and acrylics is excellent. Shore D hardness is > 65. UV10Med is resistant to gamma radiation, ETO and chemical sterilants. Electrical insulation properties are outstanding. Volume resistivity is 1014 ohm cm and its dielectric constant is 3.5 at 60 Hz. It has a refractive index of 1.55.
Master Bond UV10Med has a service operating temperature range of -60°F to +250°F. Glass transistion temperature for this formulation is 65-70°C. It also offers superior dimensional stability and low shrinkage upon cure. This rapid curing compound is ideal for high production applications.
Outstanding Technical Support
With years of experience in technical support, the Master Bond team will be able to assess your application and recommend the most suitable polymer system to meet your specifications. Master Bond will continue to guide you throughout the design, prototype and manufacturing process. Master Bond offers replacements for discontinued products.
Latest Technological Advancements
As a worldwide manufacturer of polymer compounds, Master Bond is continuously working with universities and R&D labs to improve product performance. Master Bond products are designed to maximize productivity, reduce waste, save energy and for dependable, long term durability.
About Master Bond
Master Bond is a leading adhesive manufacturer offering high quality adhesives, sealants, coatings, and potting compounds. Master Bond's product line consists of epoxy adhesives, polyurethane, silicone, cyanoacrylate and latex adhesives. Master Bond's structural adhesives offer design flexibility and provide excellent bonding performance with a vast array of 3,000 custom designed adhesive formulations. Adhesive properties differ in viscosity, cure speed, chemical and temperature resistance, strength, electrical and thermal conductivity. Specific adhesive systems can be designed to meet USP Class VI certification for medical use or NASA requirements for low outgassing. Master Bond products are successfully implemented in medical, optical, aerospace, electronic, and other hi-tech industries.
