The zinc sulfide and copper indium disulfide quantum dots from Strem Chemicals are sold under a distribution agreement with UbiQD, Inc. for research purposes only. US Patent No. US9748422.
Copper Indium Disulfide/Zinc Sulfide Quantum Dots, QY >75%
CAS# 927198-36-5; Available Unit Sizes: 50 mg, 250 mg |
| Catalog # |
Peak Emission |
FWHM |
| 29-8500 |
550 nm ± 10 nm |
115 nm ± 20 nm |
| 29-8510 |
590 nm ± 10 nm |
120 nm ± 20 nm |
| 29-8520 |
630 nm ± 10 nm |
125 nm ± 20 nm |
| 29-8530 |
680 nm ± 10 nm |
130 nm ± 20 nm |
| 29-8540 |
800 nm ± 10 nm |
180 nm ± 20 nm |
| 29-8550 |
950 nm ± 10 nm |
250 nm ± 20 nm |
Advantages over Traditional QDs
- Made using safe and scalable non-injection synthesis
- Free of toxic heavy metals (for example - Cd, Pb) or phosphines
- Low self-absorption as a result of a large Stokes shift >300 meV
- Bright PL (up to >75% QY) tunable from 550 to 950 nm
- Stable PL at elevated temperature in water, air, and various composites
Use and Handling Recommendations
The products are delivered in powder form, and are soluble in non-polar solvents (for example - chloroform, toluene). Standard concentrations are ~5-200 mg/mL for a majority of applications. The dots have been cleaned by dissolution/precipitation three times to develop a dried powder. It is recommended that the product is used within 12 months of receipt.
Product Specifications
| . |
. |
| QY |
>75% |
| Material composition |
CuInS2/ZnS |
| Material Form |
Powder |
| Compatible Solvents |
Nonpolar solvents: toluene, chloroform |
| Particle Size |

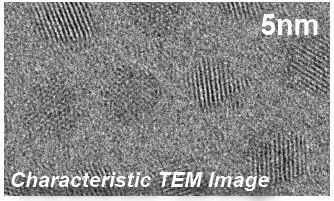

5-10 nm |
Zinc Sulfide and Copper Indium Disulfide Quantum Dots

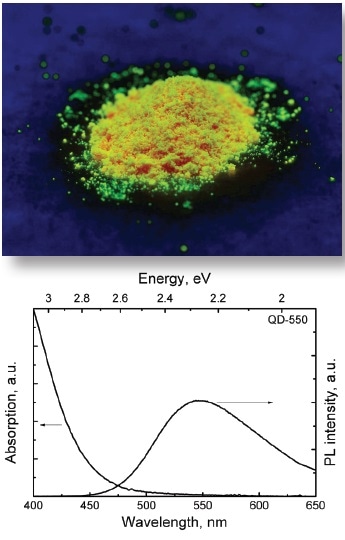

Product Image & Spectra Graph - Peak Emission: 550 nm

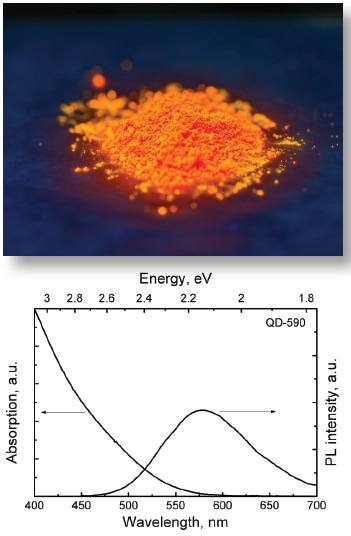

Product Image & Spectra Graph - Peak Emission: 590 nm

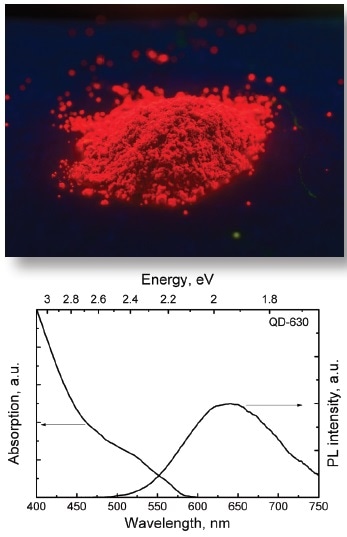

Product Image & Spectra Graph - Peak Emission: 630 nm

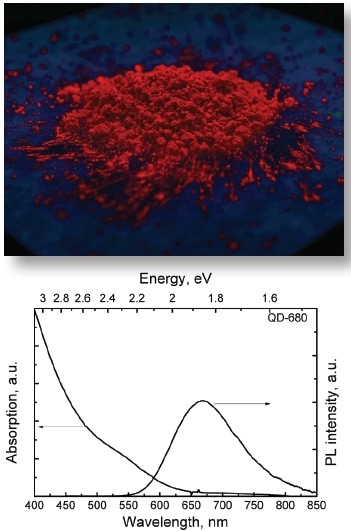

Product Image & Spectra Graph - Peak Emission: 680 nm

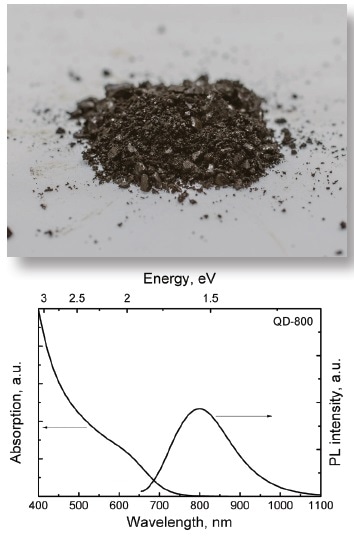

Product Image & Spectra Graph - Peak Emission: 800 nm

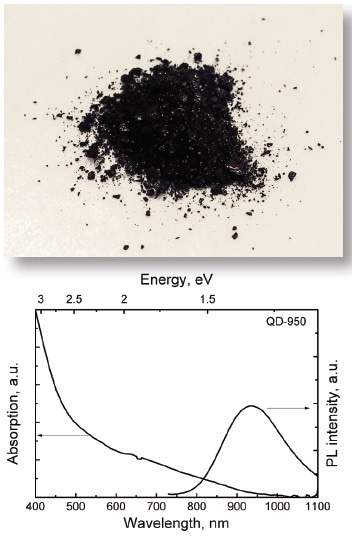

Product Image & Spectra Graph - Peak Emission: 950 nm
