High heat load (HHL) modules from Sheaumann integrate an internal TEC, a photodiode and a thermistor to resist high heat operations.
The HHL modules are hermetically sealed, electrically isolated and can integrate an array of options, such as optics for rapid-axis collimation. The proprietary laser chip design from Sheaumann provides a long lifetime and unprecedented quality. The wavelength emission range is 780 to 1070 nm. Several fiber-coupled options are also available.
Wavelength Emission Range is 780–1070 nm
HW. Image Credit: Sheaumann Laser, Inc.
Table 1. Source: Sheaumann Laser, Inc.
| Category |
Specifications |
| Dimensions |
44.5 mm L x 31.8 mm W x 18.4 mm H |
| Multimode Power |
Up to 15 W |
| Emitter Options |
50-100-150-200-400-600 μm |
HS. Image Credit: Sheaumann Laser, Inc.
Table 2. Source: Sheaumann Laser, Inc.
| Category |
Specifications |
| Dimensions |
44.5 mm L x 31.8 mm W x 18.4 mm H |
| Multimode Power |
Up to 30 W |
| Emitter Options |
50-100-150-200-400-600 μm |

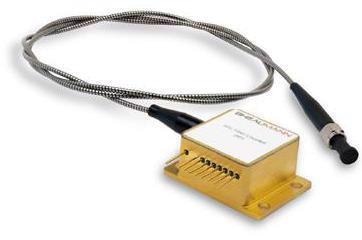

HF. Image Credit: Sheaumann Laser, Inc.
Table 3. Source: Sheaumann Laser, Inc.
| Category |
Specifications |
| Dimensions |
44.5 mm L x 31.8 mm W x 16 mm H |
| Multimode Power |
Up to 10 W |
| Emitter Options |
105/125-200/220-400/440 μm |
