Lithium-ion batteries play a key part in the global transition to sustainable energy, from electric mobility to grid stabilization and portable devices.

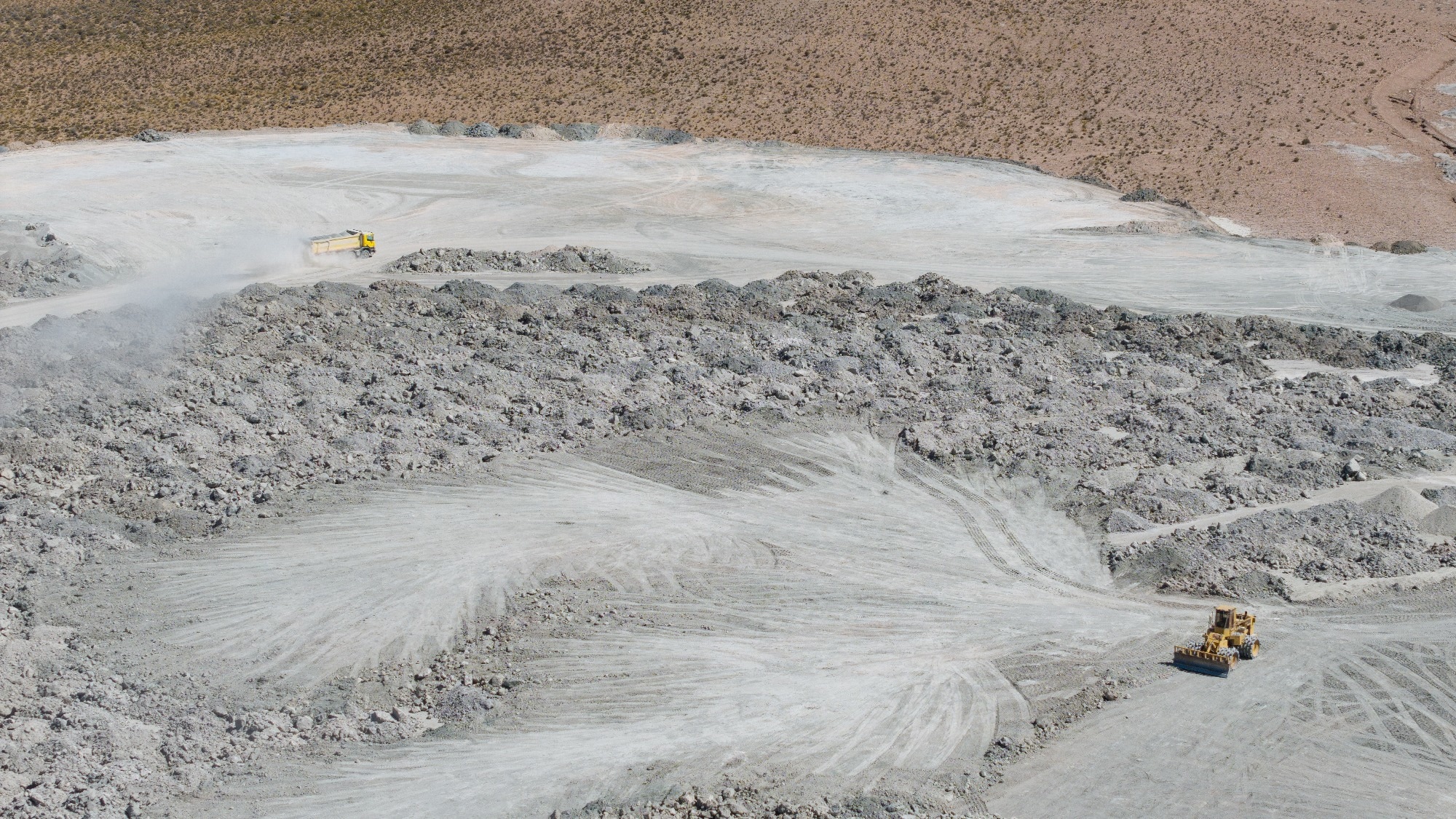

Image Credit: Sobrevolando Patagonia/Shutterstock.com
At the molecular level, their performance begins before a cathode slurry is mixed or a cell is built.
It starts with crystallization, which determines the purity, shape, and consistency of lithium carbonate and lithium hydroxide. As the industry grows, feedstocks vary, and quality requirements increase, crystallization is emerging as a vital lever for material performance and supply chain resilience.
This article examines the scientific principles, practical challenges, and contemporary analytical tools that are transforming lithium crystallization today.
It explores how the data-rich technologies, long used in pharmaceutical crystallization, are allowing battery researchers and engineers to shift away from empirical recipes and toward optimized and scalable procedures.
The Purification Challenge
In nature, lithium is rarely found in its pure condition. Lithium is derived from salar brines, hard-rock minerals, and recycled streams.
It is frequently found alongside large quantities of sodium, potassium, magnesium, calcium, iron, nickel, manganese, and other metals. Impurities can be orders of magnitude higher than lithium concentrations, which are typically in the ppm range.
Direct extraction, chemical precipitation, carbonation, and recrystallization are among the traditional processing processes used to access this ppm lithium material.
Such technologies create high-purity salts; however, they face challenges.
Inconsistent impurity profiles often occur, and varying solubility dynamics affect the functionality of these processes. Changes in morphology also have an impact on downstream manufacturing.
Many companies still use multistage purification loops as minor changes in pH, temperature, supersaturation, or mixing can affect crystal formation and impurity rejection.
The demand for lithium has increased alongside a larger drive for regionalized lithium supplies. Crystallization science is crucial for ensuring that battery-grade material is readily available at the requisite purity levels while minimizing reagent waste and energy consumption.
Turning Crystallization into a Data-Rich Science
Pharmaceutical process development has traditionally relied on real-time analytics, automation, and statistical optimization to ensure consistent crystal shape and purity. The "design through data" approach is increasingly being used in the lithium business.
Modern pilot lines use inline spectroscopies to monitor concentration and contaminants, while AI-driven analysis facilitates the identification of robust and scalable operating windows.
With these techniques, crystallization is no longer dependent on slow laboratory analyses. Researchers can observe crystals as they develop and evolve, providing direct feedback on how contaminants are rejected during the process.
In practical terms, this move shortens development periods, increases reproducibility, and allows for confident scale transitions even when feedstocks change.
Which Parameters are Critical for Battery Grade Lithium Salts?
Crystallization performance is based on a few tightly related parameters:
Purity and Impurity Rejection:
To achieve battery-grade criteria, lithium salts must be more than 99 % pure. Achieving selectivity without producing excessive fines or losing yield requires careful navigation through supersaturation and dissolution-recrystallization cycles.
pH Stability:
Even a ±0.1 pH unit change in carbonate or hydroxide crystallization can affect morphology, agglomeration, particle growth rates, and slurry rheology.
Particle Size and Morphology:
Uniform, well-defined crystals lead to predictable slurry behavior and improved coating consistency. Controlling needle-like or plate-like behaviors is a requirement for avoiding agglomeration or poor flowability.
Supersaturation and Kinetics:
The balance of nucleation and growth significantly impacts particle size distribution. Temperature and concentration profiles must be precisely maintained.
Metal Contaminants:
Metal contaminants, including trace transition metals and particles, pose safety and performance hazards that necessitate ongoing monitoring.
Water Content:
Measuring residual moisture is essential in lithium hydroxide, as it impacts storage stability and compatibility with high-nickel cathodes.
Carbonate or Hydroxide? Two Distinct Crystallization Pathways
Lithium carbonate has inverse temperature solubility, meaning it dissolves more readily in cold water and crystallizes when heated. This feature allows for a strong purification method that uses cold dissolving followed by heat crystallization to selectively produce supersaturation.
Achieving high purity and acceptable morphology requires precise control of temperature cycling, residence time, pH, and mixing intensity.
When optimized, contaminants remain in the mother liquor while well-formed carbonate crystals nucleate and expand.
Lithium hydroxide is often generated by metathesis of lithium carbonate with calcium hydroxide, while direct extraction and conversion methods are emerging. Hydroxide introduces additional challenges, including hydrate formation, violent reactivity, and a significant tendency to agglomerate.
These issues require real-time monitoring, as minor discrepancies can lead to substantial variations in handling, drying, and cathode slurry integration.
Optimizing Crystallization in Real-time
The introduction of integrated, inline analytical methods has been a primary driving force in lithium crystallization advances.
METTLER TOLEDO's automated chemistry portfolio is an example of the technologies that now allow academics to monitor crystallization with clarity that was not possible a decade ago.
Infrared (IR) Spectroscopy
IR spectroscopy provides continuous, noninvasive concentration measurements throughout the dissolution and crystallization stages. Tracking fundamental absorbance changes enables researchers to evaluate reaction progress, saturation levels, and endpoint behavior in real-time.
Raman Spectroscopy
In situ Raman allows for highly specific identification of pollutants, structural stages, and competing species. It is increasingly being utilized in both manufacturing and recycling to provide impurity control and environmental compliance.
EasyViewer™ for Particle Morphology
EasyViewer combines high-resolution microscopy with quantitative image analysis, so users can visualize crystal structure, transparency, and growth behavior directly within the crystallizer. This is useful for preventing the creation of fines, reducing aggregation, and directing morphology towards desired habits.
Chord Length and Particle Size Monitoring
Inline laser-based chord length sensors supplement microscopic techniques by providing continuous data on particle size distribution, allowing researchers to create a quantitative fingerprint of how morphology changes minute by minute.
Together, these techniques enable the assessment of crystallization to move from periodic sampling to full-process visibility.
Achieving Performance, Sustainability, and Scalability Targets
The impact of enhanced crystallization processes extends fully to the completed battery. Higher purity and tighter particle size distributions lead to improved cathode homogeneity, enhanced mechanical stability, extended cycle life, and reduced defect rates.
Real-time analytics improves research cycles and also shortens the scale-up timetable, making it easier for producers to adapt processes to new feedstocks or changing specifications.
More efficient crystallization saves reagents, generates less wastewater, and consumes less energy. It also facilitates the transition to localized resource processing.
This technique allows for the use of low-grade or unconventional feedstocks. Inline analysis reduces human exposure to caustic solutions, which is crucial for safety. Additionally, it minimizes the likelihood of off-spec material entering production.
Conclusion
As battery demand rises, the crystallization of lithium carbonate and hydroxide is becoming a strategic focus for quality, affordability, and supply chain resilience. Researchers and engineers can achieve greater control over crystallization outcomes by combining scientific knowledge with pharmaceutical-inspired development approaches.
This can also be achieved through the use of contemporary, real-time analytical technologies. These tools include in-line infrared spectroscopy, Raman spectroscopy, particle morphology imaging, chord length analysis, and automated pH control.
The result is cleaner, more consistent lithium salts; faster, more confident scaling up; and a stronger, more sustainable base for new energy storage technologies.
