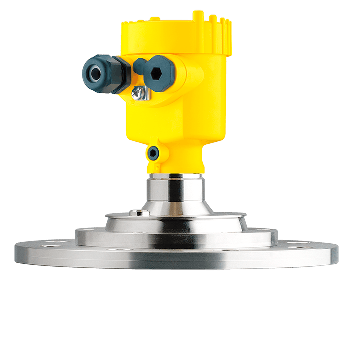

Radar Sensor for Solid Level Measurement in Varying Vessel Heights

The VEGAPULS 69 sensor is used to continuously measure bulk solids under different process conditions present in a wide range of vessel height sizes. Ideal applications of this sensor involve level measurement within very high silos, large bunkers and segmented vessels.

The VEGAPULS 69 exhibits exceptional signal focusing properties, a simple setup process and reliable measurement capabilities. When an encapsulated plastic or lens antenna is integrated into the metal flange of this product, the VEGAPULS 69 can achieve optimum adaption to various application areas.

Product Benefits

  • All measuring results are independent of vapor, dust and noise
  • High plant availability due to the following properties:
    • Wear-free
    • Maintenance-free
  • Maintenance-free operation through non-contact measuring principle

Technical Data

  • Measuring range (Distance): 120 m
  • Process Temperature: Range -40 °C – 200 °C
  • Process Pressure Range: - 1 – 20 bar

Radar Sensor for Solid Level Measurement in Varying Vessel Heights

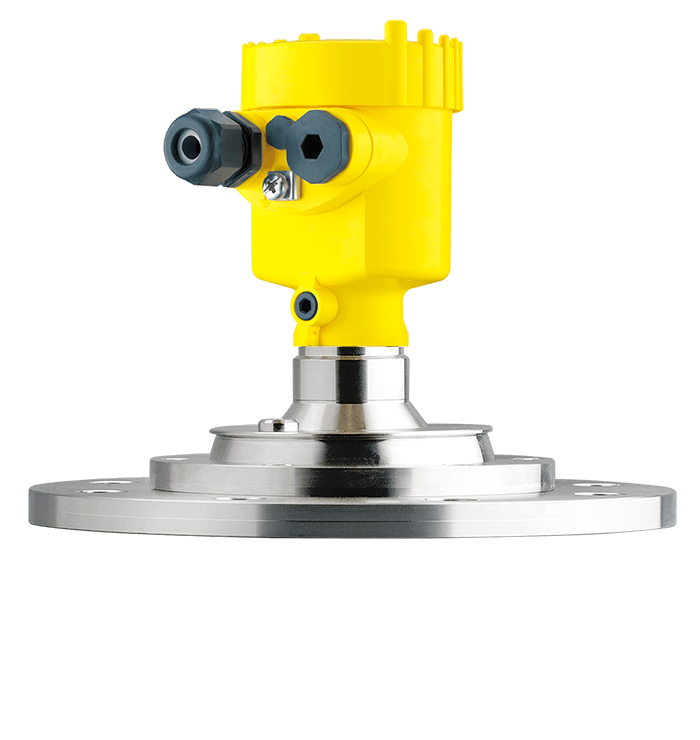

High-quality, swivelling stainless steel flange

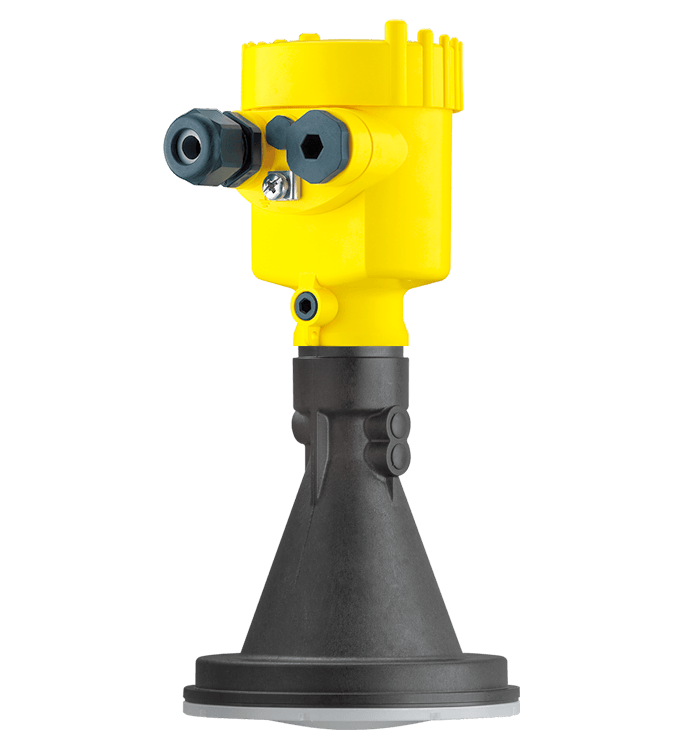

Lightweight plastic antenna

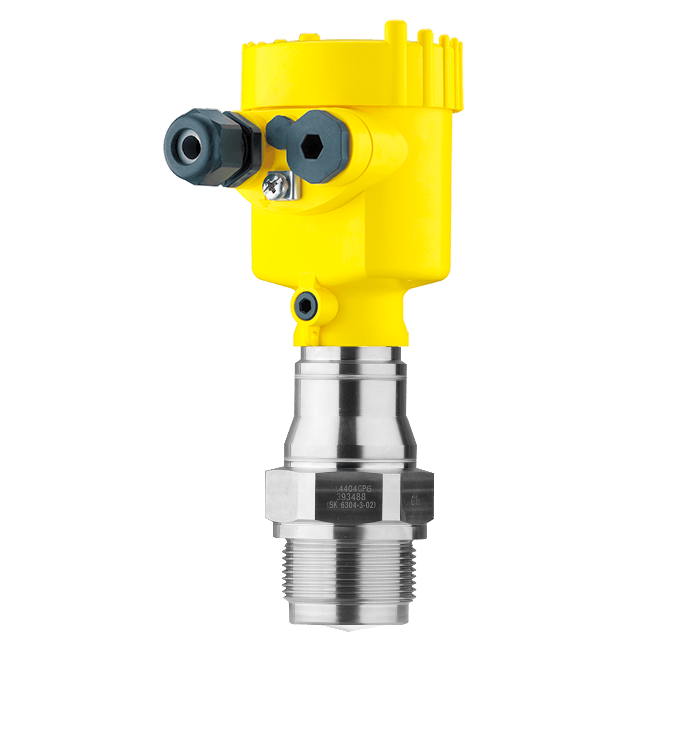

Thread with integrated horn antenna
