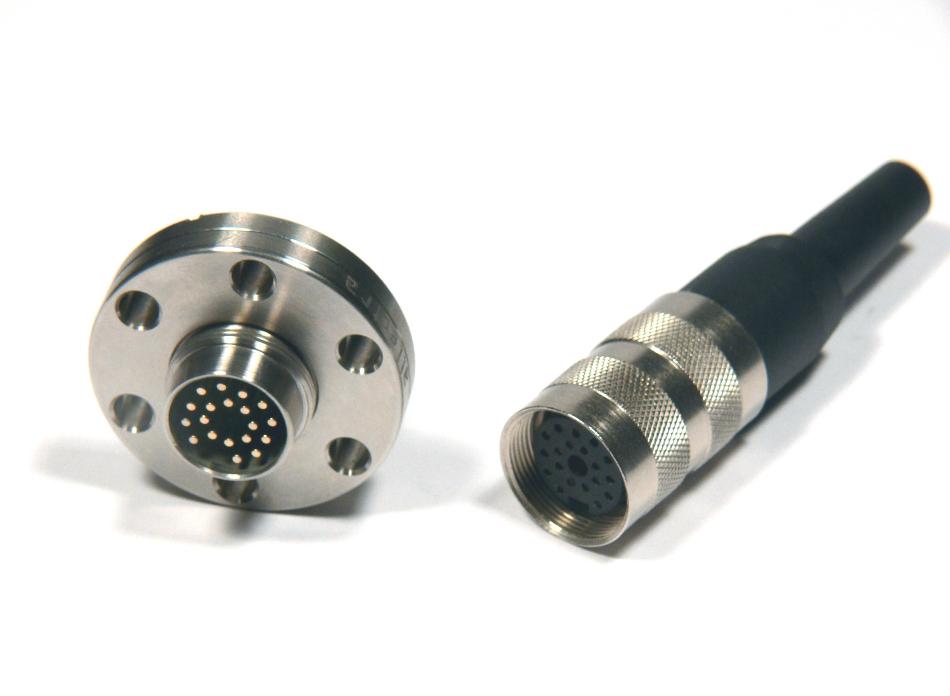

Circular Miniature Feedthroughs available from Allectra come in two different versions and enable a high density of contacts over a small space. For a DN16CF Flange, 12- and 19-pin versions are available.
The air side connector is screwed onto the feedthrough. A comprehensive shielding is provided by an optional metal housing that includes strain relief. On the vacuum side, a PEEK connector with crimp-pins is mounted. It is also possible to solder the pins.
General Specifications
| |
CM12 |
CM19 |
| System-Standard |
IEC60130-9 |
| Part. Number of Feedthrough |
220-CM12-C16 |
220-CM19-C16 |
| Number of contacts |
12 |
19 |
| Pin-Diameter |
1 mm |
1 mm |
| Voltage Rating (Test value) |
500 V DC |
500 V DC |
| Design voltage |
60V |
60V |
| Max. Current (at room temp.) |
3A |
3A |
| Contacts |
Gold plated |
Gold plated |
| Leak rate |
<5x10-10 mbar l/s |
Temperature Range of Feedthrough
(including vacuum-side plug) |
-40 °C ... 220 °C |
| Temp. Range air-side Plug |
-25 °C ... 70 °C |

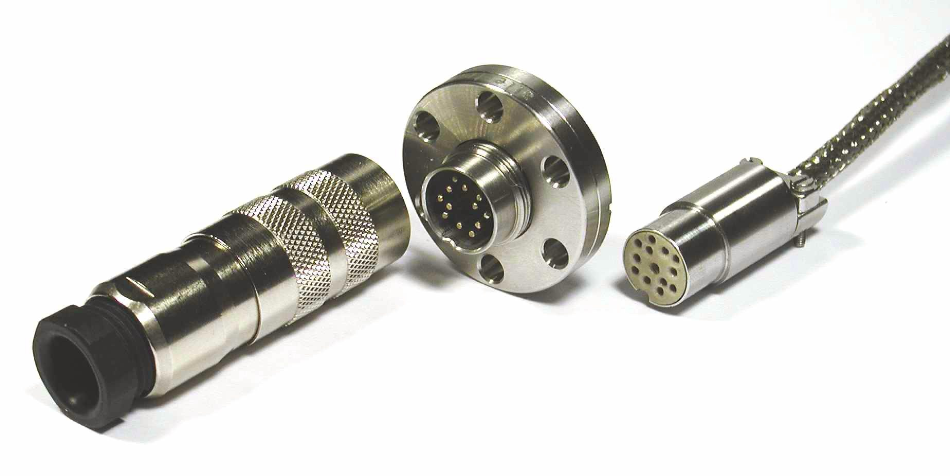

Complete System: Air side connector, feedthrough, vacuum side connector with metal housing and strain relief shown with a shielded in-vacuum cable.
These feedthroughs are provided not only on KF25 and CF16 flanges and their bigger variants but also on custom and ISO-K flanges. Also available are weldable versions with 21.2 mm ø. It is feasible to mount CM feedthroughs in combination with other types (high voltage, coaxial, etc.).
