A Schiff Base Nickel Complex. A New Material as Modifier for Selective Electrodes

Perla Elizondo Martínez, Blanca Nájera Martínez and Cecilia Rodríguez de Barbarín



Copyright AD-TECH; licensee AZoM.com Pty Ltd.

This is an AZo Open Access Rewards System (AZo-OARS) article distributed under the terms of the AZo–OARS http://www.azom.com/oars.asp which permits unrestricted use provided the original work is properly cited but is limited to non-commercial distribution and reproduction.



AZojomo (ISSN 1833-122X) Volume 2 April 2006

Topics Covered

Abstract

Keywords

Introduction

Experimental

Synthesis of N,N´-Bis(2-nitrobenzyl)ethylendiimine (L1)

Complexation reaction

Measurement of the Equilibrium Constants

Modification of Electrodes

Results and Discussion

Acknowledgements

References

Contact Details

Abstract

Our interest in Environmental Chemistry has prompted us to design new materials containing polyfunctional units able to bind certain metallic ions.  These materials can be used as modifying agents to produce chemically modified electrodes. We expect to facilitate the detection of organic pollutants in water by binding these materials to an electrode surface.  We report a Ni(II) and Co(II) complexes prepared from the Schiff base macroligand N,N´-bis(2-nitrobenzyl)ethylendiimine (L1) with Ni(II) salt and L1 with Co(II) salt.  The nature of the complex was established by common spectroscopic techniques.  A thermal gravimetric analysis of the complex showed that it is thermodynamically stable. Its formation constant was obtained by conductimetric analysis (Kf = 1.25x106).  The affinity of L towards Ni(II) and Co(II) was determined by atomic absorption.  The electrochemical study of the complex [Ni(II)-L1]SO4 was also performed by the cyclic voltammetry technique.  The results showed that, under certain conditions, this complex is capable of polymerizing on the electrode surfaces made of vitreous carbon and indium tin oxide.  The chemical modification on the surface was probed by exploring the cyclic voltammograms, which showed oxidation and reduction peaks that are characteristic of the Ni(II)/Ni(III) pair.  The sensing capability towards 2,4-dichlorophenol of these modified electrodes is currently under study.

Keywords

Schiff base Ni(II) complex, electrodes, modifiers

Introduction

There has been a considerable effort in recent years towards the preparation of new materials containing polyfunctional units (ligands) able to bind metallic ions.  The Schiff base macroligands [1-6] are synthesized from the reaction of dialdehydes and amino compounds.  Given that these materials form stable complexes, they provide the opportunity to design new systems selective to specific metallic ions.  These materials could be applied in different areas such as electrochemistry, bioinorganic, catalysis, metallic deactivators, separation processes and environmental chemistry among others [7-9].

New Schiff base [2, 4, 10-11] macroligands have been synthesized to study their selectivity towards complexation of different metallic ions.  These newly synthesized compounds are also used as precursors for the formation of other acyclic and cyclic ligands.

Complexes of Schiff base ligands with structural similarities to phtalocyanines (N4-macrocycles) [7, 12-14], and other related compounds [15-20], are currently used as modifiers of the active surface of electrodes to improve their catalytic activity in the selective detection of organic pollutants [15, 21-24] and the entrainment of metals.  Along the same line, our interest is to evaluate the capability of N,N’-bis(2-nitrobenzyl)ethylendiimine L1 (Figure 1), to bind diverse metallic ions such as Ni(II) and Co(II), and carry out selectivity studies.  These complexes are later studied to test their potential in the development of chemically modified electrodes for use in pollutant detection.

AZoJomo - The AZO Journal of Materials Online - Structural Formula of the ligand N,N’-bis(2-nitrobenzyl)ethylendiimine (L1).

Figure 1. Structural Formula of the ligand N,N’-bis(2-nitrobenzyl)ethylendiimine (L1).

The selectivity studies showed that the complex [NiL1]SO4 is very stable at Standard temperature and pressure.  It is currently being tested as a possible modifier of the active surface of an electrode.  Under certain specific conditions this compound has been electrochemically polymerized over a vitreous carbon (VC) surface and over a glass surface covered with indium tin oxide (ITO) respectively.  These chemically modified electrodes are being tested for the detection and degradation of organochlorinated pollutants.

Experimental

All the reactants used to obtain the ligands and their corresponding complexes were analytic grade from Sigma-Aldrich Chemical Company Inc, USA.

Synthesis of N,N´-Bis(2-nitrobenzyl)ethylendiimine (L1)

L1 was obtained by a condensation of a Schiff base according to a procedure previously reported, [3].  The nature of this compound was probed by infrared (IR) spectroscopy, and Nuclear Magnetic Resonance (NMR) and by melting point.

Complexation reaction

The ligand L1 was mixed directly in a refluxing solution with Co(II) and Ni(II) sulfates in equimolar amounts in acetonitrile.  The corresponding complexes were characterized by IR spectroscopy and thermogravimetric analysis.

The IR spectrum of the ligand shows a band at 1637 cm-1 corresponding to the imine group.  The spectra of the complexes Ni(II)-L1 and Co(II)-L1 are consistent with the presence of the imine group showing the same band.  It was also observed a shift of the bands corresponding to nitro groups along with a decrease in their intensity.  This displacement suggests the presence of a heteroatom-M bond.  The spectra also show an intense band around 1080 cm-1 corresponding to the sulfate ion.

A solution of Ba(II) and Pb(II) was added to both complexes and an instantaneous precipitation occurred, suggesting that the sulfate ion is outside of the coordination sphere.

Measurement of the Equilibrium Constants

The formation constants for the complexes of Ni(II) and Co(II) with L1 were determined by conductimetry.  Conductivities were measured for a series of solutions of each complex using an Orion conductimeter model 162.  The formation constants are expressed in molar concentration at 25oC.

Modification of Electrodes

The electrochemical studies of the complex [Ni(II)- L1]SO4 were performed with a conventional three-electrodic potentiostatic system (CV-50W/ LG-50) (BAS)). The working electrodes were either a vitreous carbon electrode (VC) (BAS) of 3 mm diameter polished prior to all experiments, or an indium tin oxide (ITO) electrode.  The potentials were measured with reference to the Ag/AgCl(s), KCl (BAS) electrode, placed in a compartment containing the supporting electrolyte.  All the experiments were performed at room temperature.

Table 1. Infrared data for N,N’-bis(2-nitrobenzyl)ethylendiimine (L1), [NiL1]SO4 and [CoL1]SO4.

Compound

–NO2 Group

u cm-1

>C=N

u cm-1

–C=O and –NH2 Groups

u cm-1

Sulfate ion

u cm-1

L1

1335 , 1516 (s)

1637

Absent

Absent

Ni-L1

1350 , 1530 (w)

1630

Absent

1080

Co-L1

1347-1527 (w)

1637

Absent

1130

Results and Discussion

The ligand L1 was obtained as yellow crystals with 83% yield.  This yield was higher than the results reported in the literature [3].

The nature of the ligand was established using IR and NMR spectroscopy as well as analysis of monocrystal X- ray diffraction.  The results of the IR analysis verify that the condensation reaction of the Schiff base was successful.  The previous assumption was based on the presence of bands corresponding to the imine group at 1637 and the nitro group at 1335 and 1516 cm-1 as well as absence of the characteristic signals of the carbonyl and amine L1 groups, as can be seen in Table 1.

The spectrum 1H NMR of the diimine ligand (L1) presents signals in the interval of 8.75-8.85 ppm corresponding to CH=N.  This signal proves the integrity of the product. (Figure 2).  The resonance data of the ligand are consistent with the proposed structure.

AZoJomo - The AZO Journal of Materials Online - 1H NMR spectrum for N,N’-bis(2-nitrobenzyl)ethylendiimine (L1).

Figure 2. 1H NMR spectrum for N,N’-bis(2-nitrobenzyl)ethylendiimine (L1).

A single crystal of L1 for XRD studies was obtained.  The Figure 3 shows the molecular structure of L1, it belongs to the monoclinic system.  The Crystallographic data for L1 is reported in Table 2.

AZoJomo - The AZO Journal of Materials Online - Monoclinic structure of L1 determined by monocrystal X-Ray diffraction

Figure 3. Monoclinic structure of L1 determined by monocrystal X-Ray diffraction.

The interaction of Ni(II) and Co(II) with the ligand L1 was investigated.  The complexes were obtained from direct reaction between the metallic ions and the ligand using acetonitrile as solvent.  The compounds showed different colors and were obtained with a 45 - 48% yield.

Table 2. Crystal data for N,N’-bis(2-nitrobenzyl)ethylendiimine (L1).

Empirical formula

C8H7N2O2

Color and shape

Yellow, prismatic

Crystal size

0.36 x 0.20 x 0.12 mm

Crystal system

Monoclínico

Space group

P21/c

Unit cell dimensions

a =7.4290(10) Å

b= 15.503(2) Å

c= 7.083(10) Å

α= 90.00o

β= 108.65o

γ= 90.00o

Volumen (U/ Å3)

772.93(18)

Formula weight

652.622

Density (calculated)

1.402 mg/m3

With respect to the IR data for the complexes, they were consistent with the presence of the imine group.  Each complex exhibited a band between 1630 and 1637 cm-1.  A shift and an intensity decrease of the bands of the nitro groups could also be observed.  This suggests the presence of a heteroatom-M bond.  The spectra also showed a band between 1080 and 1130 cm-1 which corresponds to the sulfate ion.  The instantaneous precipitation of the sulfate ions upon addition a solution of Ba(II) and Pb(II) suggests that the sulfate is outside of the coordination sphere.

The selectivity studies were carried out by atomic absorption.  Table 3 shows the results which illustrates the preferences of the ligand to Ni(II) and Co(II) ions.

Table 3. Selectivity Studies of the ligand L1 toward the Co(II) and Ni(II) ions determined by Atomic Absorption.

Complex

Color

Molar % non complexed metal

Complex

[NiL1]SO4

Blue.

2.44

[NiL1]SO4

[CoL1]SO4

Light pink

3.88

[CoL1]SO4

The conductimetric analysis for the complexes (shown in Tables 4 and 5) provide Kf = 1.25 x 106 for [NiL1]SO4 and 5.6 x 105 for [CoL1]SO4, these values show that the Ni(II) complex is slightly more stable than Co(II) complex.  The results are in agreement with the stability reported in the literature for a series of complexes of Ni(II) and Co(II) based on their ionic radius [25]. A change of color at 87oC was observed while measuring the melting point of Ni(II)-L1 complex.  This temperature is lower than 100oC, therefore one could think that such change in color is the result of the loss of non-essential water (hygroscopic or hydration type).  The compound remained stable until 300oC where it begins to decompose.

Table 4. Determination of the Formation Constant of [NiL1]SO4 by Conductimetry.

Concentration M
[NiL1]SO4

Conductivity
μS/m

Equivalent Conductivity
∧eq

C∧

1/∧

5x10-4

1180

2360

1.18

4.24x10-4

2x10-4

930

4650

0.93

2.15x10-4

8x10-5

650

8125

0.65

1.23x10-4

3x10-5

420

14000

0.42

7.14x10-5

2x10-6

350

175000

0.35

5.71x10-6

Kf = 1.25x106

Table 5. Determination of the Formation Constant of [CoL1]SO4  by Conductimetry.

Concentration M

[CoL1]SO4

Conductivity

μS/m

Equivalent Conductivity

∧eq

C∧

1/∧

2x10-4

2300

4600

2.3

2.174*10-5

4x10-5

1180

2360

1.18

2.119*10-5

8x10-6

930

4650

0.93

1.344*10-5

2x10-6

650

8125

0.65

9.615*10-6

Kf = 5.60 x105

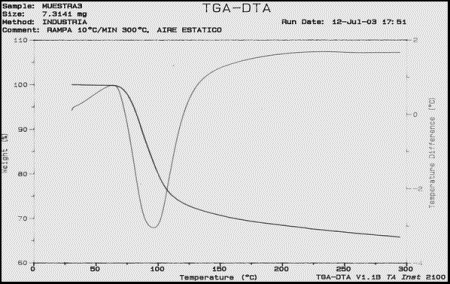

The thermograms from thermal studies performed on the complex [Ni(II)-L]SO4 are shown in Figure 4.  These results show a loss of weight at approximately 90oC and also an endothermal peak at the same temperature.  It can be thought that the complex loses hygroscopic and/or crystallization water at around 90oC (i.e. not directly bonded to the central metal ion).  Latter can be demonstrated with the color changes of the compound, that it was due to the loss of water molecules.

AZoJomo - The AZO Journal of Materials Online - Thermograms of the complex [Ni(II)-L1]SO4

Figure 4. Thermograms of the complex [Ni(II)-L1]SO4.

The alternatives previously mentioned for the case of the complex [Ni(II)-L1]SO4 could be possible because the Ni can form stable complexes acting with a coordination number of 4 or 6.  Nevertheless, the chances of the water being coordinated at that temperature where the loss of weight occurs, are very small.

Electrochemical studies were carried out on the complex [NiL1]SO4 and it was possible to polymerize this compound on the surface of vitreous carbon (VC), and indium tin oxide (ITO) electrodes.  The studies were made using cyclic voltammetry in sweeps of 30 cycles.  The chemical modification on the surface of the electrodes was proved by the presence of oxidation and reduction peaks which are characteristic of the Ni2+/Ni3+ redox pair.  Different conditions were tested regarding sweep velocity and pH with the main aim of chemical modification for both electrodes.  According to the obtained voltammograms, the best conditions were found at pH 10 and a sweep velocity of 250 mV/s as shown in Figures 5 and 6.

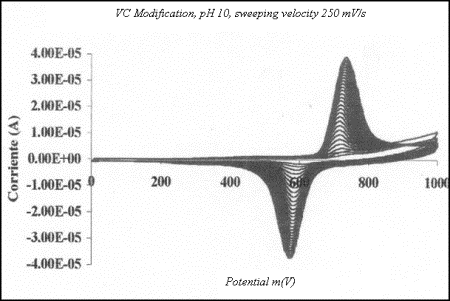

AZoJomo - The AZO Journal of Materials Online - Modification of VC, pH 10, sweep velocity 250 mV/s, 30 cycles, solution 1 mM [Ni(II)-L1]SO4, 0.1 M Na2SO4, sweep of potential from 0 to1000 mV.

Figure 5. Modification of VC, pH 10, sweep velocity 250 mV/s, 30 cycles, solution 1 mM [Ni(II)-L1]SO4, 0.1 M Na2SO4, sweep of potential from 0 to1000 mV.

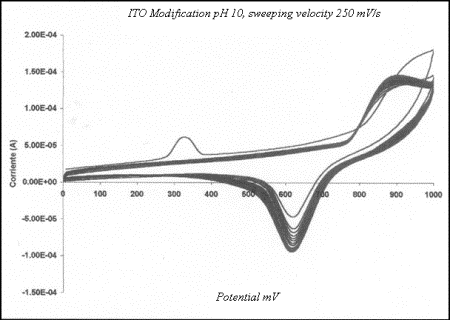

AZoJomo - The AZO Journal of Materials Online - Modification of ITOP, pH 10, sweep velocity 250 mV/s, 30 cycles, solution 1 mM [Ni(II)-L]SO4, 0.1 M Na2SO4, sweep of potential from 0 to1000mV.

Figure 6. Modification of ITOP, pH 10, sweep velocity 250 mV/s, 30 cycles, solution 1 mM [Ni(II)-L]SO4, 0.1 M Na2SO4, sweep of potential from 0 to1000mV.

Conclusions

According to the results obtained, the Schiff base condensation is adequate for the synthesis of the ligand L1.

The thermal gravimetric analysis and the formation constants for Ni(II)-L1 (Kf =1.25 x106) and Co(II)-L1 (Kf = 5.60 x105) suggest that both complexes are thermodynamically stable.

The selectivity studies show that L1 has greater affinity towards Ni(II) than Co(II).

The complex [NiL1]SO4 is electrochemically polymerized modifying the active surface of vitreous carbon and ITO electrodes.  The results from the analysis show that the modification is favored on the VC conductor more than ITO conductor under the following conditions: pH 10, sweep velocity 250 mV/s, 30 cycles.  Solution 1 mM [Ni(II)-L1]SO4, 0.1 M Na2SO4, sweep of potential from 0 to 1000 mV.

The voltammograms suggest that a film of Ni(II) complex is formed because of the  anodic oxidation of Ni(II)-L1.

According to the preliminary results the VC modified electrode it can detect organo chlorinated compounds nevertheless, it is necessary to carry out more studies in order to obtain the best conditions for detecting the organic pollutants.

Acknowledgements

We thank to PAICyT and Facultad de Ciencias Químicas de la Universidad Autónoma de Nuevo León for financial support The authors also aknowledge Perla Martínez for carrying out some of the experiments and Leonor Blanco and Olga Espinosa for the Cyclic Voltammetry studies.

References

1.       H. Adams, R. M. Bucknal,  D. E. Fenton C.O. Rodríguez. M. García and J. Oakes, “Copper(II) Complexes of Schiff Base Ligand Derived from 2-(2-pyridylmetyyl)-1,3-propanediamine”, Polyhedron, 17, [21] (1998) 3803-3808.

2.       B. Nájera, Schiff base Macrocycle Ligands and their Complexes, University of Sheffield, thesis for the Degree of the Doctor oh Philosophy, U.K. (1999).

3.       H. Adams, N. A. Bailey,  D. E. Fenton, S. Kitchen and B. Nájera, “The Interaction of Cu(II) and Ni(II) with a pyridinyl-derived N4 Macrocycle”, Anales de Química., 93 (1997) 88-92.

4.       D E .Fenton and B.Nájera, “A new Expanded Schiff Base Cryptand”, J. Coordination Chemistry, 54 (2001) 239-246.

5.       A. M. Atria, Y. Moreno, E. Spodine, T. Garland and R. Baggio, “A Discrete Dinuclear Cu(II)-Gd(II) Complex Derived from a Schiff Base Ligand, [CuGd(ems)(NO3)3H2O]Cu(ems)(ems:N,N´-ethylene-bis-5-methoxy salicylaldiimine),  Inorganic Chimica Acta, 335 (2002) 1-6.

6.       Y. Sunatsuki, Y. Motoda and N. Matsumoto, “Copper(II) Complexes with Multidentate Schiff Base Ligands Containing Imidazole Groups: ligand-Complex or Self-Complementary Molecule”, Coordination Chemical Reviews, 226, [1-2] (2002) 199-209.

7.       F. Bedioui, G. Gutierrez, and C. B. Charreton, “Metalloporphyrin, Metallophtalocyanine and Related Macrocycle Complex-Base Film Modified Electrodes: Review of Selected Significant Designs and Applications to the Electrochemical Detection of Pollutants”, Recent Res Devel. Electrochemical, Reviews París., 2 (1999) 91-108.

8.       S. Trevin, F. Bedioui, M. G. Gómez, and C. B. Charreton, “Electroplymerized Nickel Macrocyclic Complex-Bases Films Design and Electrocatalytic Application”, J. Mater. Chem., 7 [6], (1997), 923-928.

9.       A. Campos, J. R. Anacona and M. M. Campos, “Synthesis and IR Study of a Zn(II) Complex Containing a Tetradentate Macrocyclic Schiff Base Ligand Antifungal Properties”,  Main Group Met. Chem., 22 (1999) 283-288.

10.   H. Adams and B.A. Nájera, “The Interaction of Ag(I), Zn(II) and Pb(II) with a Pyridinyl-Derived N5-Macrocycle”, J. Coord. Chem., 56, [14] (2003) 1215-1222.

11.   L. Valencia, H. Adams, R. Bastida, A. de Blas D. E. Fenton, A. Macías, A. Rodríguez and B. Rodríguez, “Synthesis and Characterization of Cobalt, Nikel, Zinc and Cadmium Compounds with a Pyridine-Derived N3O2 Macrocycle: Cristal and Molecular Structures of the Macrocyclic Ligand and Co(II), Ni(II), and Zn(II) Complexes”, Inorganic Chimica Acta., 300 (2000)  234-242.

12.   E. Trollund, P. Ardiles, M. J. Aguirre, S. Biaggio, and R. C. Rocha, “Spectroelectrochemical and Electrical Characterization of Poli(cobalt-tetraaminophthalocyanine)-modified Electrodes: Electrocatalytical Oxidation of Hidrazine”, Polyhedron, 19, [22-23] (2000)  2303-2312.

13.   N. R Armstrong, “Porphyrins and Phthalocyanines as Materials” J. of Porphyrins and Phthalocyanines; 4, [4] (2000) 414-417.

14.   M. Ebadi and A. B. P. Lever, “Electroreduction of Nitrite Catalyzed by a Dinuclear Ruthenium Phthalocyanine Modified Graphite Electrode”, J. of Porphyrins and Phthalocyanines; 7, [8] (2003) 529-533.

15.   Alatorre, J. Manrique, F. J. Acevedo, S. Gutiérrez and F. Bedioui, “ Electrocatalysis of the Reduction of Organic Halide Derivatives at Modified Electrodes Coated by Cobalt and Iron Macrocyclic Complex-Based Films: Application to the Electrochemical Determination of Pollutants” Analusis, 28 (2000) 238-244

16.   T. Hasobe, H. Imahori, K. Ohkubo, H. Yamada, T. Sato, Y. Nishimura, I. Yamazaki and S. Fukusumi “Structure and Photoelectrochemical Properties of ITO Electrodes Modified with self-assembled Monolayers of meso. Meso-linked Porphrin Oligomers”, J. of Porphyrins and Phthalocyanines, 7, [5] (2003) 296-301.

17.   C. D Natale, R. Paoelesse, A. Macagnano, A. Mantir, P. Mari. and A.D. Ámico,” Qualitative Structure-Sensitivity Relationship in Porphyrins Based QMB Chemical Sensors” Sensors and Actuoators B: Chemical, 68, [11-3] (2000) 319-323.

18.   J. Losada, I. Del Peso and L .Beyer, “Electrochemical and spectroelectrochemical Properties of Copper(II) Schiff Base Complexes”  Inorganic Chimica Acta,; 321, [1-2] (2001) 107-115.

19.   G. Brewer, P. Kamaras, L May, and S. Prytkov, “Synthesis and Characterization of Iron(III) Complexes of N4 Schiff Base Macrocycle”, Inorganic Chem. Comunnications, 2, [1] (1999) 3-6.

20.   M. Shamsipur, M. Yousefi, G. M. Reza, and M, Faal-Rastgar, “Higly Selective Sulfate PVC-Membrane Electrode Based on 2,5-diphenyl-1,2,4,5-tetraaza-bicyclo[2,2,1] heptaneas a Neutral Carrier”  Sensors and Actuoators B: Chemical, 82, [1] (2002) 105-110.

21.   J. Manrique, J. L. Bravo, S. Gutiérrez, A. Alatorre and F. Bedioui, “Electroformation de Films de Macrocomplexes de Nickel en Solution Aqueuse Alkaline: Application á la Détection de Derives Phénoliques et Alcooliques” Journées d´Electrochimie, 01-04, Tolouse, France  (1999).

22.   F. Bedioui and J. Devynck, “Immovilization of Metalloporphyrins in Electropolymerized Films: Design and applications”, Acc. Chem. Res., 28 (1995) 30-35.

23.   A. Alatorre, F. J. Acevedo, S. Gutiérrez and F. Bedioui, “Electroformación de Películas de Macrocomplejos de Níquel. Aplicación a la Electrocatálisis de la Oxidación de Fenoles”, Soc. Chil. Quim., 43, [4] (1998) 375-390.

24.   S. J. Ferrer, S. Gutiérrez, F. Bedioui and A. Alatorre, “Amperometric Detection of Urea in Aqueous Solution by Poly(Ni-cyclam) Film-modified Glassy Carbon Electrode “, Electroanal, 15 (2003) 70-74.

25.   M. Bernard, Course de Cimie Minérale (2ª Edition, Dunod,), París, (1994) 369-380.
