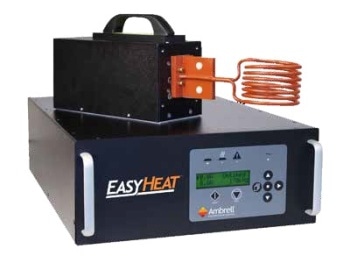

The EASYHEAT LI induction heating systems from Ambrell are a dependable, compact solution for heating parts with a fast, clean source of heat. With a movable workhead that can be positioned up to 3 m (10’) from the power supply, it is suitable for repeatable, non-contact heating of parts.
Designed to function over a broad frequency range (150-400 kHz), the EASYHEAT is suitable for heating parts of many compositions and geometries with precise power control within 50 W resolution.

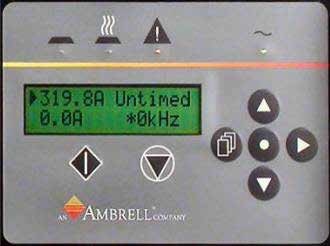

Time-consuming changeovers can be avoided with agile tuning for single-cycle and non-stop heating operations. A single system can supply deep, bulk heating for brazing and soldering for more shallow, concentrated heating for case-hardening for smaller parts. Flameless, non-contact induction heating reduces energy waste by directing energy solely on the part and zone to be heated. Power levels can be selected and monitored from the front panel LCD and sealed touchpad. Remote power control is available for employing analog inputs, contact inputs, or optional serial data port. With a built-in programmable digital timer, the length of the heating cycle can be easily controlled.

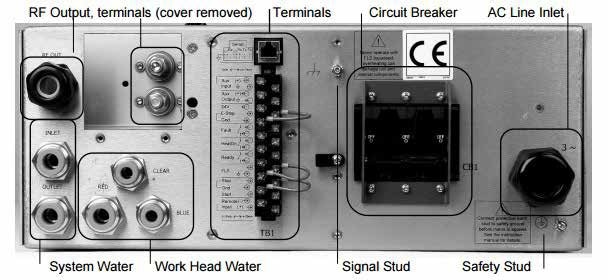

The EASYHEAT LI is a water-cooled system that needs connection to a heat exchanger or other means for dissipating heat.
Versatile
- Repeatable, reliable heating with agile frequency tuning
- Efficient heating of many geometries
- Movable workhead; up to 3 m (10’)
- Remote serial operation or logging (optional)
- Field-calibration capable
- Two 3-language display suites
Compact and Light
- Smallest feature-rich 10 kW model
Easy-to-Use
- View set-point, output, frequency and timer
- Self-adjusting for accurate, repeatable results
- Push-button RF control
- Built-in timer, stop-watch
The EASYHEAT has a front panel programmable controller that allows users to define up to four different heating profiles, each with up to five times/power steps.
Options and Accessories
- Heat exchanger or chiller
- Pendant station
- External controller (plc)
- Footswitch
- Start-up assistance
- Serial data interface
- Extended work head cable lengths
- Optical pyrometer (closed-loop temperature control)
Specifications
| SPECIFICATION |
3542 |
5060 |
7590 |
8310 |
UNITS |
| RF Terminal Power |
4.2 |
6 |
9 |
104 |
kW |
| AC Line Power |
5.2 |
7.4 |
11.2 |
12.44 |
kVA |
| Internal AC Line Protection1 |
[25] 15 |
[30] 15 |
[35] 25 |
[35] 25 |
A |
| Frequency |
150-400 |
kHz |
| RF Coil Current |
300-750 |
A max |
| AC Line Voltage3 |
[187-230 or 230-264] 370-440 or 440-520 |
Vac ± 10%, 3Ø |
| Front Panel Display |
2 line x 16 character LCD; displays frequency, power,
setpoint, timer and fault descriptions |
|
| Display Language Suite |
EN, IT, ES, DE, FR |
|
| Serial Communications |
Via RS485 terminal mode |
Optional |
| Timer |
Built in; 10 ms to 10,000 seconds |
|
| Heating Controller |
4 programmable profiles, 5 steps per profile |
|
| RF Rise Time |
<5 |
ms |
| Tune Time |
<5 |
ms |
| Compliance |
CE Marked, 440 models only |
|
| Max Ambient Temp |
45 (115) |
°C (°F) |
| Unit Weight |
28 (50) |
kg (lb) |
| Dimensions |
Unit: 432x610x178 (17x24x7)
Workhead2: 130x286x146 (5.1x11.3x5.7) |
WxDxH
mm (in) |
| WATER COOLING (Sys) |
| Flow |
3.8 (1.0) |
5.7 (1.5) |
l/m (g/m) |
| Max Input Pressure |
5.6 (80) |
Bar (lb/in2) |
| Pressure Differential |
2.8-5.5 (40-80) |
Bar (lb/in2) |
| Max Water Temp |
35 (95) |
°C (°F) |
1) Line levels: [230 V] or 440 V
2) System includes workhead
3) Level determined by model; range factory set per order; field selectable
4) De-rates linearly from 10 kW, 12.4 kVA to 205 Vac to 9.1 kW, 11.3 kVA at 187 Vac
