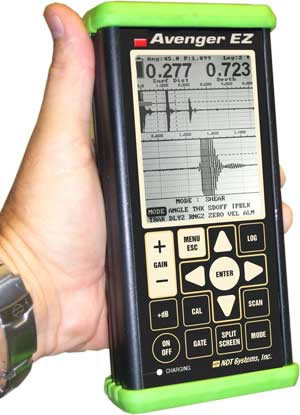

SplitView is Dual Timebase feature allowing the user to view the full range of the area under inspection in one window while at the same time presenting the user with a resizable second window. The second window has a separately adjustable, Range and Delay. The second window can be fixed a a specific place in time or set to automatically track (AutoTrack) an echo over a predefined level. SplitView also provides the ability to resize the top to bottom window proportion. For instance, the top window can be set to 10% of the available active display while the lower window would be 90%.
SplitView can be turned off to use the entire screen for a single large waveform display.
SplitScan is a operating mode allowing the user to view the active waveform while performing a Real Time B-Scan, wether timed or encoded. The feature gives the user positive feedback and identification of indications such as corrosion and pitting in real time.
AutoTrack is a feature where the second window has a separately adjustable, Range and Delay. The second window can be fixed a a specific place in time relative to the main upper window or set to Automatically Track (AutoTrack) an echo over a predefined level. While in AutoTrack, the echo being tracked will display in the center of the lower window regardless of the actual place it is in time. This features allows the user to easily view where on the echo waveform the gage is monitoring in a zoomed fashion.
