Non-Destructive Testing (NDT)

Featured Equipment
The novel N8 HORIZON from Bruker features a compact and innovative vertical instrument design and consequently offers benefits over traditional horizontal SAXS systems such as easy sample handling, convenience, small footprint and low ownership cost.
The 45MG is an innovative ultrasonic thickness gage having additional software options and standard measurement features.
Other Equipment
Malvern Instrument’s Spraytec laser diffraction system enables measurement of spray particle and spray droplet size distribution for effective product development of aerosols and sprays.
The OmniScan MX developed by Olympus is regarded as the most successful portable and modular phased array test instrument.

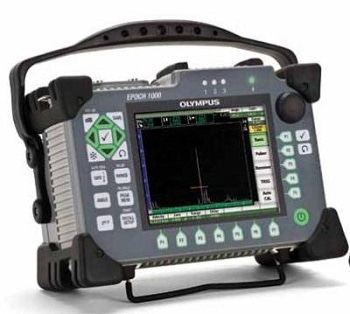

The EPOCH 1000 is an innovative conventional ultrasonic flaw detector. The EPOCH 1000 Series is designed to satisfy the IP66 environmental rating.
Thermo Scientific Niton XL2 analyzer offers high performance and advanced electronics while maintaining the point-and-shoot simplicity that has been the hallmark of all of our XRF instruments. Sealed against moisture and dust with 100% embedded software tools, these analyzers are lightweight yet ruggedly built to withstand the harshest environments - in the field or on the shop floor.
The ETi-200 offers a choice of dual or single probe operation. In the dual probe mode, the ETi-200 have multiplex four channels per probe whereas in a single probe mode up to eight channels are offered.
The iKon-M series includes a 1MP NIR-enhanced Deep Depletion model, suitable for Bose-Einstein Condensation. The unique design of the iKon-M ‘PV Inspector’ allows it to be used exclusively for Photovoltaic Inspection.
PROTEC MINI sheets counter is the table version of PROTEC sheets counter. The optimization of the applied technologies, allowed us to create an easy, compact and economical machine suitable for medium-low production volumes (up to 1,000,000 sheets/month), keeping all the technical features, which make our sheets counters unique in the market.
Photometrics Prime is the first intelligent scientific CMOS (sCMOS) camera to include a robust FPGA-based Embedded Signal Processing™ engine (ESP).
Laser Scan Micrometer LSM-9506 Series 544-Bench Top Type Non-contact Measuring System.
The SyncScan from SIUI is an advanced ultrasonic flaw detector, incorporating the latest advancements in high-performance Phased Array and TOFD dectection into a small and durable instrument. To satisfy numerous inspection requirements, the device can be upgraded with Phased Array and TOFD.
Proceq’s Equotip 550 is a highly versatile device developed for portable hardness testing. The Portable Rockwell test rule follows the conventional Rockwell static test technique which is mainly suitable for scratch-sensitive, thin or polished components as well as for pipes and profiles.
We manufacture our coating thickness gauges for convenience and ease-of-use in addition to accuracy, and design them in a variety of models (handheld, benchtop, multi-purpose).
DELTA Research & Discovery Handheld XRF Analyzers are for elemental analysis of Mg to U, PPM to 100%.
Photon etc. offers the V-EOS widefield hyperspectral camera, which gives complete information about the target with full resolution images at wavelengths ranging from 400 to 1000nm. With a patented design based on volume Bragg gratings, the V-EOSTM redefines spectral analysis and offers a range of monochromatic images at user-specified wavelengths.
INTEGRATED HARDNESS TESTER TH170 is an upgraded new model of TH130.
The VB400 vertical projection comparator enables parts to be conveniently laid on a glass insert in the workstage.
The Series C is an entry-level industrial videoscope from Olympus, which is designed with superior durability, articulation, and optics to obtain high-resolution images.
The X-Cube is a compact X-ray CCD camera which is developed by Hamamatsu. It is capable of capturing X-ray images with high quality.
Hamamatsu offers C7876 X-Ray Image Intensifier Digital Camera Unit which uses beryllium window scanning method.
Supported by a Performance Characteristic Sheet (PCS) documenting no inconclusive readings, no need for substrate correction, and no false positives/false negative readings, the Niton® XLp 300 Series can determine in seconds whether lead is positive (defined by the US EPA as greater than or equal to 1.0 mg/cm2) or negative.
The new Nano-inXider from Xenocs is an extension of the technologies used in the Xeuss 2.0 SAXS/WAXS system, and is specifically designed for characterizing nanomaterials.
The FR-X was designed to be utilized in structural biology and material science, and provides the highest usable X-ray flux available for the laboratory researcher. The new design provides 20% more flux when compared to the previous model and also a new direct-drive anode that reduces maintenance expense considerably.
The GoldXpert is a stylish countertop analyzer suitable for the consumer showroom environment.
The NIRS XDS MasterLab Analyzer, available from Metrohm, is an application-specific NIR system designed for fast non-destructive measurements of liquids, solids and tablets. Based on XDS near-infrared (NIR) technology, the XDS MasterLab can substitute routine tests, speed up the production process, and reduce quarantine time.
The PosiTector 6000 is a rugged, weatherproof coating thickness gauges for accurate measurement of coating thicknesses on all metal substrates.
The LumaCheck Dual UV and White Light Meter is designed with flexible calibration options to provide accurate measurement results. It is a unique system equipped with two sensors and a robust, high quality casing.
Oxford Instruments offers a range of paint and powder coating thickness gauges designed specifically for measuring coating thickness over ferrous and non-ferrous metal substrates.
The Raman Explorer series of multi-channel, multi-spectrum spectrographs has been developed based on Headwall Photonics’ patented, aberration-corrected, retro-reflective concentric design.
The COUNT-WISE IMB combines high speed counting with multi-batching to give you the speed and flexibility you need to compete in today's market. With the touch pad user interface and large back lit display, you can view and edit your batch amounts during any stage of the job with the touch of a button!
LSM 700 is a confocal laser scanning microscope which is suitable for non-tactile measurements of materials samples. It can be accurately and easily operated without tactile contact.
The M51 and M52 portable handheld hardness testers are ideal for testing stacked sheets, rod and tubing on racks and in areas where clearance is limited.
The Centurion NDT Model MX-10 Ultrasonic Thickness Gauge combines the most advanced microprocessor and ultrasonic technology available. The MX-10 is purposely designed compact and lightweight enough to let you hold it in one hand and punch in commands with your thumb.
Sonatest Ltd manufacture Digital Flaw Detectors that set standards in performance and reliability.
Metrohm offers NIRS DS2500, an application-specific analyzer designed for near-infrared analysis. The instrument is compact, easy-to-use, rugged, and IP65 certified. It offers excellent precision across a wide wavelength range of 400 to 2,500nm.
Two portable devices and one sensor have been launched by METTLER TOLEDO as part of their range of dissolved oxygen measurement devices.
The brinell optical scanning system, BOSS enhances the quality control with sophisticated data acquisition and analysis capabilities and determines the brinell impressions faster, more accurately and consistently than ever.
The TEAM™ EDS Analysis System from EDAX is an intuitive analytical solution used for SEM purposes. Combined with the TEAM™ EDS Software Suite, the tool delivers automated workflow functions.

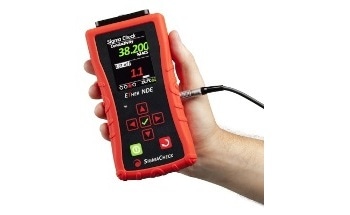

The SigmaCheck Eddy Current Conductivity Meter offers precise conductivity measurements at the same time offering the user consistency, usability, cost-effectiveness and technology. The SigmaCheck is user-friendly and can be easily operated by experts or by a semi-skilled operator.

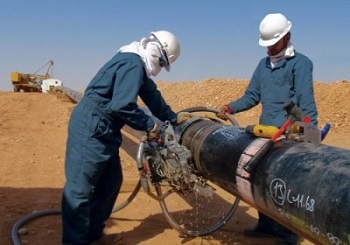

The PipeWIZARD is an automated girth weld inspection system which is suitable for in-site weld-to-weld inspection in extreme environments.
Buehler’s OmniMet™ is designed to perform powerful image analysis coupled with an adjustable database.

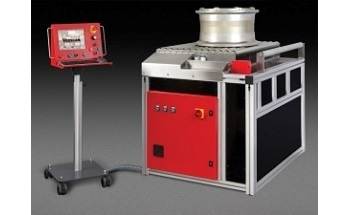

EtherNDE offers the VEESCAN ET Wheel Inspection System, which is available in two models, VEESCAN R and H for optimized productivity and maximum flexibility respectively. The VEESCAN has an established mechanical design and an established record of maintenance-free operation of more than a year.
Photon etc.’s IMA EL hyperspectral microscope is specifically designed for electroluminescence characterization of a wide variety of materials. The instrument is suitable for the analysis of semiconductors and photovoltaic cells.
The T-Cam Compact Hi-Spec scientific CCD Camera permits high resolution imaging of ultra fast events in either ambient or low light environments coupled with instantaneous access to the data. It will provide an invaluable tool to engineers studying aerodynamics and flow mechanics.
The CTS-59 is a compact thickness gauge from SIUI. It is ideal for numerous applications, including corrosion application. The gauge weighs only 0.6 kg including the battery.
The SIM02 Specialised Imaging Multi-Channel Framing Camera, using ultra high-resolution image intensifiers, no-compromise optical design, and double pulsing takes ultra high-speed framing to the next level of flexibility. The SIM02 Specialised Imaging Multi-Channel Framing Cameras offer the ultimate in ultra-high-speed imaging performance to scientists and engineers across all disciplines.
Until now, high performance SAXS measurements were carried out using large facilities like synchrotrons. These machines are capable of achieving low parasitic scattering, high brilliance, high versatility and resolution.
The Handy Hardness Tester model SH-21 differs completely from traditional hardness testers. Instead of measuring the size of the indentation of the test sample using a microscope, it uses a diamond indenter equipped with a vibrating rod that presses on the test surface at a fixed load and then measures its hardness by applying ultrasonic vibrations and analyzing its damping effect.
The mPulse is the first handheld laser induced breakdown spectroscopy (LIBS) analyzer from Oxford Instruments. It is designed for swift sorting of numerous metal alloys with a simple press of a button.
The digital FALCON BLUE EMCD camera model FA285B-CL integrates high sensitivity, speed and high resolution.
The XLS (eXactum Laser Scan Micrometer) series Laser Gauges represent the latest technological development in laser scanning micrometry, featuring record performance.
The Anton Paar Calotest (Compact Calotest (CATc) and Industrial Calotest CATi) is designed to measure coatings that have thicknesses in the range of 0.1 to 50µm.
Metrohm offers an advanced process analysis system called NIRS Analyzer Pro. Based on high resolution diode array technology, the system offers non-destructive analysis of slurries, powders, granules or opalescent substances directly in the process line without bypass.
The iKon-L 936 high dynamic range CCD camera from Andor provides users with superior resolution, sensitivity, field of view, and dynamic range performance.
LSM 710 NLO and LSM 780 NLO are suitable for multiphoton imaging. The 32-channel internal detector is used for simultaneously detecting spectral emission signals of the multi-labeled sample.
Princeton Instruments is pleased to offer GigE Vision data interface for the entire line of MEGAPLUS® cameras. These high-resolution Princeton Instruments cameras, whose resolution ranges from 1.6 to 16 megapixels, are used in some of the most demanding vision applications around the world. The GigE Vision interface enhances the versatility of MEGAPLUS cameras, which also feature Camera Link and FireWire (IEEE 1394a) interfaces.
DELTA Mining & Geochemistry Handheld XRF Analyzers offers instant results to enable determining the next course of action for the entire process including ore grade/process control, exploration and environmental sustainability.
SIUI’s CTS-9009 Plus is designed for digital ultrasonic flaw detection. It is compact, portable, and weight about 1.25 kg, including battery, making the system ideal for aloft and field work.
The MAXXI6 from Oxford Instruments is designed for coating thickness measurement, which is based on X-ray fluorescence (XRF), a well-established analytical method.
Based on Princeton Instruments’ popular deep-cooled PIXIS platform, PIXIS CCD Cameras with eXcelon cameras utilize proprietary eXcelon back-illuminated and deep depletion sensor technology to provide significant improvements in sensitivity and fringe suppression.
The X-MET7000 series handheld XRF analyzer from Oxford Instruments is an easy-to-operate tool designed for elemental analysis in many industries.
Olympus introduces the OmniScan® SX, a flaw detector that benefits from over 20 years of phased array experience and shares the OmniScan DNA.
QImaging Ocular was built from the ground up, and it is the perfect choice to capture images in microscopy. The image capture software provides a clean interface that needs virtually zero learning curve. The performance is responsive with very familiar controls.
Horiba Scientific’s AToR EMCCD is a scientific interline EMCCD camera. The 658x496 sensor size allows for optimum data resolution, and the interline transfer technology enables short integration times sans image smudging as an outcome of the rapid transfer of signal charge to the lightshielded storage column.
Andor's iKon-L 936 [DO] USB X-ray CCD camera is designed with x-ray imaging in mind, an ideal system to interface to vacuum chambers for direct X-ray detection. The 2048 x 2048 array and 13.5µm2 pixels combine to deliver a 27.6 x 27.6mm active image area, TE cooled down to -100°C.
DELTA Consumer Safety & RoHS Handheld XRF Analyzers help in testing large quantities of consumer and electronic products anywhere and anytime.
Hamamatsu offers X-ray Direct CCD Camera which is a structure suitable for irradiating EUV and soft X-ray photons into CCD directly without the need of scintillator.

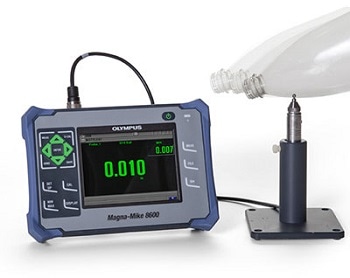

The MagnaMike 8600 is a portable thickness gage which is very simple to operate.
Oxford Instruments offers a range of electroplating and metal coating thickness gauges designed for measuring metallic coatings over ferrous substrates.
Pegasus GC-HRT 4DM is the latest gas chromatography system from LECO. It is an innovative tool that provides users with the remarkable ability to examine complex samples and identify unknown analytes.
The Starrett HB400 horizontal optical comparator offers exceptional performance with a fully-usable 16" diameter viewing screen, a 21"x5" workstage, 12"x6" of stage travel, and high 110lb workload capacity. Linear glass scales provide 0.00002" (0.5µm) of resolution.
The HDV series comprises two models having stage sizes 300x150 or 400x150mm of X-Y stage travel.

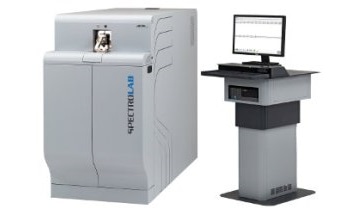

The latest generation of SPECTROLAB OES analyzers from SPECTRO Analytical Instruments offer stability, flexibility, and high performance analytical functionality. The SPECTROLAB analyzers are available in a hybrid configuration with both photomultiplier and CCD detectors (PMT/CCD), or a ground-breaking new all-CCD configuration.

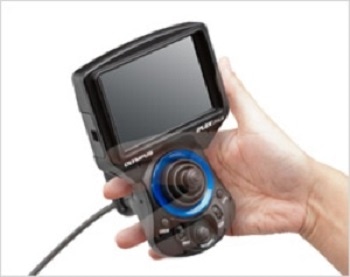

The IPLEX LT Industrial Videoscope is suitable for inspections. It has a weight of about 2.7 kg, and consists of a lithium-ion battery which runs for about 2 h. It is compact and light in weight.
Gas lasers are high performance, low maintenance and highly reliable industrial tools.
Photon etc.’s ZEPHIR camera is a low-cost, deep-cooled SWIR camera that can be operated from 0.8 to 2.6µm. Initially designed for complex faint-flux applications such as hyperspectral imaging, the camera integrates a four-stage TE cooler.
The Micron Tablet-1 is a comprehensive, all-in-one camera and display unit. It features an innovative 2MP camera which is capable of auto balancing the exposure and white balance.
DELTA Environmental Handheld XRF Analyzers are used for testing hazardous levels of priority pollutant, RCRA and hazardous metals in a few seconds.
These hardness testers offer high accuracy, wide measuring range, simple operation, and compact size—all for an economical price! Available with either a separate or integral probe, the testers arrive ready to use. Perform tests and automatically calculate the mean value and convert to Vicker, Brinell, Rockwell, and Shore values.
The OWL SW1.7 CL-640 is a robust, high-sensitivity, digital VIS-SWIR camera. With a 640x512 InGaAs sensor from SCD the OWL enables high sensitivity imaging from 0.4 to 1.7µm.
The new Instron® Precision Series Manual Wedge Grips provide accurate, repeatable, reliable gripping for alignment-sensitive tensile testing applications. They are based on the proven "moving body" approach, where the grip faces move horizontally to ensure minimal induced loads and excellent repeatability. Suitable for testing in compression with the proper adapters, the grips can be used from -80⁰ C to +250⁰ C (-112⁰ F to +482⁰ F) without changing lubricants.
Using ultra high-resolution image intensifiers and no-compromise optical design, takes image quality to the next level in ultra high-speed framing. The Specialised Imaging Multi-Channel Framing Camera offers the ultimate in ultra-high-speed imaging performance to scientists and engineers across all disciplines. The all-new custom optical design offers up to 16 separate channels without compromising on resolution, shading, or parallax
Allied Vision’s Prosilica GT camera series comprises CCD and CMOS sensors with resolutions of up to 29MP and robust thermal housings.
The portable magnetic particle inspection (MPI) bench from Baugh & Weedon is designed to provide exceptional quality and performance. It provides flexibility with a variety of wave form and coil options available.
Using the DELTA Scrap Sorting Handheld XRF Analyzers it is possible to obtain provide reliable ID in 1-2 seconds for most alloy grades and pure metals.
The benches are offered in a range of sizes, a broad variety of magnetizing modes and present waveforms having several accessories and ancillary equipment.
The Micron 5 is an all-round digital microscopy camera equipped with 5MP resolution. It is an ideal instrument for numerous applications in microscopy.
The Starrett-Bytewise Profilometer is as an automated, non-contact measurement system to displace checking with hand tools.
PyLoN™ from Princeton Instruments is a new line of controllerless, cryogenically cooled CCD cameras designed for quantitative spectroscopy applications that demand the highest possible sensitivity.
The CTS-402E from SIUI is designed to handle digital, ultrasonic flaw detection. It offers many functions; including an interface wave tracking function, which enables easy immersion detection or precision measurement through the logic relation between gate A and B.
The On-Line Profilometer (OLP) is a real-time, on-line measurement system for continuously monitoring key profile dimensions in complex tread and sidewall extrusions.
The Micron CoolR is equipped with a superior quality grade Sony ICX285 CCD for handling challenging research applications. The 1.4MP chip provides high refresh rates with versatile capture options and the 6.5µm x 6.5µm pixel size offers excellent light transmission.
TrendTracker is Instron’s new software package for managing and analyzing test results for Bluehill 3 Materials Testing Software.
The Filmetrics F20s are general-purpose film thickness measurement instruments, and are used in thousands of applications worldwide. Thickness and refractive index can be measured in less than a second. Like all of our thickness measurement instruments, the F20 connects to the USB port of your Windows™ computer and sets up in minutes.
The HoloSpec from Andor is the perfect solution for gathering more light and gaining better signal-to-noise ratio in a faster manner, which is vital for applications such as microfluidics, real-time medical diagnosis (point-of-care analyzers), micro-Raman mapping, or stand-off bacteriologic agents or explosives detection.
Allied Vision’s Manta is a versatile GigE vision camera designed with advanced color correction capabilities, three look-up tables (LUTs), and many modular options such as angled heads and board level versions.
The PV Inspector NIR Camera from Andor provides users with exceptional speed and sensitivity performance for in-line electro- and photoluminescence inspection. Its 1024 x 1024 array offers a high resolution 13 µm pixels, and benefits from negligible dark current with thermoelectric cooling down to -70°C.
HORIBA Scientific’s Synapse CCD and EMCCD scientific cameras are designed to assist in highly challenging spectroscopic measurements, ranging from Raman to single molecule spectroscopy.
The Retiga R1™ CCD camera provides the technical features required for a scienfic camera to enhance the quantification and detection limits.
CALIX series is the first LAP product family for thickness measurement in one single sensor housing. They can be used instead of applications consisting of displacement sensors and measuring frame without the need for temperature control and frequent recalibration.
The AV350 CNC vision system offers a granite base, 14" x 14" x 8" travel, Z-axis measuring, powerful MetLogix software control system, 12:1 zoom optics, several LED or fiber optic illumination options, standard machine pedestal and computer cart.
The fully integrated high-performance, thermoelectrically cooled PIXIS-XF camera utilizes a scientific grade 2048 x 2048 pixel CCD for lensless, indirect imaging of X-rays using phosphor screens. Supported under LabView and Linux OS, the camera features a compact single-head design, an easy-to-use USB 2.0 interface, and comes equipped with WinView software.
The EPOCH 600 is a mid-level, handheld ultrasonic flaw detector with a weight of about 1.68 kg. It is durable, simple to operate, and light in weight.
SIUI offers a series of PA probes with different connectors, which can be used with PA equipment developed by other manufacturers. The probes and their features are outlined.
PI's unique VersArray cameras feature large format CCD detectors for wide-area imaging. These high-tech systems also offer the lowest read and dark noise in the industry via cryogenic air cooling.
The OSPREY Scientific CMOS camera model OS4MPc-CL, features a 2kx2k low noise scientific CMOS sensor that is exclusive due to its high resolution, high sensitivity, high speed and high quantum efficiency.
NMR and macromolecular crystallography are two key techniques for extending one’s understanding of structural biology. However, the fact stands that 3D structures derived from NMR and single crystal analysis are difficult to achieve at best and quite often the analyses fail.
The Hawk EMCCD camera is a a compact and highly robust EMCCD camera with a range of digital or analogue outputs and offers a resolution of 658x496 with frame rate of 25 / 30Hz.
The new Mikrotest 7 combines the proven measuring principle of magnetic attraction with digital technology. It offers both high resolution measurement and ease of use. The measurement principle is still based on the attraction force of a permanent magnet on steel as defined in all International Standards.
QImaging provides the perfect tool to obtain rapid, sensitive imaging, and documentation in a completely plug-and-play fashion. The Retiga R6™ CCD camera has a 6.0 MP platform that is capable of fitting more into the field of view. It is suitable for time lapse, tile-and-stitch, and stereo microscopy.
The Industrial Calotest (CATi) is designed to measure the thickness of coatings within two to five minutes. This industrial version has a motor attached to a hydraulic arm, enabling users to target samples of different sizes.
Oxford-Instruments’ X-MET8000 is a handheld XRF analyzer that offers speed and performance to match even highly challenging applications by using the combination of a large area silicon-drift detector (SDD) and a high performance X-ray tube.
Laser micrometers are designed for non-contact measurement and control of position and dimensoins (diameter, thickness, gaps) of technological objects as well as for measuring levels of liquid and bulk materials .
SIUI provide a series of crawlers for rail flaw detection. There are five different types of crawlers, and each type is outlined below.
The MAX300-AIR is an advanced industrial gas analyzer specifically developed for environmental monitoring and regulatory compliance. A single analyzer is capable of measuring unlimited compounds and it can be automated to track more than 160 sample points, spread across the production site.
Labthink offers mechanical contacting-based i-Thickness 4400 Auto-Feed Thickness Tester that comes with an auto sample feeding system.
Raptor Photonics offers the KI247-CL digital KITE EMCCD camera that has excellent resolution, speed and sensitivity.

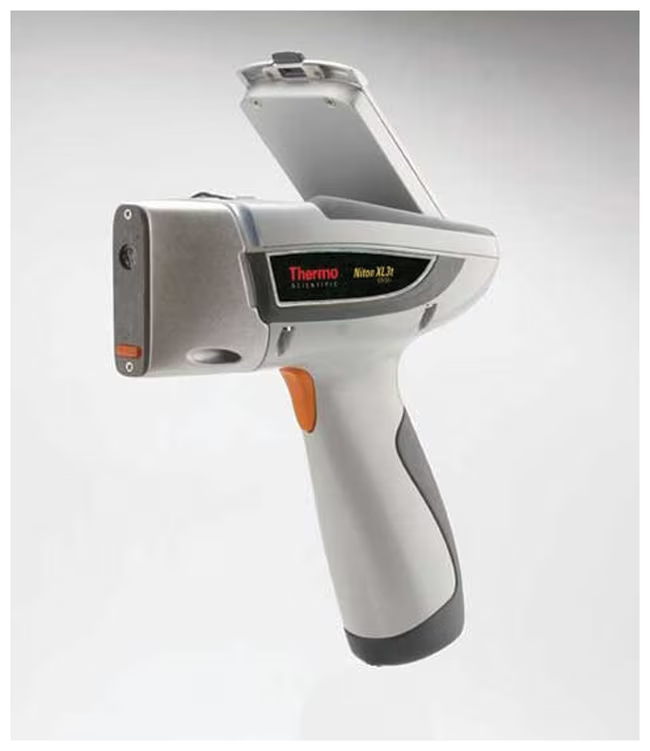

The Thermo Scientific Niton XL3t x-ray tube-based x-ray fluorescence (XRF) analyzer with GOLDD™ technology is purpose-built for your most demanding applications. Where low detection limits and high sample throughput are critical, our combination of hardware, software, and direct industry experience are combined to provide you with a solution to your most difficult analytical requirements.
LECO’s 832 series is designed to simplify determination of sulfur and carbon in an array of organic materials. The company has constructed this series taking into consideration the general customer feedback as well as innovative engineering.
SplitView is Dual Timebase feature allowing the user to view the full range of the area under inspection in one window while at the same time presenting the user with a resizable second window.
The i-Gastra 7100 gas permeability tester from Labthink is designed to analyze gas transmission rate of high barrier materials, aluminum foils, sheeting and films.
The TEAM™ EBSD analysis system is integrated with the smooth operation of the TEAM™ software with the analytical power of OIM™ to offer state-of-the-art characterization of crystal structures.
The 38DLP is an innovative ultrasonic thickness gage with a weight of about 0.814 kg. It is easy to operate, rugged and compact, and is suitable for ultrasonic thickness application.
Oxford Instruments provides a range of PCB and copper coating thickness gauges designed for non-destructive thickness measurement of foil, laminate, surface and through-hole copper for PCD assemblers and manufacturers.

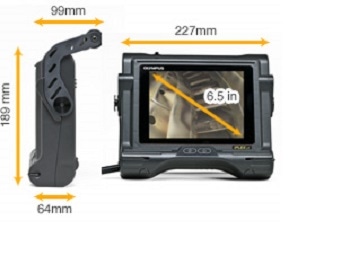

The IPLEX UltraLite Industrial Videoscope is used for capturing images with high quality. It has a weight of about 700 g, and is compact and durable, and hence it can be used in confined and tough areas.
The LF210 Laser Autofocus system from Prior Scientific can be used with a variety of reflective samples, including hard disc drive platens and semiconductor wafers.
The FlawInspecta was designed to address the requirement for a rapid, low-cost, ultrasonic phased array inspection system. The real-time data acquisition and processing technology used for B and C-scan imaging means that the full-waveform can be acquired without compromising inspection speed.
Lake Shore’s new 8500 Series CW-THz material characterization system makes use of non-contact, non-destructive THz energy to determine important phenomena in novel electronic and magnetic materials being explored for high-speed computing, storage, imaging and communications applications.
Andor’s Newton CCD and EMCCD spectroscopy detectors have been designed specifically for fast and low-light spectroscopic applications.
The MAXXI 5 benchtop coating thickness and material analyzer is part of the Eco series. The Eco series from Oxford Instruments comprises the COMPACT Eco, MAXXI Eco and MAXXI 5, which are all based on X-ray fluorescence technology (XRF).
After launching the Kingfisher CCD, Raptor has launched a deep-cooled vacuum version of the same camera.
The USM Go is the lightest and most portable ultrasonic flaw detector available from GE. The USM Go is designed for ease of prolonged operation in the harshest inspection environments in the oil and gas, aerospace, power generation and automotive industries.
The iDus spectroscopy CCD camera from Andor is the world's most compact and reliable spectroscopy CCD. It is designed with the lowest noise to offer an ultra sensitive and high dynamic range detector for use in a broad range of both traditional and challenging spectroscopic applications, such as Raman, fluorescence, absorption/transmission/reflection and atomic emission.
The UltraWave LRT uses guided wave technology and excites low-frequency ultrasonic waves that travel lengthwise over tens of meters along a pipe, detecting wall thickness variations.
Integrated probe for measurements on ferrous and non-ferrous materials, with automatic substrate recognition.
The advanced high-performance, fully integrated, 4-port readout, thermoelectrically cooled Quad-RO: 4096 camera with electronically balanced quadrants, dual speed readout, on board memory to guarantee images w/o losses, capability to read images at 4-port or single port and industry standard firewire (IEEE 1394a) interface is designed for indirect imaging of X-rays or other Lambertian sources.
The Nova TG110-DL defines the standard for performance and value in Ultrasonic Thickness Gages. It would be difficult, if not impossible to find a gage offering the long list of STANDARD features the TG110-DL does. For about the price of the competition's current fixed velocity, entry level Gage, NDT Systems is offering a fully loaded thickness gage.
The completely new, entry-level TH-1100, offers a very affordable but accurate hardness testing solution for on-site testing in workshops and in field operation. The unit assures accurate and reliable measurement.
The SIR3 series of cameras from Specialised Imaging are compact, lightweight and robust, making them ideally suited for the harsh indoor and outdoor environments associated with proofing ground and industrial use.
The RailRover supplied by SIUI is designed to handle digital ultrasonic flaw detection of rails. It has nine individual ultrasonic transmit/receive channels for rail testing, a GPS location system, and DAC on all probes.
The SPECTROTEST is a portable arc spark spectrometer that is suitable various applications in the metal manufacturing, metal processing and metal recycling sectors.
HORIBA’s EFiS UV EMCCD is a scientific frame transfer EMCCD camera. The 1004x1002 sensor size helps to facilitate the most advantageous data resolution. Additionally, the frame transfer technology eliminates the need for shuttering of the incident light.
The high energy detection platforms from Andor have a long lifetime and are user-friendly. All of the systems can be integrated swiftly and directly into the core of an experimental setup. The high energy camera detection systems are suitable for a number of spectroscopy and imaging applications.
SIUI offers CTS-9005, a compact and portable system designed for digital ultrasonic flaw detection. The overall weight of the system with the battery is approximately 1.15kg and it is ideal for aloft and field work. The CTS-9005 is easy to use as it has only a few well-defined keys that can be operated with just one hand.
The Mecline is a multiple diameter laser micrometer system, specifically designed to check parts machined on N.C. lathes or to be used in automatic inspection equipment, where robot handling devices move the component to selected gauging positions.
The 1200 series offers conventional laser micrometers with the precision of a fine measurement shop suitable for use in manufacturing applications.
Calotest is used to determine the thickness of a coating. The Compact Calotest (CATc) is designed to determine coatings with thicknesses ranging between 0.1 µm and 50 µm.
The advanced high-sensitivity, thermoelectrically cooled family of PIXIS-XO camera systems is designed with special back-illuminated CCDs without anti-reflection coating for direct imaging of very low energy X-rays (< 30 eV). The rotatable conflat flange design provides ultra-high vacuum hard metal seals with ability to align the CCD.
Qimaging's optiMOS is a high-framerate, now-noise, budget friendly sCMOS camera. As an affordable sCMOS solution, optiMOS brings the advantages of low noise and high speed imaging to a broader range of applications.
Profile360 is a real-time, in-line, non-contact measurement system for continuous monitoring of key profile dimensions in complex shapes such as rubber, ceramic, plastic, and wood-plastic composite extrusions, roll-formed metal profiles, and profiled wire.
The BTX Benchtop XRD System is a quick, economical, benchtop XRD for full phase ID of minor, major and trace components as well as quick XRF scan of elements Ca to U.
Featuring a high-performance thermoelectrically cooled detector, 80 MHz real-time digital signal processing, and dual state-of-the-art embedded processors for computation, data storage, communication, and other functions, the Niton XL3t incorporates many new features directly benefiting the customer. From the integrated, tilting, color, touch-screen display to the customizable menus for ease of use, these ergonomic analyzers are both lightweight and ruggedly constructed, traits you will appreciate in the field.
The SPECTROMAXx stationary metal analyzer is used mainly for material testing in foundries and for incoming and outgoing inspections in the metal industry around the world. It determines all of the elements used in the metal industry, including trace analysis of carbon, phosphorous, sulfur and nitrogen.
Allied Vision’s Mako is a type of GigE vision camera constructed with a compact and tough industrial housing.
The Xactum XLS 40 Laser Sensors represent a quantum leap in laser micrometer technology. Digital Signal Processing (DSP) accuracies never before achieved are now available. No other laser micrometer on the market today is as advanced.
The new SPECTRO xSORT is designed for high-throughput elemental testing and spectrochemical analysis of a wide range of metals and other materials in the field. Its speed, accuracy and ease of use set new benchmarks for handheld spectrometric performance.
The X-MET8000 handheld XRF analyzer from Oxford Instruments provides on-site, non-destructive analysis of a wide range of products from raw polymers, metal parts to highly-reliable electronic components.
Inline photoluminescence tool is a rapid and reliable solution for non-destructive measurement of wafer and cell quality at any stage of processing from as-cut wafers to finished cells. The tool offers full control of material quality during production.
The high energy camera detection systems from Andor are suitable for a number of spectroscopy and imaging applications, including medical research, material analysis, and cell structure studies.
optoCONTROL 2600 is a LED based micrometer with an integral high resolution CCD camera for geometrical measurements. LED technology and the lack of mechanical components provide an extremely long service life.
The Quadraline family of laser diameter micrometers are suitable for on-line measurement of any continuously extruded or rolled product with shape or form.
Ten thousands of ODAC® measuring heads have been in use successfully for over 30 years. From international conglomerates to the small manufacturing company, ODAC® instruments are being used in multiple industries, contributing to their financial success and continuously adding to a comprehensive reference list.
The Lumazon is a white light and dual LED UV battery-powered lamp for dye-penetrant and magnetic particle inspection.
The Ames Hardness Tester for Rockwell testing has been giving repeatable accurate measurements in large and small plants around the world for over 50 years. The light weight and portability of the Ames hardness tester saves time and money by providing Rockwell test results quickly, anywhere.
This hardness tester can be used in variety of applications and is readily adjustable to a wide range of sizes and shapes which are difficult to test in a standard table model hardness tester.
The 3816 Bench Hardness Tester offers easy, fully automated testing procedures and provides highly sensitive and accurate readings.
Allied Vision offers the Goldeye short-wave infrared (SWIR) cameras which feature an advanced scientific design, with a nitrogen gas-filled cooling chamber option and a compact sturdy industrial design without a fan.
For benchtop analytical power with easy portability, a closed-beam, field-rugged X-5000 is offered by Olympus that can work in virtually any environment.
Elvatech is proud to introduce The ElvaX ProSpector, the latest XRF system to join our family of handheld XRF Analyzers.
There are a number of parameters that have to be determined accurately when performing quality control of liquids in laboratories. This includes the determination of many values; to control quality, verify, identity, and achieve specifications such as refractive index, density, and pH of raw material, intermediate and finished products.
Nanostructured samples and materials can be efficiently and reliable characterized using Anton Paar’s SAXSpace small- and wide-angle X-ray scattering (SWAXS) system.
The iRiS is a 4.2 MP scientific CMOS camera from Horiba. The size of the sensor (2048x2048) allows a large field of view and exceptional image resolution. The camera is Peltier cooled and thus enables low dark current.
X-ray Time Delay Integration (TDI) camera C12200-321 is suitable for use in in-line applications which involve high-speed operation with high sensitivity.
Photon etc. offers IMA PL, a fast and all-in-one hyperspectral microscope that is suitable for the analysis of solar cells and other advanced materials. The instrument offers excellent image and data quality.
The SUPOR is a new generation of ultrasonic flaw detector, and it showcases the fine tradition of SIUI including; innovative technology, advanced process, small size, lightweight, powerful functions and easy operation.
DELTA Alloys & Metals Handheld XRF Analyzers offer highly specific material chemistry to rapidly and precisely determine alloy grades and pure metals.
The Retiga R3™ CCD camera is a 2.8 MP platform that improves the quality of overview images, The camera can carry out signal binning for high magnification work, or for work requiring increased sensitivity. This camera is best suited for live or fixed, time lapse or slide scanning.
