It is crucial to monitor particle contamination in lubrication and fuel systems to prevent the wear and failure. Legacy methods for particle size analysis, like light obscuration, assume that particles are spherical and, therefore, only provide data for size distribution.
However, the ASTM D7596-14 particle test method introduces Dynamic Image Analysis (DIA), a more advanced approach that characterizes both the shape and size of particles, offering a more accurate assessment of contamination and wear debris.
Limitations of Traditional Particle Size Analyzers
- Only size is measured: Legacy techniques – such as those guided by calibration using ISO 11171 Light Obscuration – measure the size of particles, but do not account for variations in shape.
- False readings: Irregularly shaped particles can often be misclassified, causing inaccurate contamination levels.
- Limited analysis of root cause: Without shape data, it becomes challenging to distinguish between air bubbles, contaminants, and wear debris.
ASTM D7596-14: The Solution for Comprehensive Particle Analysis
The ASTM D7596-14 standard defines a new methodology for Dynamic Image Analysis (DIA), which takes high-resolution images of particles in real time. This method provides:
- Precise shape and size analysis: Identifies particle morphology, which enables better classification.
- Enhanced contaminant differentiation: Distinguishes metal wear particles from soft contaminants, silica, and fibers.
- Reliable lubrication and fuel monitoring: Aids compliance with industry cleanliness standards.
The Particle Insight Raptor: A Next-Generation Solution
Image Credit: Vision Analytical Inc.

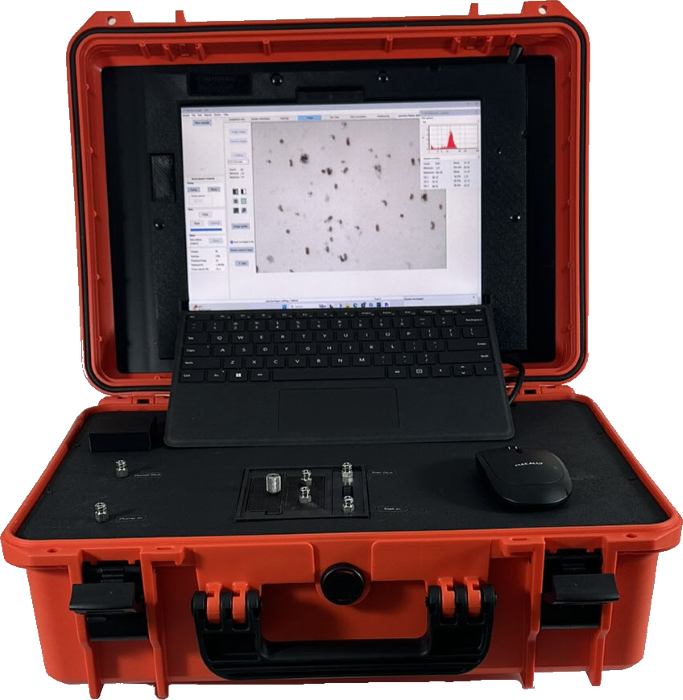

The Particle Insight Raptor from Vision Analytical is a state-of-the-art DIA designed to meet and exceed ASTM D7596-14 requirements. Unlike traditional size-only methods, the Raptor delivers:
- Real-time particle imaging and analysis: Identifies sources of contamination instantly.
- Automated classification of particles: Differentiates between fibers, sand, metallic debris, and other contaminants from one micron to 300 microns in size.
- Advanced reporting and compliance: Provides in-depth reports for ISO and ASTM standards for cleanliness.
- High-resolution thumbnail images: Particle thumbnails provide objective evidence for all measured particles, ranging from 1–300 μm.
Applications of ASTM D7596-14 Analysis
- Hydraulic fluid monitoring: Prevent premature failure of equipment and identify any problems without an expert. Thumbnail images are provided for all particles.
- Diesel and aviation fuel testing: Ensure that fuel quality meets industry regulations.
- Lubrication oil condition monitoring: Detect early signs of wear and contamination.
Why Choose Dynamic Image Analysis Over Light Obscuration?
Source: Vision Analytical Inc.
| Feature |
Light Obscuration (ISO 11171) |
Dynamic Image Analysis (ASTM D7596-14) |
| Measures Particle Size |
 Yes |
Yes |
| Measures Particle Shape |
 No |
Yes |
| Differentiates Wear Debris |
No |
Yes |
| Identifies Contaminant Type |
No |
Yes |
| Provides Image of Particles |
No |
Yes |
Optimize Your Oil and Fuel Analysis with the Raptor
Accurate particle size and shape analysis ensures superior contamination control, thereby reducing maintenance costs and improving system efficiency.
This information has been sourced, reviewed and adapted from materials provided by Vision Analytical Inc.
For more information on this source, please visit Vision Analytical Inc.
