Laminated glass and lead glass serve fundamentally different purposes. Confusion between the two often leads to incorrect specifications and failed shielding performance.

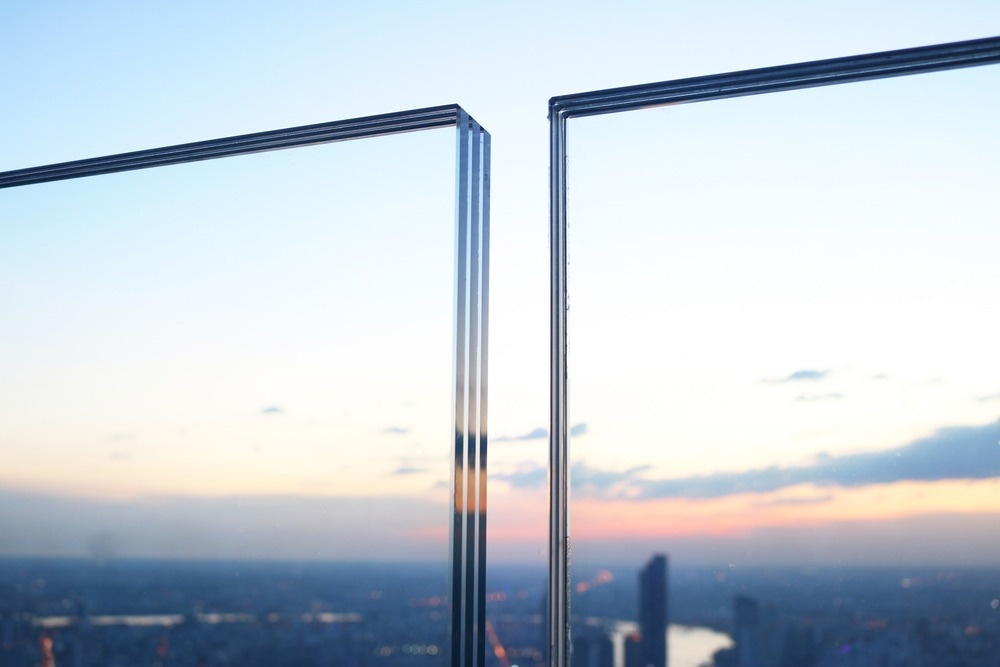

Image Credit: Salazar Benjamin/Shutterstock.com
Lead glass is designed to provide radiation protection while maintaining visibility. Laminated glass is designed for safety and impact resistance, not radiation shielding.
In some cases, laminated configurations are used in combination with lead glass, but they do not replace it.
For a full overview of lead glass types, product specifications, and system coordination guidance, visit our detailed guide: Lead Glass for Radiation-Shielded Viewing Windows.
Why Do Projects Mistakenly Specify Laminated Glass for Radiation Shielding?
This issue typically stems from assumptions carried over from standard architectural glazing.
Common misconceptions include:
- Assuming all thick or layered glass provides radiation protection
- Treating safety glazing requirements as equivalent to shielding requirements
- Overlooking the role of material density in radiation protection
These assumptions are incorrect. Radiation protection depends on material composition and density, not just thickness or layering.
What Does Laminated Glass Actually Do?
Laminated glass consists of multiple layers bonded with an interlayer, typically for safety purposes.
Its primary functions include:
- Impact resistance
- Shatter containment
- Compliance with safety glazing codes
It is commonly used in:
- Doors
- Windows in high-traffic areas
- Overhead glazing
However, laminated glass does not provide meaningful radiation protection unless it incorporates a shielding material such as lead glass.
Can Laminated Glass Be Used in Radiation Shielding Systems?
Yes, but only as part of a combined system.
Laminated configurations may include:
- Lead glass with safety lamination
- Multi-layer assemblies where lead glass is one component
In these cases, the lamination enhances safety but does not replace the shielding function.
The key distinction is:
- Lead glass provides radiation protection
- Lamination provides impact resistance
They address different risks.
What Are the Risks of Substituting Laminated Glass for Lead Glass?
Substitution without proper evaluation leads to predictable failures.
1. Failed Radiation Inspections
Laminated glass without shielding properties will not meet the required performance levels.
2. Rework and Project Delays
Incorrect installations often require removal and replacement, which can affect timelines.
3. Compliance Issues
Facilities may fail to meet regulatory requirements for radiation protection.
4. False Sense of Security
Visually similar materials can mask underlying performance deficiencies.
How Should Laminated and Lead Glass Be Coordinated in a System?
When both are required, coordination is critical.
Key Considerations:
1. Shielding Continuity
The lead glass component must align with the wall and frame shielding levels.
2. Thickness and Weight
Laminated assemblies increase overall thickness and weight, affecting:
- Frame design
- Installation methods
- Structural support
3. Edge Conditions
Lamination layers must be properly sealed and integrated to avoid:
- Delamination
- Moisture ingress
- Long-term degradation
4. Code Compliance
Safety glazing requirements must be balanced with radiation shielding requirements. These are often governed by different standards.
Where is Laminated Lead Glass Most Appropriate?
Laminated lead glass is typically used where both safety and shielding are required.
Examples include:
- Door vision panels
- Public-facing control room windows
- Mobile shielding barriers
- High-traffic healthcare environments
In these scenarios, impact resistance becomes as important as shielding performance.
What System-Level Factors Influence the Choice Between Laminated and Non-Laminated Lead Glass?
The decision is rarely about the glass alone.
Influencing factors include:
- Room function and occupancy
- Risk of impact or human contact
- Regulatory safety glazing requirements
- Installation constraints
- Maintenance expectations
A coordinated approach evaluates all of these factors together.
How Do Installation and Handling Differ Between the Two?
Laminated assemblies introduce additional complexity.
Handling Considerations:
- Increased weight requires specialized lifting
- Greater thickness affects tolerances
- Edges are more sensitive to damage
Installation Considerations:
- Frames must accommodate added thickness
- Sealants and gaskets must be compatible
- Alignment is more critical to avoid stress points
Failure to account for these factors often results in installation issues.
Who Should Make the Decision Between Laminated and Non-Laminated Systems?
This decision should involve multiple stakeholders:
- Radiation physicists
- Architects
- Safety consultants
- Contractors
Relying on a single discipline increases the risk of oversight.
What are the Key Takeaways when Comparing Laminated Glass and Lead Glass?
- Laminated glass does not provide radiation protection on its own.
- Lead glass is required for shielding performance.
- Lamination can enhance safety, but it must be integrated correctly.
- Substitution errors are common and lead to inspection failures.
- System coordination determines overall success.
Understanding the distinction is critical. Radiation shielding is a system problem, not a material selection exercise.
